4.16 Configuration of the Service Center
4.16.1 Overview
You can permanently adapt the settings for the backup and restoration of disk images (Service
Center (Page 121) component) in the "Service Center Backup/Restore" dialog box:
● Configuration of the network adapter (Page 64)
● Configuration of the host (Page 65)
Adaptations that you make here are stored in the servicesystem.ini configuration file.
You can also adapt the settings directly in the associated configuration files:
● servicesystem.ini
● Additional settings: ghost.ini
You can also view the log files of the Service Center or restart the PC system in the Service
Center in the "Service Center Backup/Restore" dialog box.
To open the dialog box, click the ServiceCenter Backup-Restore icon on the Desktop.

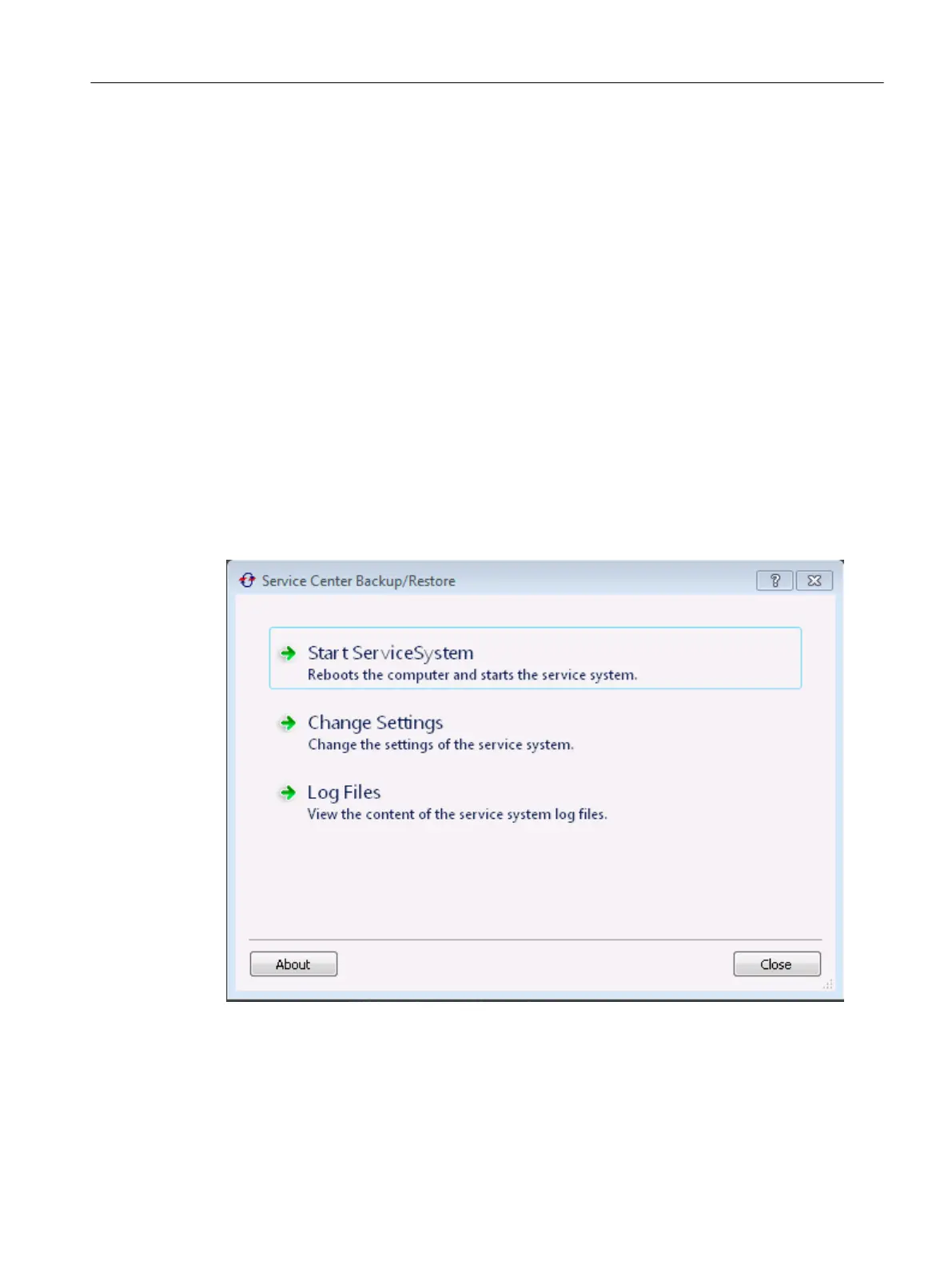

Figure 4-2 ServiceCenter Backup/Restore
Configuration of the system
4.16 Configuration of the Service Center
PCU Base Software (IM10)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 63
