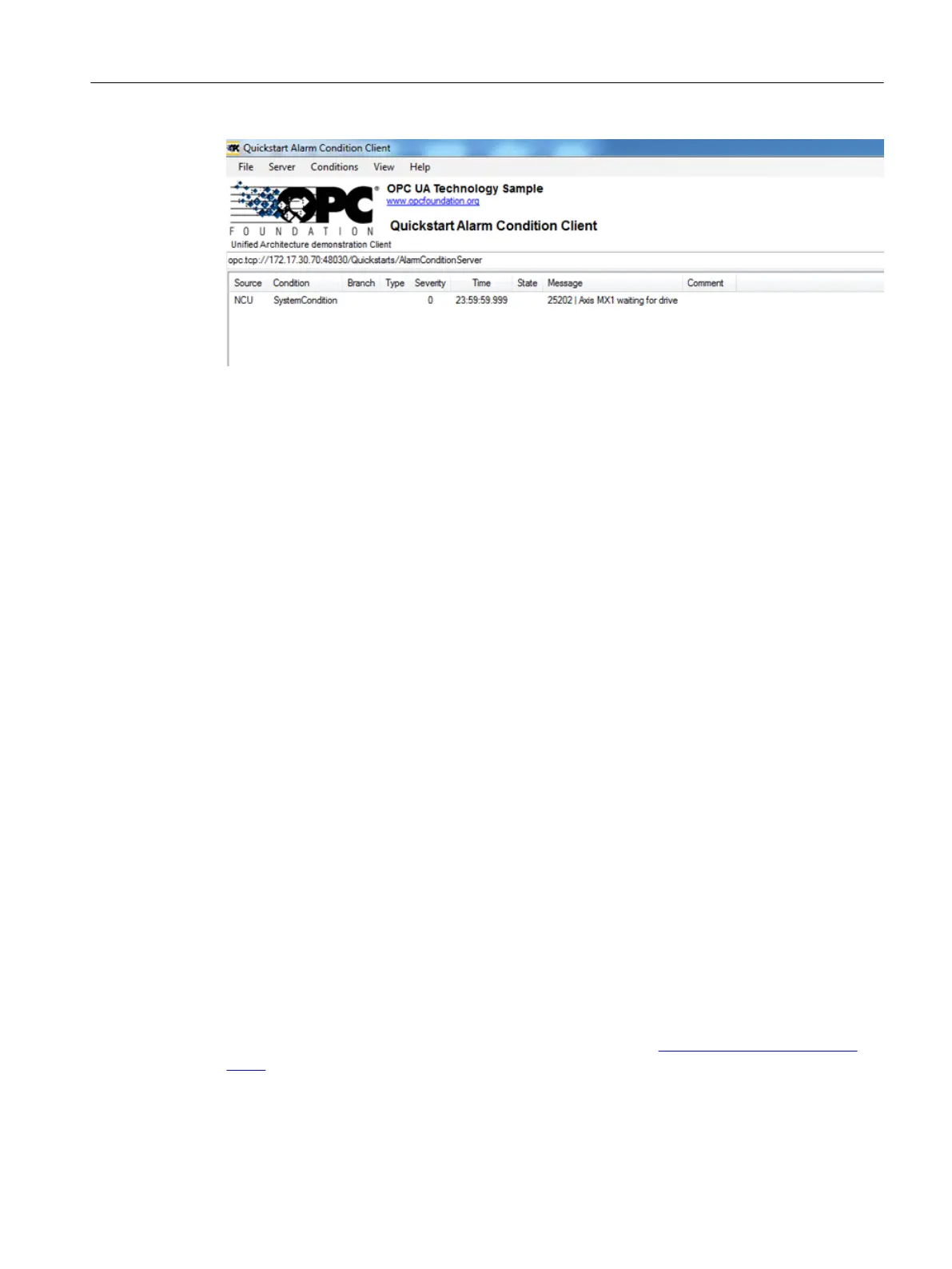

Figure 5-5 Alarm List
Unsubscribe to alarms
1. Click "Conditions > Set Area Filter…". The "Select Area" window appears.
2. Right click on "Sinumerik" and select "Remove Monitored Item" to unsubscribe the server
from the Quickstart Alarm Condition Client.
5.4.3 SINUMERIK Alarm object
5.4.3.1 Description
Every variable or object in the address space of an OPC UA Server is called a node. Every
node has a server unique node id, its symbolic name, addressing information inside the
address model and some other attributes.
Events are by themselves not visible as nodes in the address space. They can only be received
via objects. Not all objects can signal events. Whether an object can signal events is specified
at the object by the EventNotifier attribute. Only objects where this attribute has been set can
be specified in the Event Monitored Item and received in Clients Events.
The Server Object serves as root notifier, that is, its EventNotifier Attribute shall be set providing
Events. However Server object will not be allowed to subscribe for the Events. Only the
"Sinumerik" Object node is accessible and can subscribe to the events.
5.4.3.2 OPC UA event messages and alarms
Event types
The SINUMERIK Alarm object is of the “CNCAlarmType” which is defined in the Companion
Specification “OPC UA Information Model for CNC Systems (
http://opcfoundation.org/UA/
CNC/)”.
The root of the derivation hierarchy is the BaseEventType. The types for Alarms and Conditions
are available below the ConditionType. The Application-specific event types such as
CncAlarmType can be derived. The CncAlarmType extends the DiscreteAlarmType.
Functionality
5.4 Alarms
SINUMERIK Integrate for Engineering Access MyMachine / OPC UA
Configuration Manual, 12/2017, 6FC5397-1DP40-6BA1 47
