4.16.2 Configuration of the network adapter
You can make the network settings in the "Adapter Settings" tab and permanently save this
configuration, in contrast to the settings in the "Network Settings" dialog box of the Service
Center (Page 125).
Settings that you make in this dialog box are stored in the servicesystem.ini configuration
file.
Overview
You can make the following IP settings in the "Adapter Settings" dialog box:

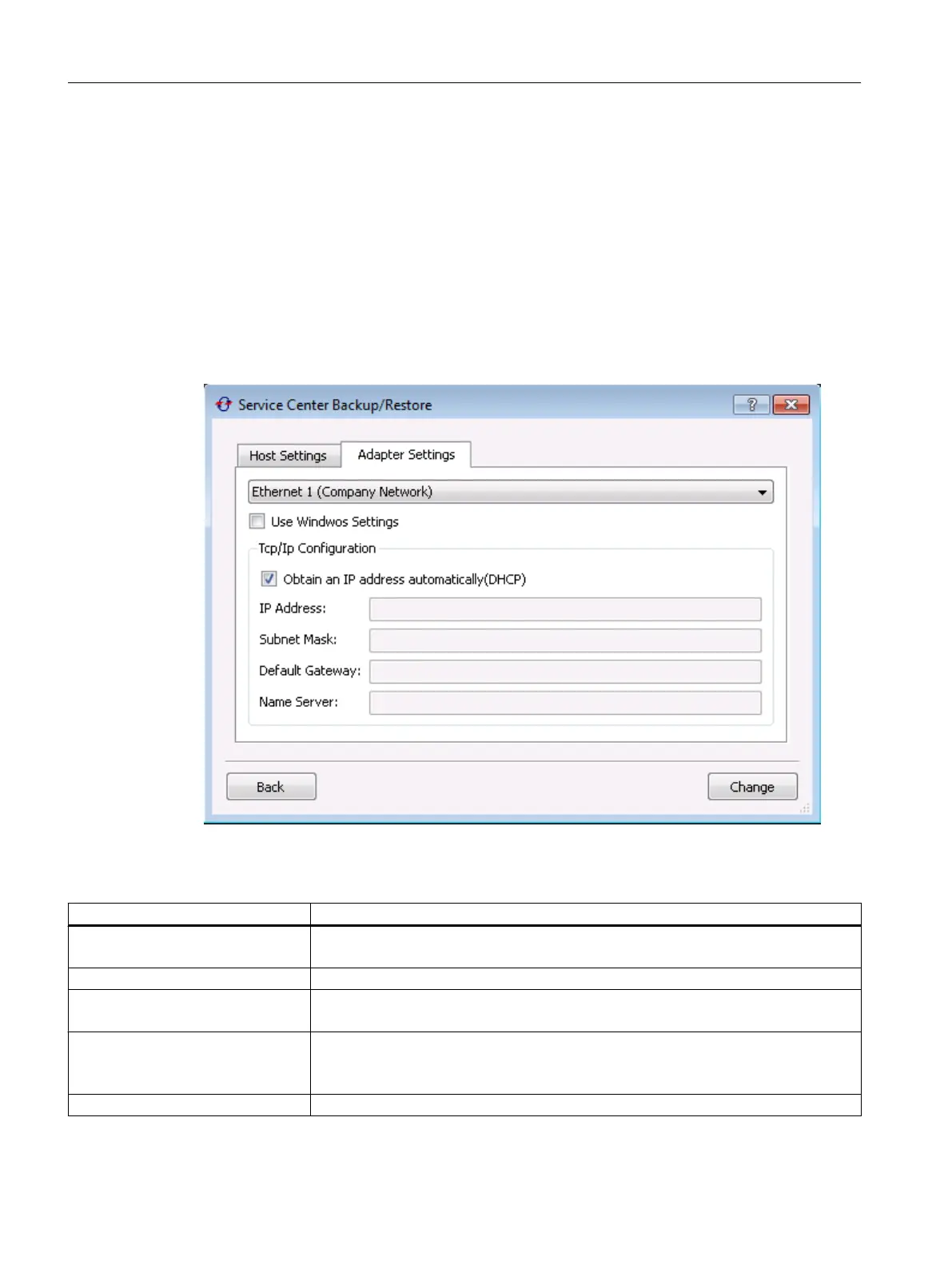

Figure 4-3 Adapter settings - Ethernet 1 (company network)
Table 4-4 Settings in the "Adapter Settings" dialog box
Settings Purpose
Adapter Select the Ethernet interface that you want to configure.
All settings in this dialog box refer to the selected Ethernet interface.
Use Windows Settings Select whether the values set in the Control Panel are to be used.
Obtain an IP address automatically
(DHCP)
Select whether the addresses are to be fetched dynamically from the DHCP server.
If the checkbox is deactivated, you must make the settings manually.
IP Address Set the IP address of the NCU.
You can specify an IP address from the following range:
192.168.214.250 - 254
Subnet Mask Specify a subnet mask, e.g. 255.255.255.0
