Installing the complete backup
Procedure:
1. In the main menu, select the menu item "Restore NCU Software and Data".
The following menu is displayed:

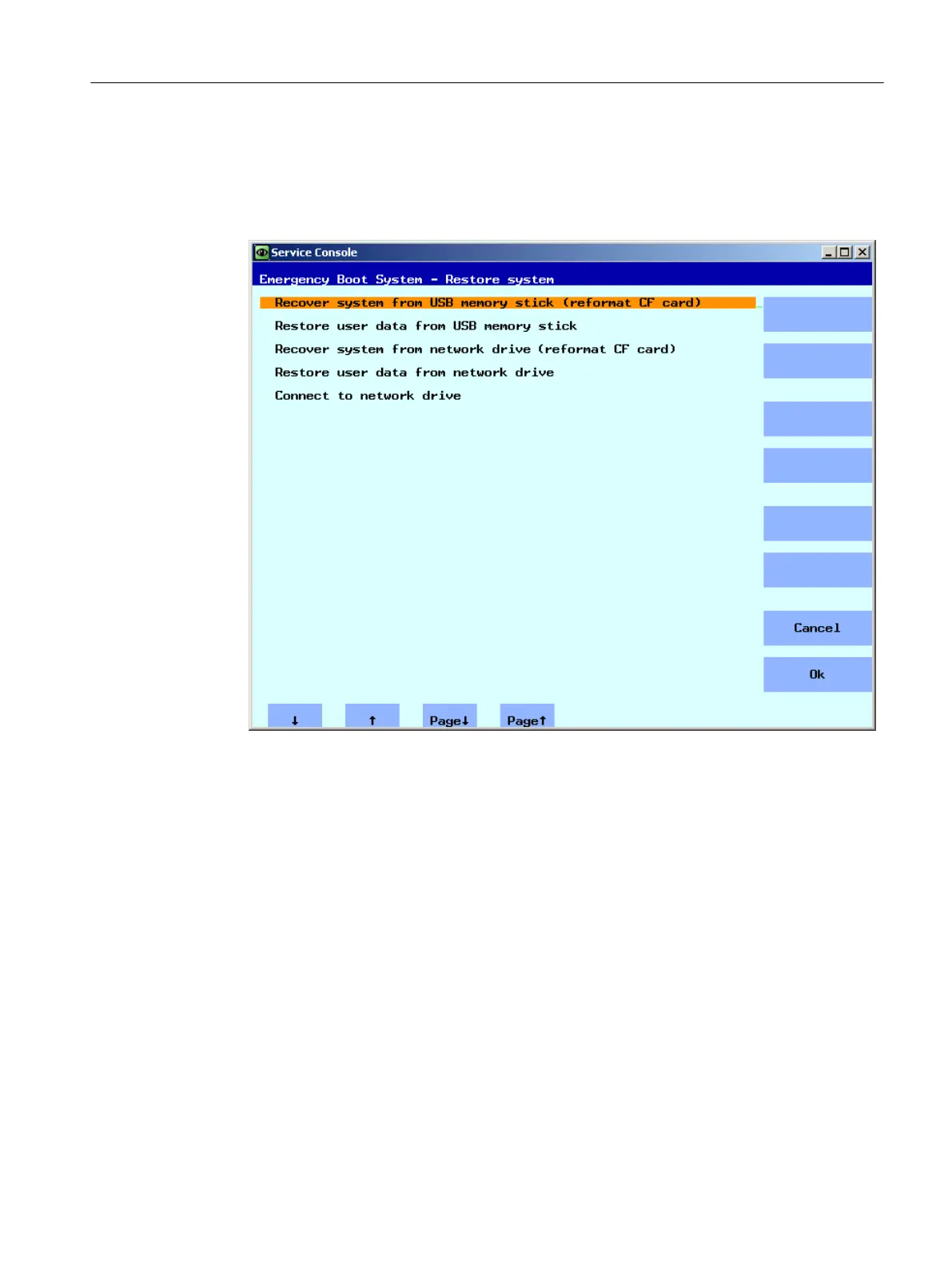

Figure 3-10 Restore system
2. Select the menu item "Recover system from USB memory stick (reformat CF card)" and
confirm with "Ok".
The list of the tgz files available on the USB storage medium are displayed.
3. Select the appropriate tgz file and confirm with "Ok".
A message is output after the operation has been successfully completed.
Completion
The system must be restarted in order that the new data become effective.
See also
The procedure for "Recover system from network drive (reformat CF card)" is essentially the
same. In addition, you connect to a network drive:
This is how you connect to a network drive (Page 67)
Service and diagnostics
3.3 Backup data via the service menu
NCU operating system
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 79
