5RWDU\D[LV$
&ODPSLQJ
&ODPSLQJ
&ODPSLQJ
&ODPSLQJ
0DFKLQHWDEOH
<
=

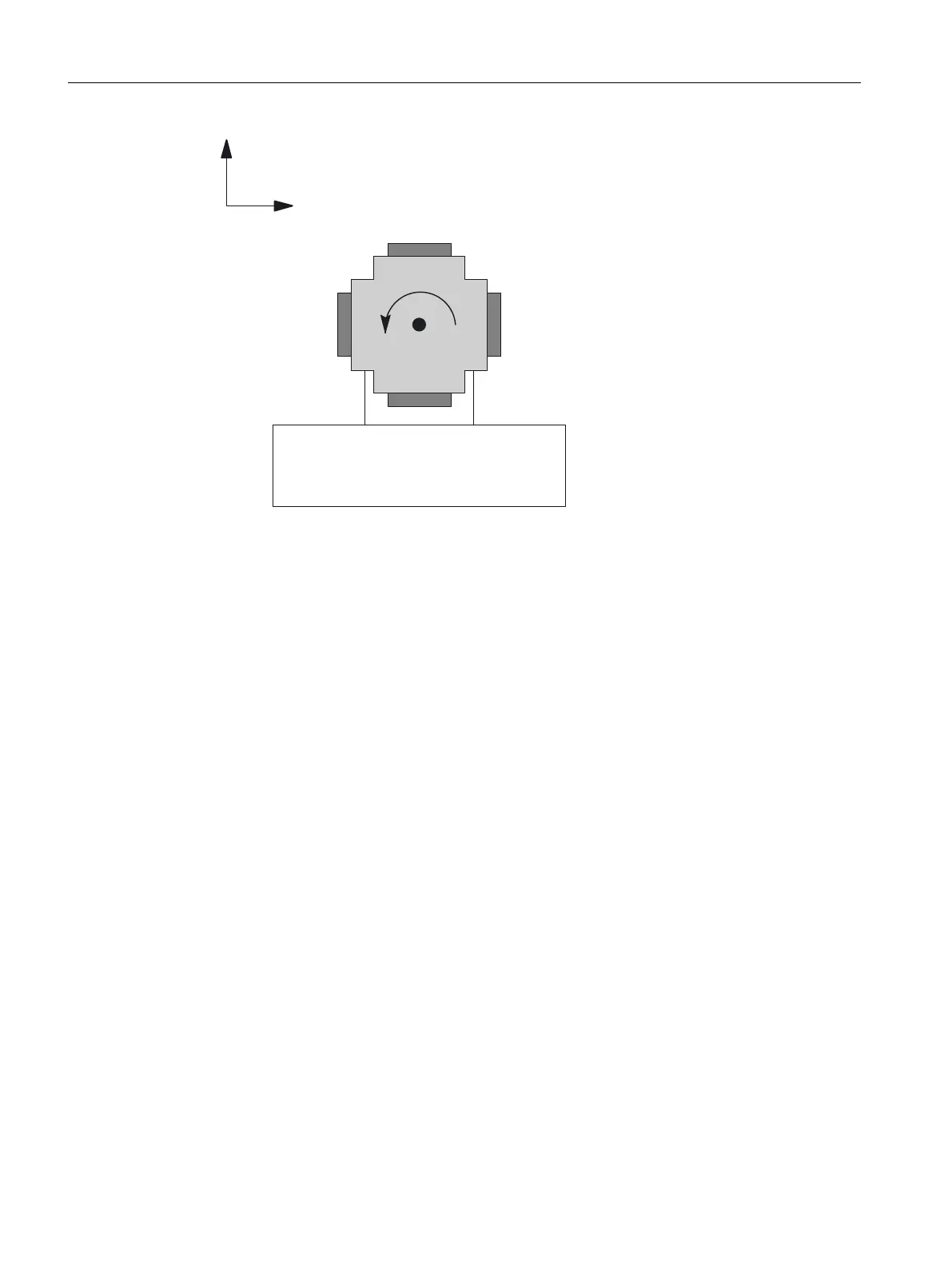

Figure 21-3 Rotating clamping device (reversible clamping device)
The cycle CLAMP.SPF must be adapted as follows:
...
DEF INT _NV ; Auxiliary variable
;––––––––––––––––––––––––––––––––––––
;Adaptation
;
IF _ACT==1
G0 A=DC(0)
ENDIF
;
IF _ACT==2
G0 A=DC(90)
ENDIF
;
IF _ACT==3
G0 A=DC(180)
ENDIF
;
IF _ACT==4
G0 A=DC(270)
ENDIF
Technologies and cycles
21.4 Milling
SINUMERIK Operate (IM9)
528 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
