5HIHUHQFHSRLQWRI
WKHPDFKLQH
0.6;<=
5RWDU\D[LV&
5RWDU\D[LV$
O
O\
O
O\
O
9
=
<
;
9

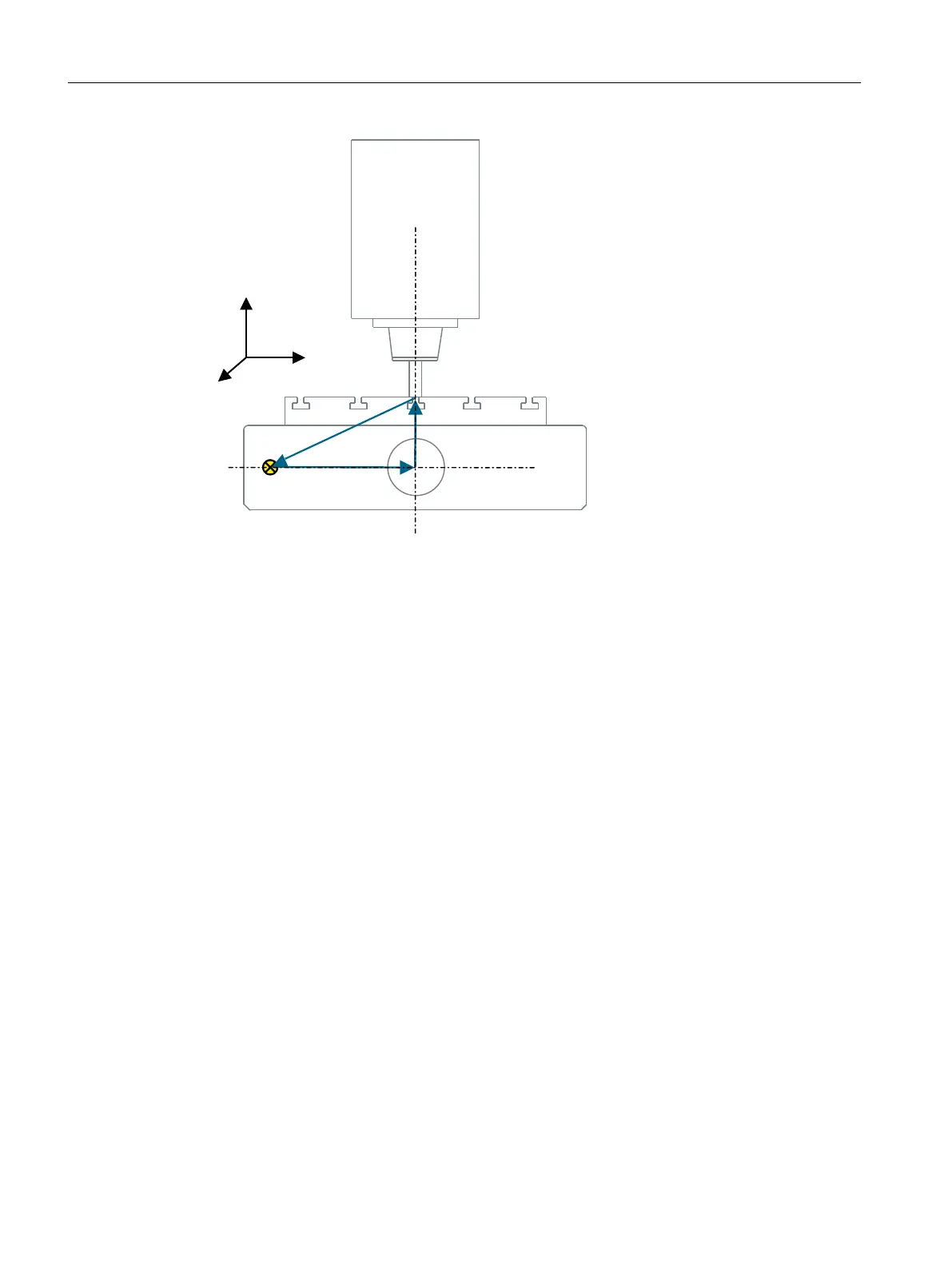

Rotary axis vector V2 Rotary axis C rotates about Z.
Offset vector I2 The distance from the reference point of the machine to the center of rotation/
intersection of rotary axis 1.
Offset vector I3 The distance from the center of rotation of rotary axis 1 to the center of rota‐
tion/intersection of rotary axis 2.
Offset vector I4 Closure of vector chain, I4 = - (I2 + I3).
Figure 21-11 Side view of the machine from the X direction
Technologies and cycles
21.7 Swiveling
SINUMERIK Operate (IM9)
586 Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1
