Silca Triax Pro - Machine Working Parts

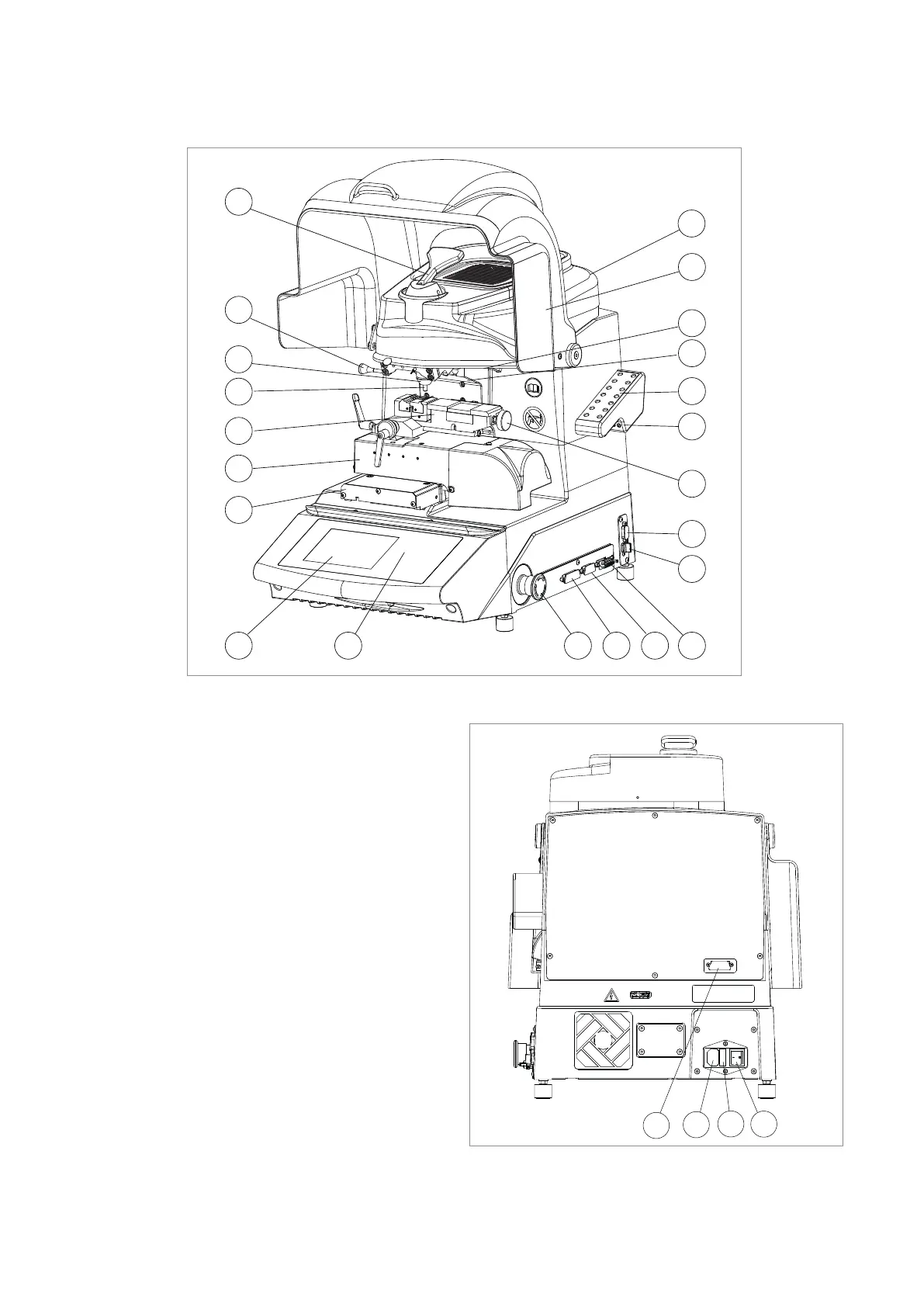

1 MACHINE WORKING PARTS
Fig. 6
A - tool-locking lever
C - Tracer Tower lever
D - spindle
E - cutter
F - clamp R29-R28
G - upper carriage
H - lower carriage
I - display
J - keypad
K - emergency button
L - IN/OUT port
M - B axis
N - upper axis connector
O - USB port for PC
P - serial port for PC
Q - USB PEN holder
R - tool holder
S - clamp knob
T - vertical carriage
U - lamp
V - safety shield
W - vacuum system connector
X - power socket
Y - fuse holder
Z - ON/OFF switch
Z1- belt cover
Fig. 7
A
C
D
E
F
G
H
I J K L M N
O
P
Q
R
S
T
U
V
Z1
Z
Y
X
W
Operating manual TRIAX PRO
Copyright Silca 2016
8
