8.11 PHOTOCELL REPLACEMENT
8.11.1 REPLACING PHOTOCELL FOR LOWER AXIS (Y)
1 ) Switch off the machine and disconnect the power lead.
2) Gain access to the rear compartment (Ch.8.5).
3) Loosen the 2 photocell xing screws (I1) and remove.
4) Disconnect the photocell cable (I2).
5) Connect the cable to the new photocell.
6) Place the photocell in position and secure with the screws (I1).
7) Calibrate the machine (CALIBRATION FUNCTIONS).

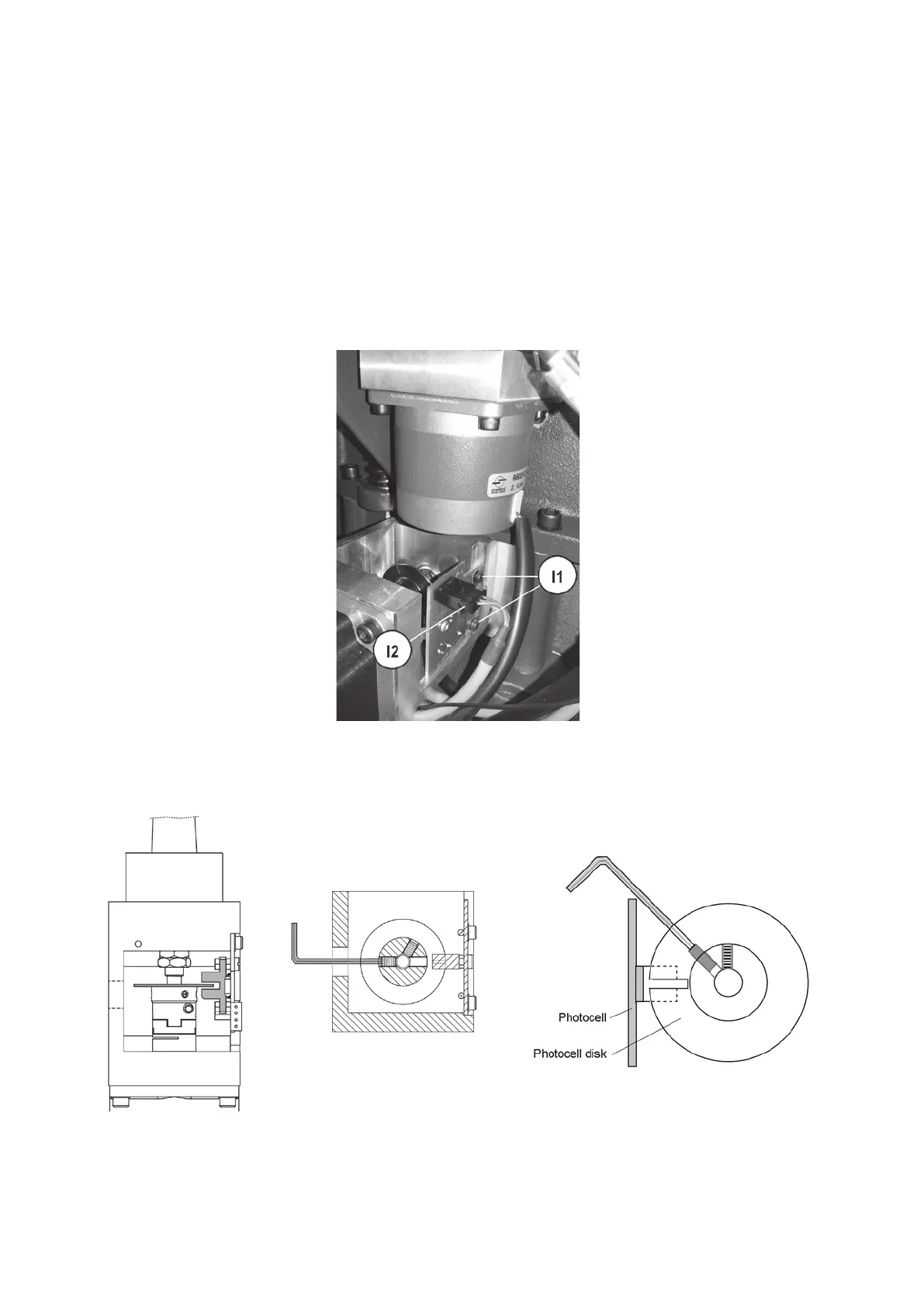

Fig. 55
REGULATION PHOTOCELL DISK (see MACHINE ZEROS)
