Silca Triax Pro - Access to Bottom Compartment; Belt Replacement and Tightening

8.6 ACCESS TO BOTTOM COMPARTMENT
To access the bottom part of the machine, follow the instructions below:
1 ) Switch off the machine and disconnect the power lead.
2) Turn the machine onto its back.
3) Loosen the 8 xing screws (Z2) and remove the bottom metal plate.

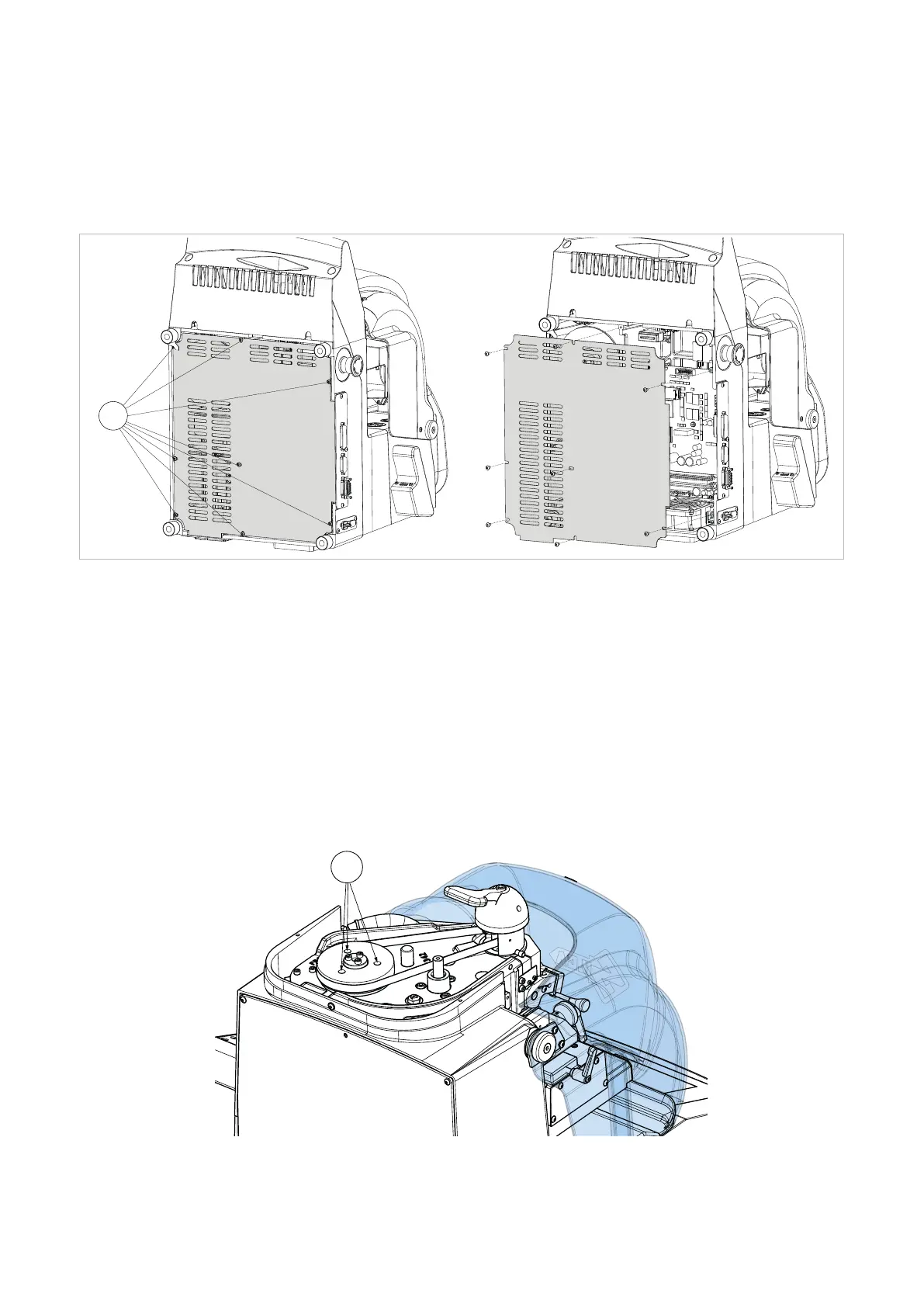

Z2
Fig. 38
8.7 BELT REPLACEMENT AND TIGHTENING
1 ) Switch off the machine and disconnect the power lead.
2) Gain access to the upper compartment (Ch.8.4).
• Tightening:
- increase tension on the belt by loosening the 3 screws (C1) with the Allen wrench provided and pushing the
pulley back. Tighten the 3 screws (C1).
• Replacement:
- remove the belt and replace
3) Replace the belt cover and secure with the 3 screws (C2) (Fig. 35).
C1
Fig. 39
