Silca Triax Pro - Clamp R29 for CUTTING DIMPLE and TRACK TYPE KEYS; Fitting the Key

4.2.1 Clamp R29 for CUTTING DIMPLE and TRACK TYPE KEYS
According to the type of key to be decoded and/or cut, follow the instructions in the Silca tablet program regarding:
• use of jaws 01J and 02J.
• clamp stop (Fig. 17 e Fig. 18).
4.2.1.1 Fitting the key
The R29 clamp is prepared for housing high security keys with head stops, or keys with tip stops.
The former (with head stops) are positioned up against the clamp (Stop “0”) (Fig. 17) and the others (tip stops)
are positioned referring to one of the grooves (1-2-3) as shown on the machine di¬splay. Use the bar provided
for this operation (Fig. 18).
NOTE: the stop bar must be removed before decoding or cutting.
1) Fit the key to be cut into its seat and ensure it is resting  rmly on the clamp plate.
2) Tighten the knob (S) to secure the key.
DIMPLE keys
0
1
2
3
4

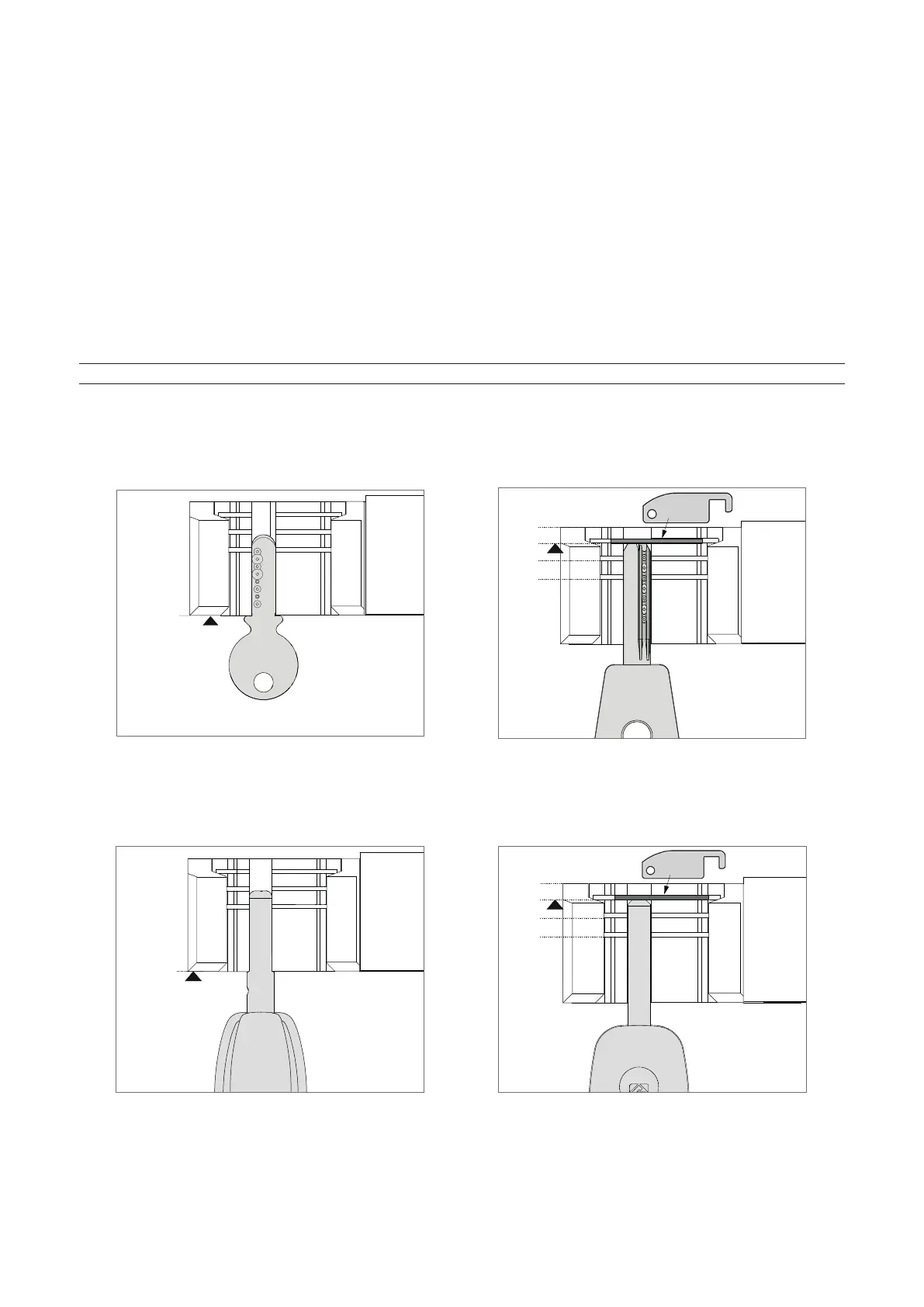

Fig. 17 - SHOULDER STOP Fig. 18 - TIP STOP
TRACK type keys
0
1
2
3
4
Fig. 19 - SHOULDER STOP Fig. 20 - TIP STOP
