4.3 FITTING THE CLAMP TO THE MACHINE
To remove the clamp:
• loosen the handle (A9) (Fig. 25) and pull the clamp out of the dovetail guide.
To t the clamp to the machine:
• insert the clamp into the dovetail guide, push all the way in and lock by turning the handle (A9).
The instructions refer exclusively to the clamp provided. To use any optional clamps follow the instructions
provided with them.
A9

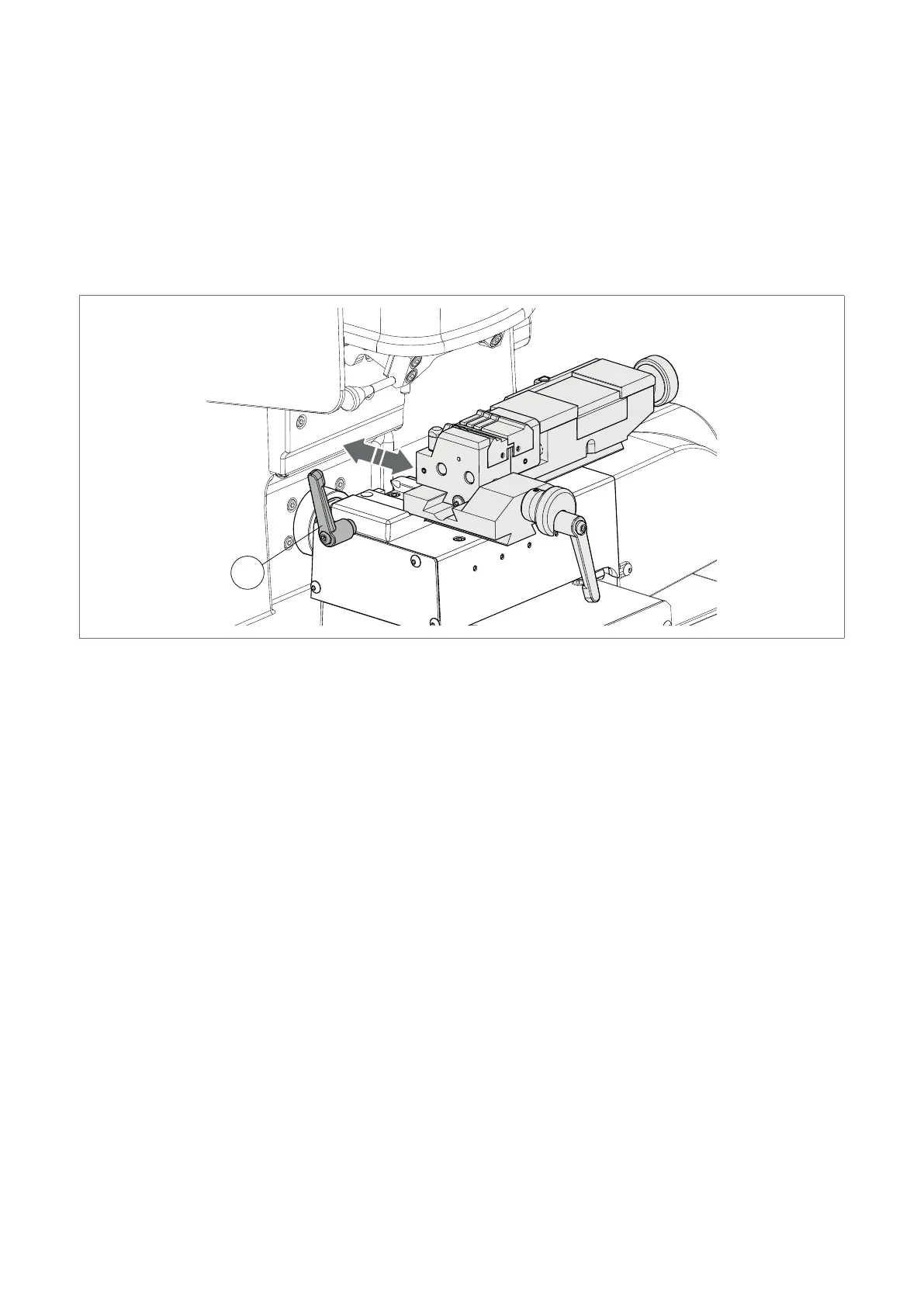

Fig. 25
