4.2.1.2 Removing/fitting the jaws on clamp R29
1) Raise the safety shield.
2) Loosen the knob (S) by a couple of turns.

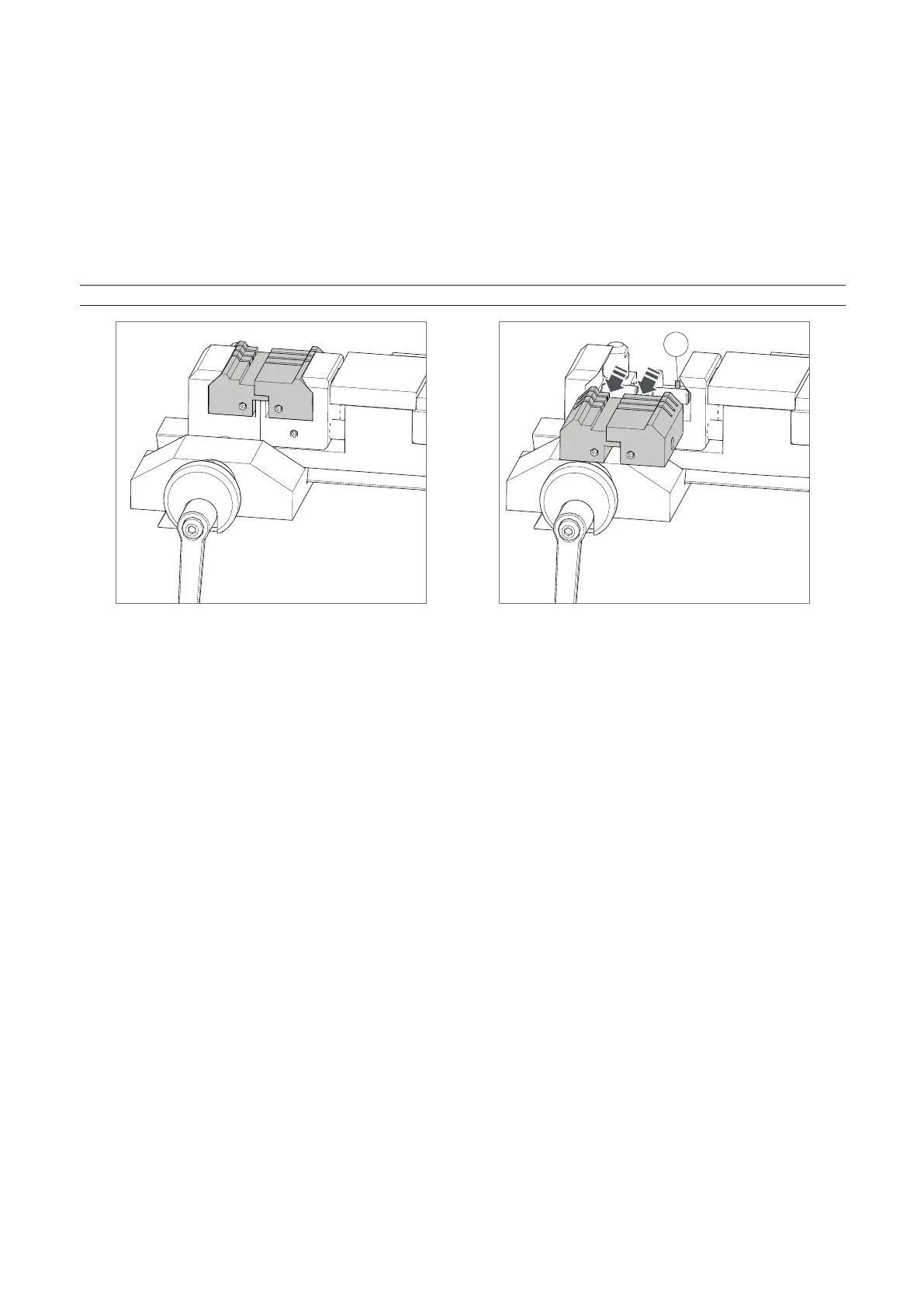

3) Use your ngers to pull the jaw to be removed out towards the operator (Fig. 21).
4) Carefully clean the seat of the jaw on the clamp.
5) Clean the jaw before tting into the clamp.
6) Fit the jaw up against the stop pin (S1).
NOTE: there is only one way to fit the jaw into the clamp.
S1
Fig. 21
Operating manual TRIAX PRO
Copyright Silca 2016
20
