Silca Triax Pro - Access to the Upper Compartment; Access to Rear Compartment

8.4 ACCESS TO THE UPPER COMPARTMENT
1 ) Switch off the machine and disconnect the power lead.
2) Loosen the 3 screws (C2).
3) Lift the safety shield (V).
4) Raise the lever (A) and remove the tool on the machine.
5) Lower the lever (A) and lower the safety shield (V).
6) Raise lever (A) again.
7) Remove the belt cover.
C2
A
V

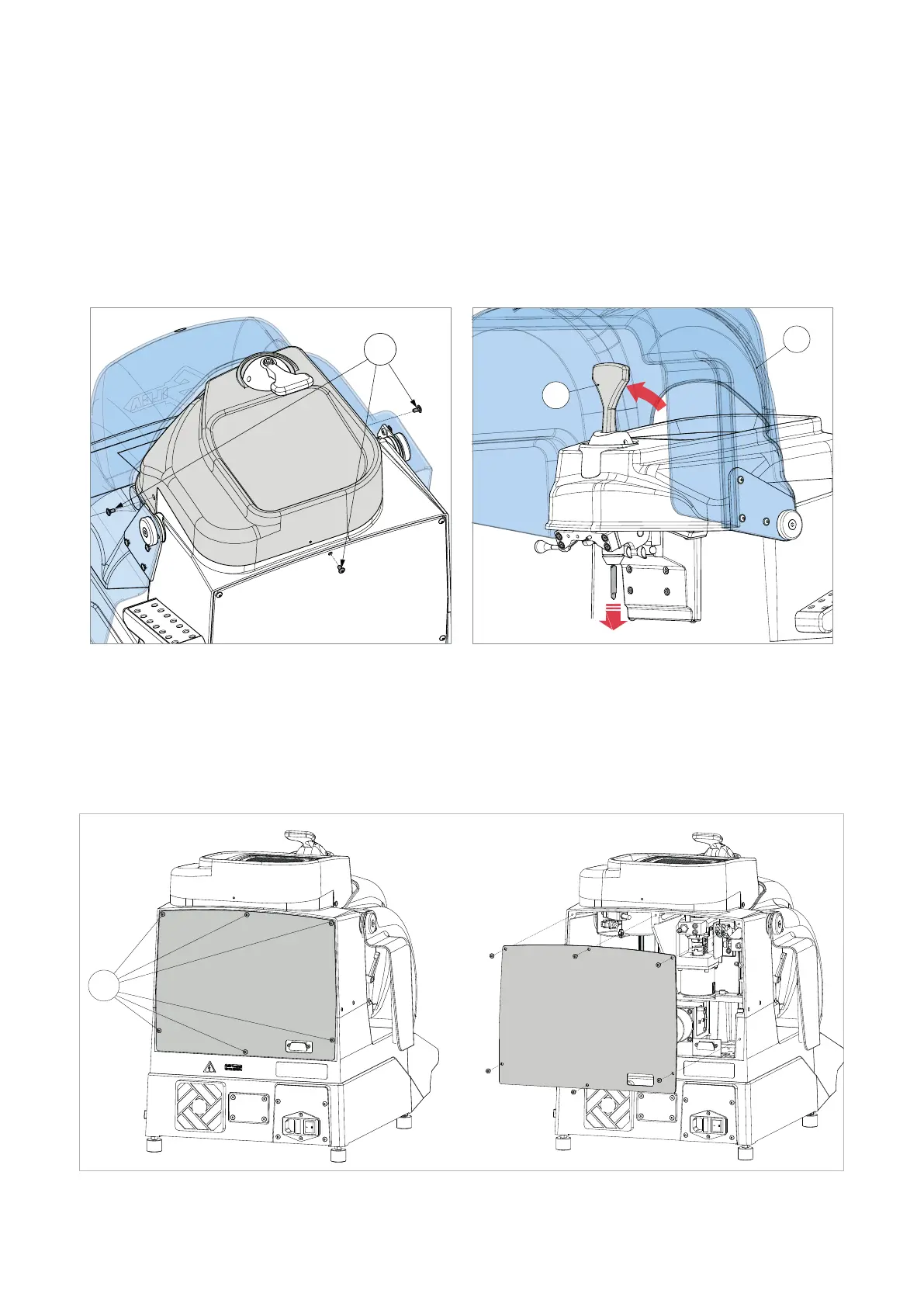

Fig. 35 Fig. 36
8.5 ACCESS TO REAR COMPARTMENT
To access the rear compartment follow the instructions below:
1 ) Switch off the machine and disconnect the power lead.
2) Loosen the 6 screws (W1) xing the back metal plate and remove.
W1
Fig. 37
