8.11.3 REPLACING PHOTOCELL FOR VERTICAL AXIS (Z)
1 ) Switch off the machine and disconnect the power lead.
2) Gain access to the rear compartment (Ch.8.5).
3) Loosen the two screws (J1) and remove the microswitch support plate.
4) Disconnect the photocell and sensor cable (J3).
5) Loosen the 2 photocell xing screws (J2) and remove.
6) Place the new photocell in position and secure with the screws (J2), connect the two cables (J3).
7) Replace the microswitch support plate and secure with the screws (J1).
8) Secure the rear metal plate.
9) Reconnect the power lead and Switch on the machine.
10) Calibrate the machine (see CALIBRATION functions).
J1
J2
J3

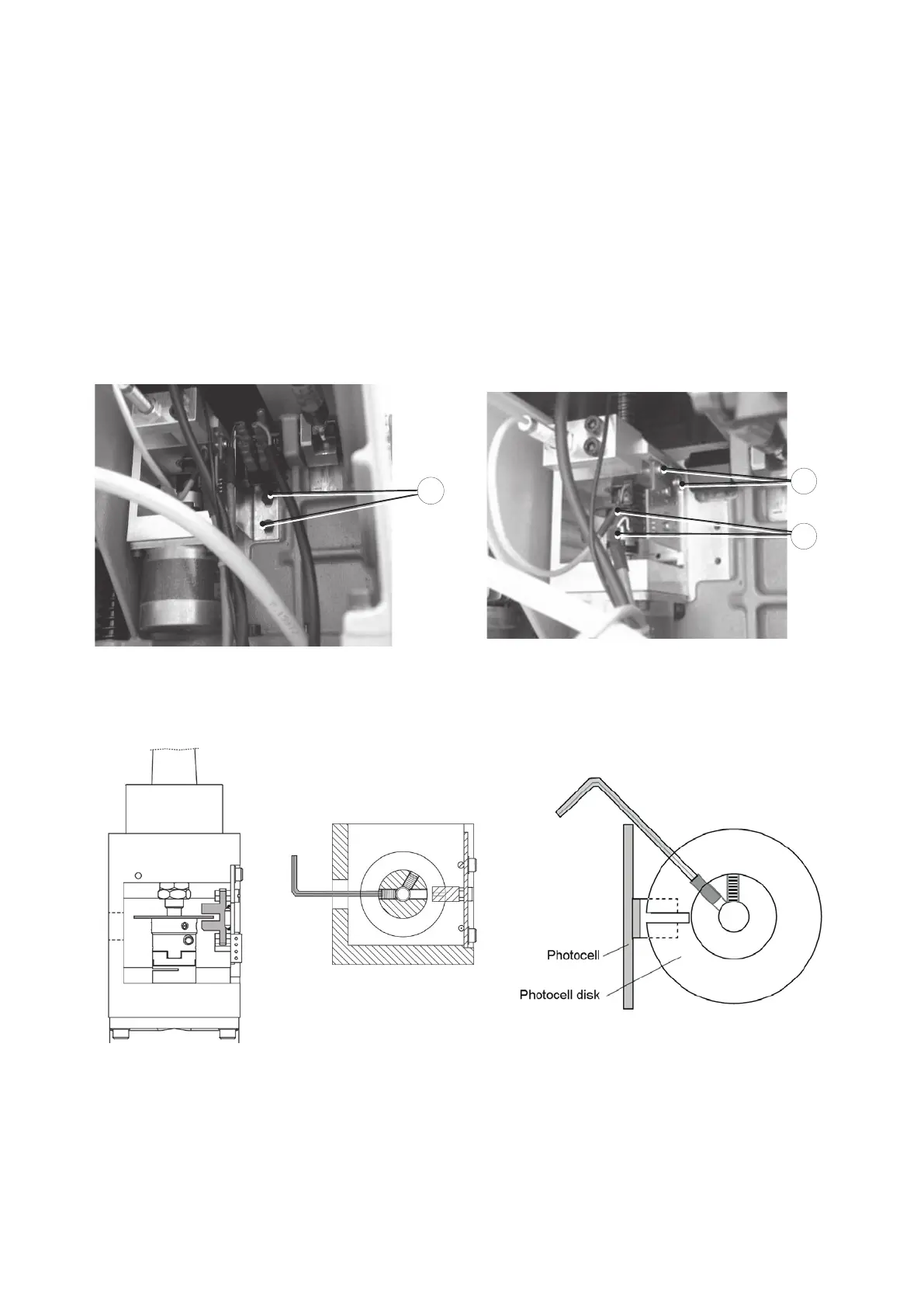

Fig. 58 Fig. 59
REGULATION OF PHOTOCELL DISK (SEE MACHINE ZEROS)
