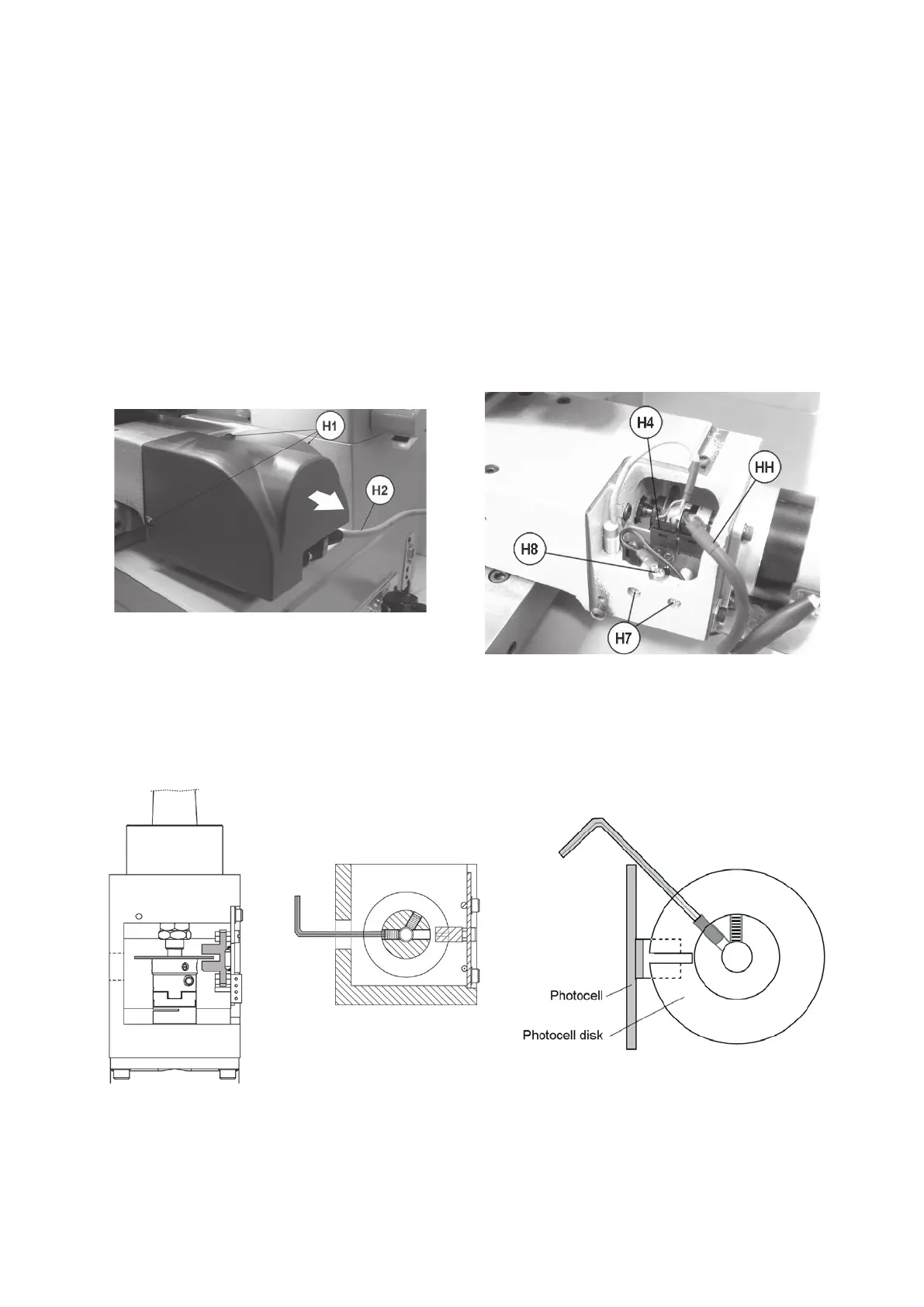

8.11.2 REPLACING PHOTOCELL FOR UPPER AXIS (X)
1 ) Switch off the machine and disconnect the power lead.
2) Disconnect the upper axis connection wire (H2) from the carriage.
3) Remove the upper axis carriage cover by loosening the 3 locking screws (H1) and pull out in the direction given.
4) Disconnect the photocell cable (H6) and sensor cable (H3).
5) Loosen the screw (H8).
6) Loosen the 2 screws (H7) on the photocell support and pull out of carriage.
7) Place the new board in position on the carriage and tighten the 2 support screws (H7).
8) Connect the photocell cable (H6) and sensor cable (H3).
9) Connect the upper axis connection wire (H2) to the carriage.
10) Calibrate the machine (CALIBRATION FUNCTIONS).
Fig. 56 Fig. 57
REGULATION PHOTOCELL DISK (SEE MACHINE ZEROS)
Operating manual TRIAX PRO
Copyright Silca 2016
92
