7 Commissioning
7.4. End positions – Signaling gear
7
Commissioning
b) Once the desired position has been
reached, press Drive Controller to stop
theactuator.Performpossiblene
adjustment by operation in the opposite
direction.
c) Turn Drive Controller and set selection
marker‘Acceptendposition’(g.7).
d) Press Drive Controller.
For 2SG7 and 2SQ7, continue with
step 15.
Shown in display
– Request to turn central wheel in direc-
tion of the arrow until 0 is displayed
(item 8); continue with step 13;
– Adjustment is correct, continue with
step 14.
■
Torque-dependent cut-off mode

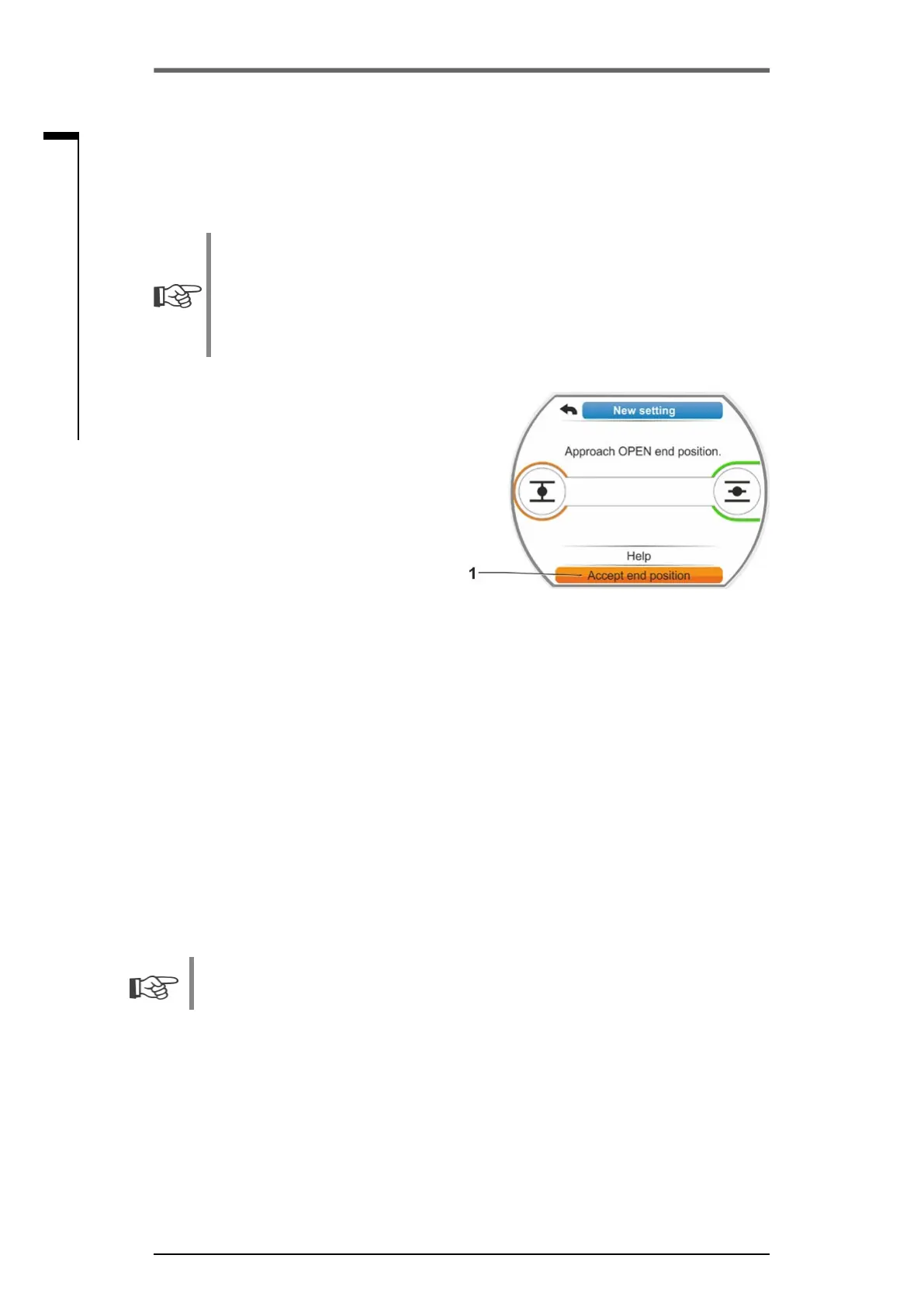

Fig� 7: Accept end position
■
Travel-dependent cut-off mode:
a) Heed valve position and approach end position; press Drive Controller.
Operate the actuator until the valve has reached the end position.
TheLEDoftheselectedendpositionasheswhiletheactuatorisoperated.
■
WhenpressingtheDriveControllerforashorttime(<3s),theactuatormovesaslong
astheDriveControllerispressed.Forlongeractivation(>3s),latchingstarts(display
shows "Latching active") and the actuator moves unit the Drive Controller is pressed
again.
■
If torque-dependent tripping occurred in travel-dependent cut-off mode, e.g. if the MOV
is sluggish, unfavorable torque characteristics or approaching of a mechanical stop,
"Torque dependent cut-off" is shown in the display.
Hold down Drive Controller for more than
3 s. The actuator automatically moves until
reaching the end position. (For 2SG7 and
2SQ7, continue with step 14.)
Shown in display
– Request to turn central wheel in direc-
tion of the arrow until 0 is displayed
(item 8); continue with step 13;
– Adjustment is correct, continue with
step 14.
WhenpressingtheDriveControllerforashorttime(<2s),theactuatormovesaslong
as the Drive Controller is pressed. If the actuator is operated, i.e. by pressing the buttons
repeatedly for a short time, torque dependent cut-off is not immediately performed.
