Signal Input Settings (Input Menu)
2
Press [FC Input 1-8] or [FC Input 9-16] as required.
3
Using any of the following methods, select what the setting applies to.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video cursor.
• Turn the knob.
a) If you pressed [FC Input 9-16] in step 2, the value is from 9 to 16 inclusive.
Making detailed settings for up-conversion
1

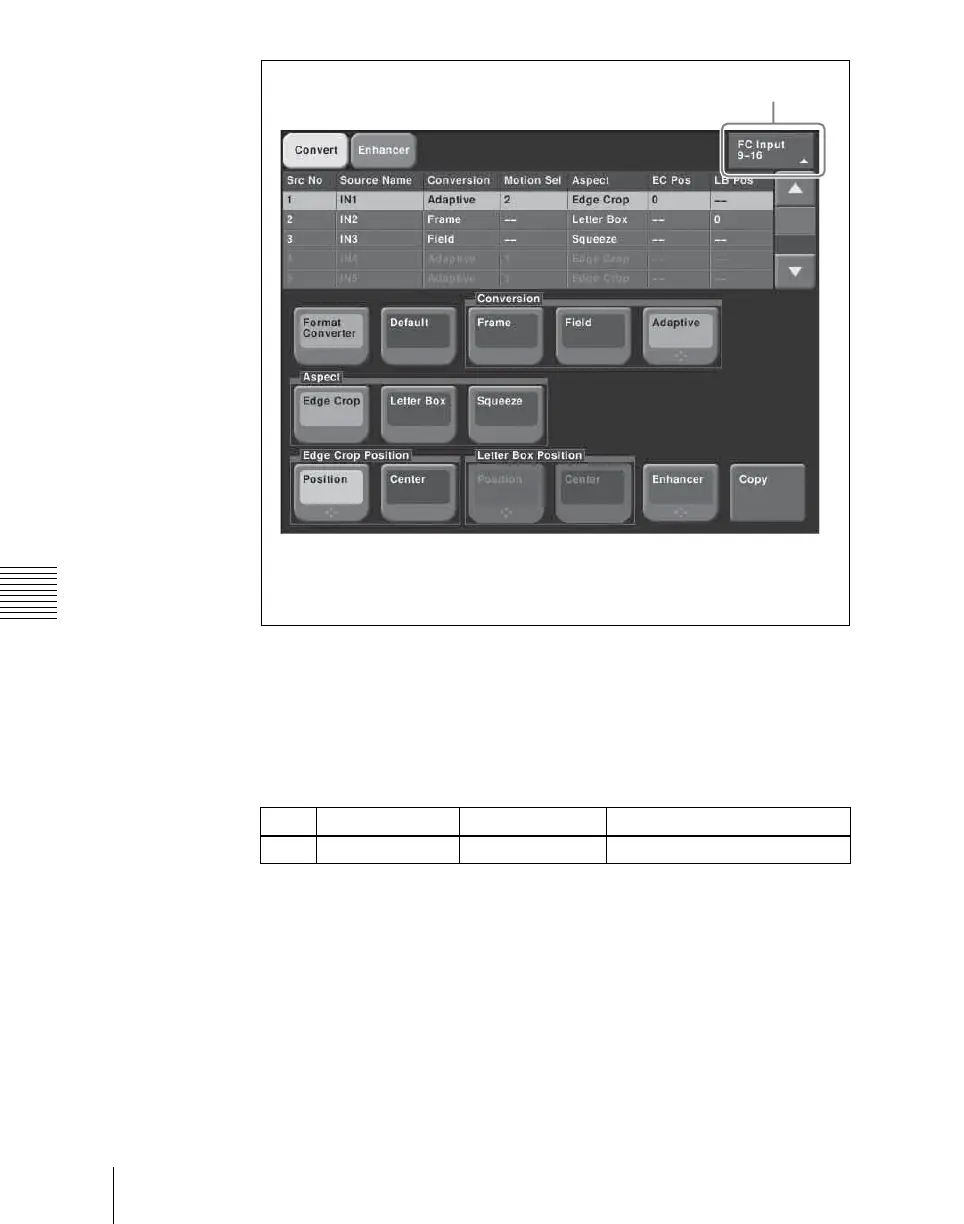

In the Switcher >Input >FC Adjust menu, select the input to which the
setting applies.
2
Press [Format Converter], turning it on.
This enables format conversion.
Knob Parameter Adjustment Setting values
1 Source No Input selection 1 and upwards
a)
Button to switch between displaying FC Input 1-8
and FC Input 9-16
a)
a) If FC Input 1-8 and FC Input 9-16 have the same format, this does not appear.
When the conversion format is 1080i/59.94 or 1080i/50, and the Frame Delay
function is on, this button does not appear.
