Executing a Transition
• Enter a value of up to three digits.
• To cancel the entry, press any of the six buttons in the leftmost column
([WIPE], [DME], ...) or the [TRANS RATE] button.
3
Press the [ENTR] button.
This confirms the entry, and the new setting appears in the transition
control block display.
Setting the transition rate in the numeric keypad control block
Numeric keypad control block
1
In the numeric keypad control block, press the [TRANS RATE] button.
2
Press the region selection button for the M/E or PGM/PST bank for which
you want to set the transition rate, turning it on.
The numeric keypad control block display now shows the selected region
name and the current transition rate setting for the region.
3
With the numeric keypad, enter the transition rate.
If required, press the [TC] button to toggle the input mode (frame input or
timecode input).
• Enter a value of up to three digits.
• To clear the entry, press the [CLR] button.

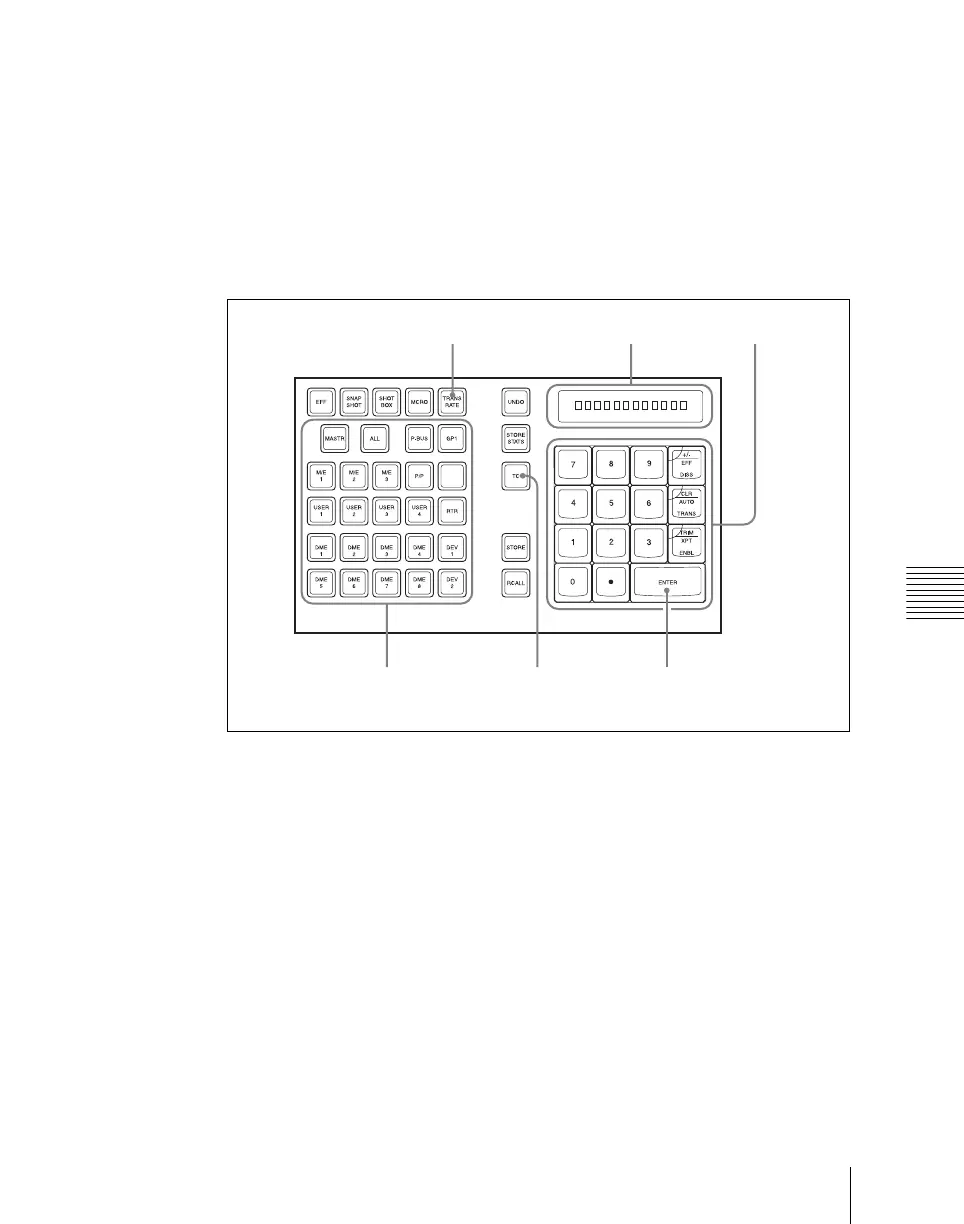

TRANS RATE button
Region selection buttons
Display
Numeric keypad
ENTER buttonTC button
