Chapter 2 Menus and Control Panel
111

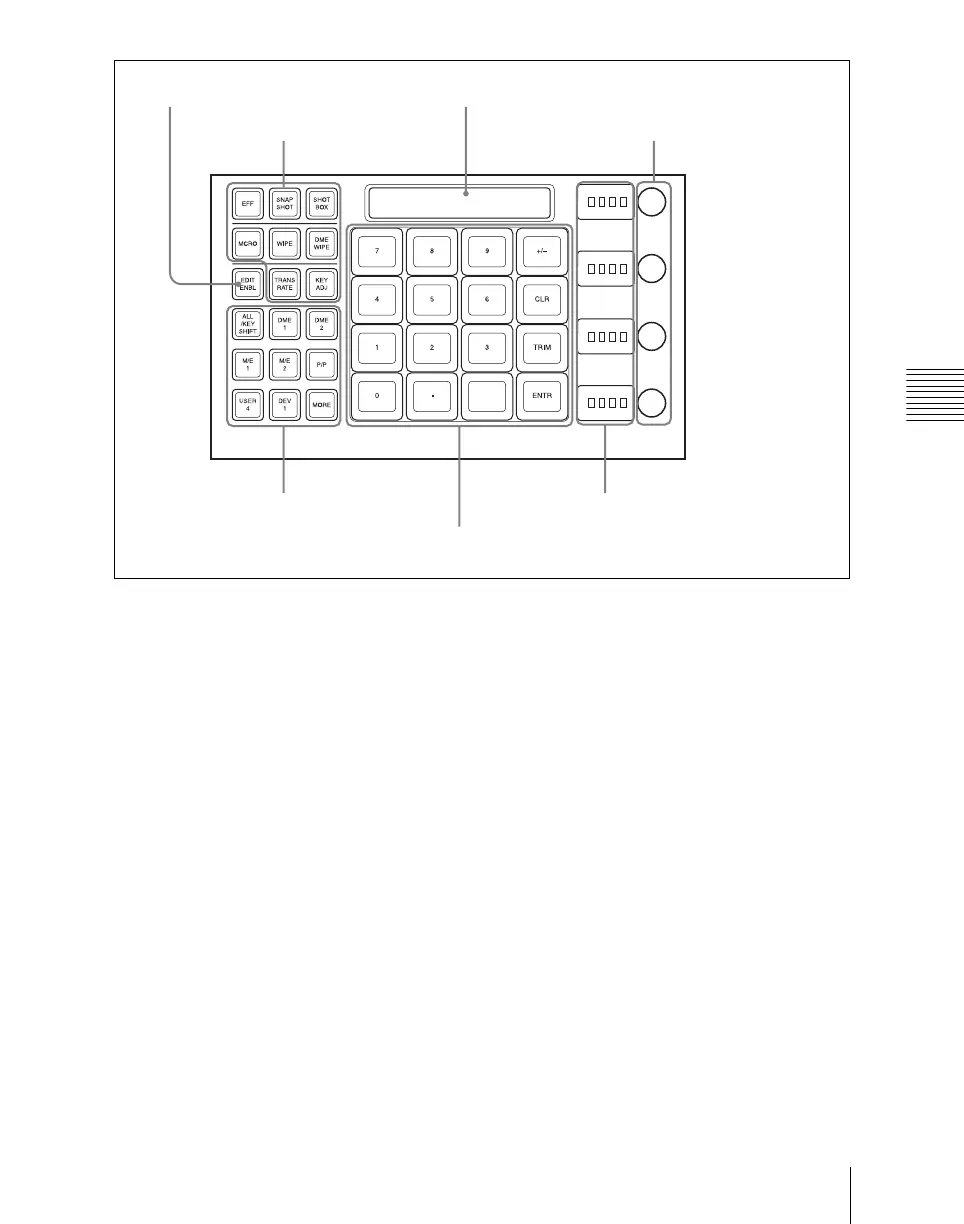

Names and Functions of Parts of the Control Panel
a Mode selection buttons
EFF (effect): Press this to carry out effect
creation/recall/editing/execution/
deletion.
SNAPSHOT: Press this to carry out
snapshot creation/recall/editing/
deletion.
SHOTBOX: Press this to carry out shotbox
creation/recall/editing/execution/
deletion.
MCRO (macro): Press this to carry out
macro creation/editing/execution/
deletion.
WIPE (wipe snapshot): Press this to carry
out wipe snapshot creation/recall/
deletion and wipe adjustments.
DME WIPE (DME wipe snapshot): Press
this to carry out DME wipe snapshot
creation/recall/deletion and DME wipe
adjustments.
TRANS RATE (transition rate): Press
this to set the transition rate.
KEY ADJ (key adjust): Press this to carry
out key adjustments and set modifiers.
KEY SS (key snapshot): Press this to carry
out key snapshot creation/recall/
deletion. By default, this is not
assigned to a mode selection button, so
before use it is necessary to assign to a
mode selection button in the Setup
menu.
b EDIT ENBL (edit enable) button
By pressing this, turning it on, you can
carry out the following operations.
• Effect creation/editing
• Snapshot attribute setting
• Shotbox creation/editing
• Macro creation/editing
• Wipe adjustments
• DME wipe adjustments
1 Mode selection
buttons
2 EDIT ENBL button
3 Region selection
buttons
4 Alphanumeric display
5 Memory recall section
6 Adjustment knob displays
7 Adjustment knobs
To Next Page
