Chapter 2 Menus and Control Panel
59
Names and Functions of Parts of the Control Panel

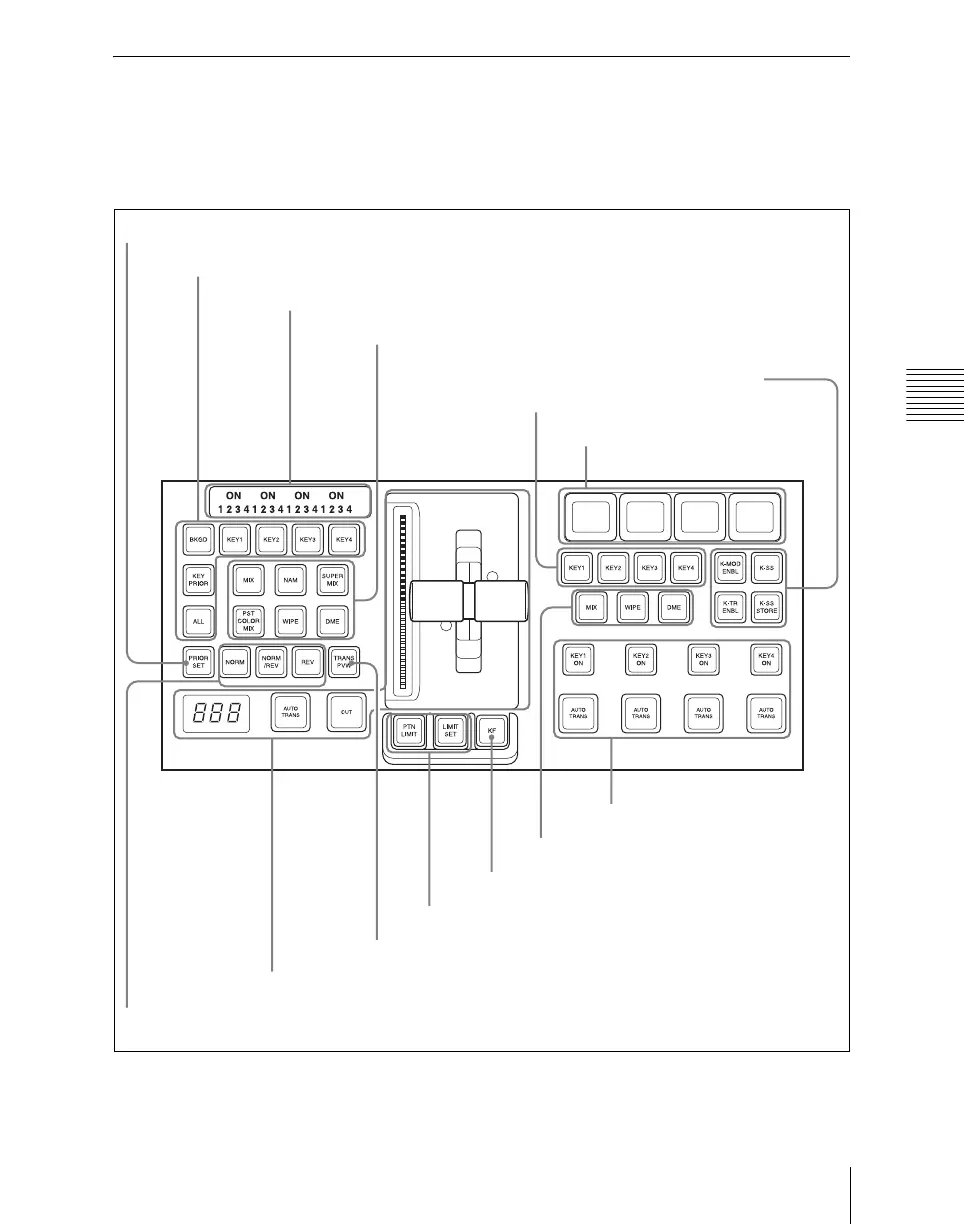

Transition Control Block (Standard Type)
In the transition control block, you can
modify the output of the M/E bank or PGM/
PST bank, and perform transitions. Both
common transition and independent key
transition operations are possible.
9 PRIOR SET button
1 Next transition selection buttons
8 Key status display
2 Transition type selection buttons
7 KF button
6 Pattern limit buttons
5 TRANS PVW button
3 Transition execution section
4 Wipe direction selection buttons
q; Key delegation buttons
qd Key source name display/key
snapshot buttons
qf Key snapshot setting buttons
qa Independent key transition type
selection buttons
qs Independent key transition
execution section
