Installation and Setup 49
2005995 Rev O – 210712
Solvent-Based Systems

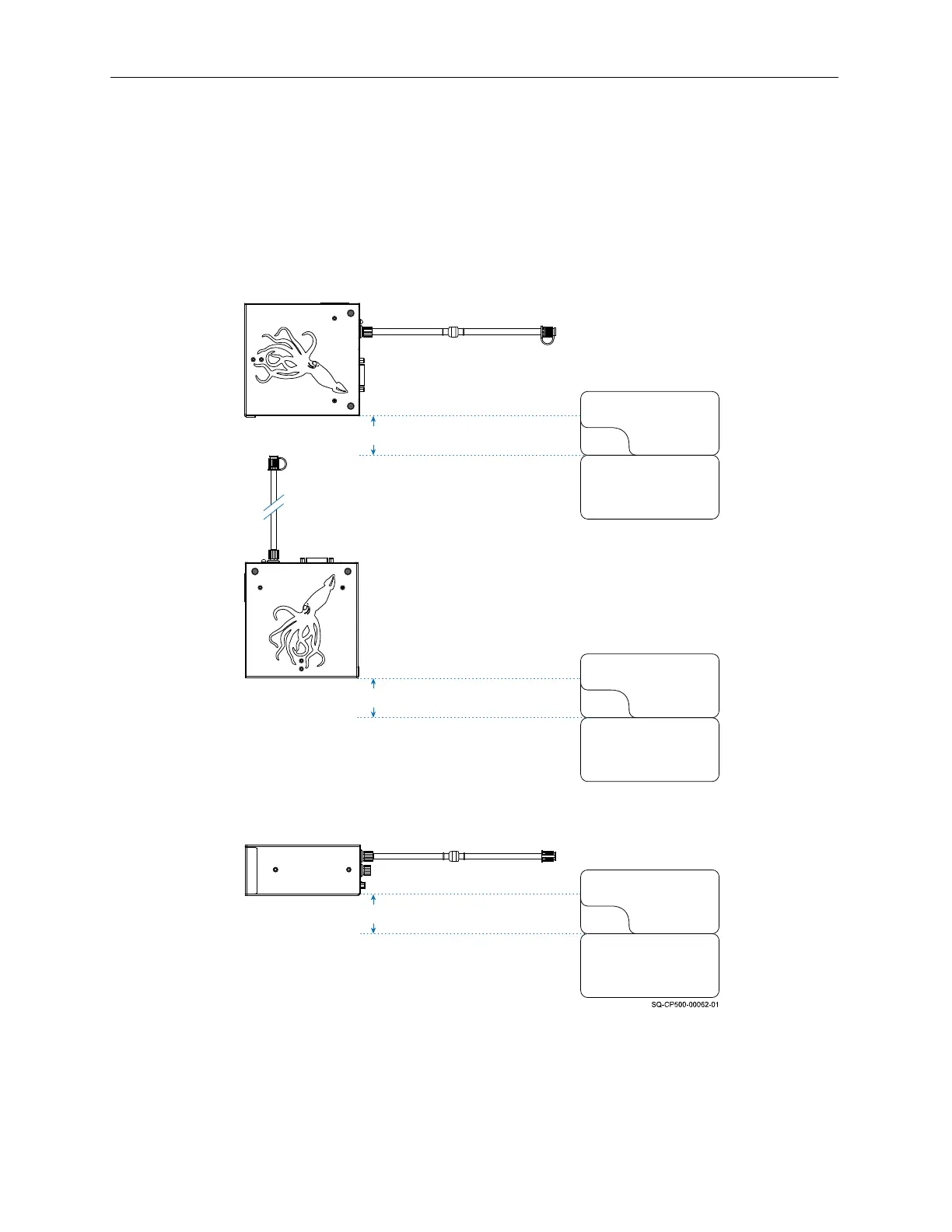

For solvent-based systems, the lowest surface of the Printhead should be 2” (50.8 mm)
higher than the top of the Ink Reservoir (Cartridge Ink system) or Ink Pan (Bag Ink
system).
Straightshooter Mode
Printhead bottom is 2” (50.8 mm)
higher than Ink Reservoir top
Solvent Printhead with Cartridge System
Ink Reservoir
Ink Cartridge
Printhead
Printhead
Printhead
Printhead Nozzle Face is 2” (50.8 mm)
higher than Ink Reservoir top
Printhead’s lowest side is 2”
(50.8 mm) higher than Ink
Reservoir top
Ink Reservoir
Ink Cartridge
Ink Reservoir
Ink Cartridge
Downshooter Mode
Sideshooter Mode
2” (50.8 mm)
2” (50.8 mm)
2” (50.8 mm)
