3-10
920011-649 Operator Manual Component Identification
3.3.4 Display Screen The two-line by 16-character alphanumeric screen displays cycle
data, in-cycle performance and operator instructions. The display
screen also indicates any faults that may occur during a cycle.
3.3.5 Audible Signal An audible signal acknowledges the touch pad has been pressed.
An audible signal also warns the operator that an action must be
taken, or that a cycle is completed.
3.3.6 Printer See Figure 3-6.
A printer is included with the processor. Refer to the printer manual
for detailed information about the printer.
The printer allows the operator to print process time, date and
processor malfunction data. Specific information is printed from the
Operator mode (cycle parameters, cycle in process parameters,
alarms) and Service mode (processor configuration values,
processor setup, etc.).
3.4 Reliance Dry
Chemistry
The Reliance dry chemistry is a single-use, dry germicide for use
only in the Reliance EPS Processor. When used in conjunction with
the Reliance EPS, it provides high level disinfection of pre-cleaned,
immersible, reusable, heat-sensitive, semi-critical devices such as
GI flexible endoscopes, bronchoscopes and their accessories. High
level disinfection is achieved within the 50-57°C HLD phase of the
Reliance EPS Cycle (a 4-minute generation segment followed by a
6-minute exposure segment).
For ordering information, contact STERIS.
IMPORTANT: Review the information provided in the Reliance dry
chemistry package insert prior to use. Contact STERIS with any
questions regarding the safe and proper use of Reliance dry
chemistry.

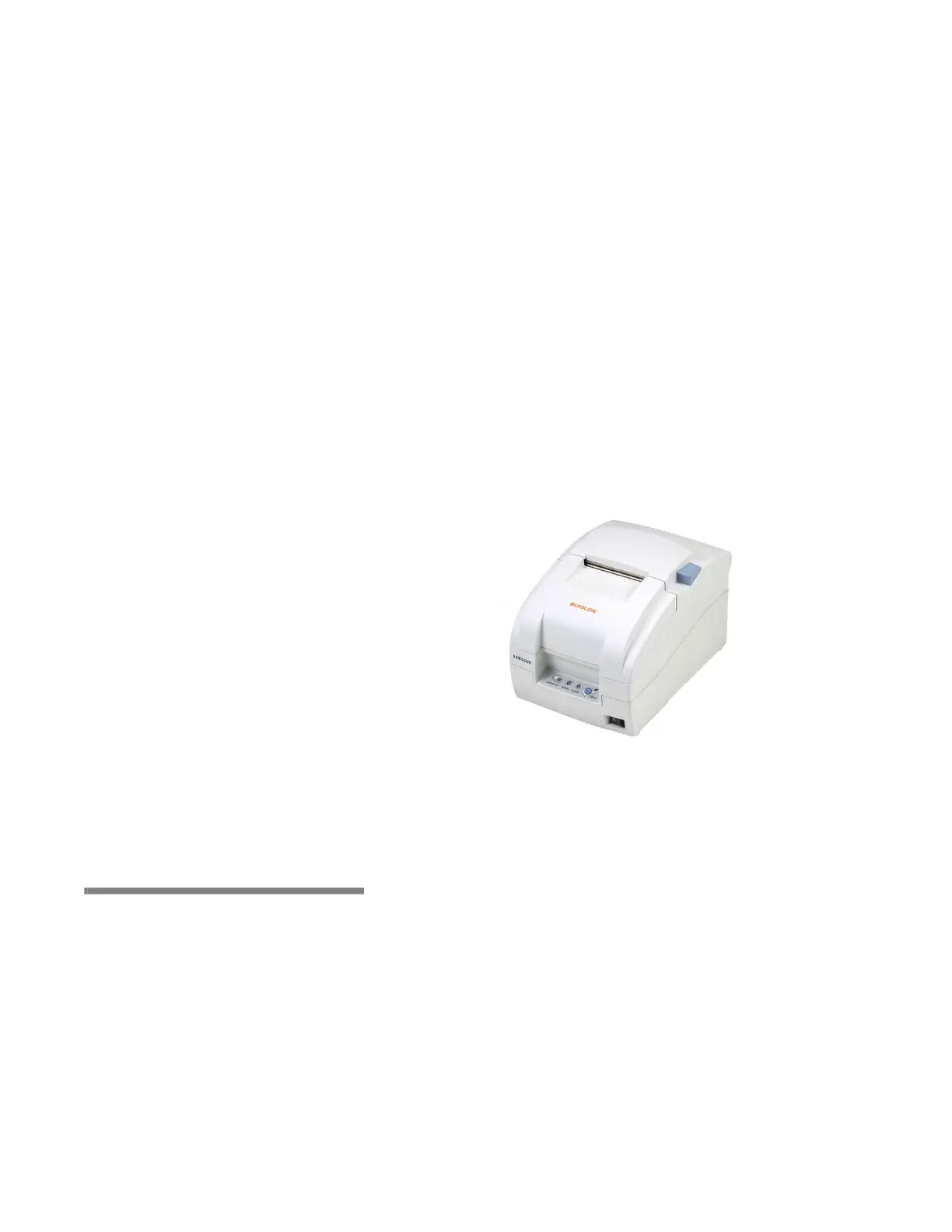

Figure 3-6. Printer
