Tip Wipe Height Adjustment Manual Tip Calibration
Page 145
© Copyright 2020 Stratasys. All rights reserved.
c. Tighten the tip wipe assembly mounting screw.
d. Manually move the head back and forth to verify that the brush and flicker are
c
ontacting the tip shield without extreme resistance.
6. Repeat s
tep 4 and step 5 above for the support head (right side) and support tip wipe
assembly (right side).

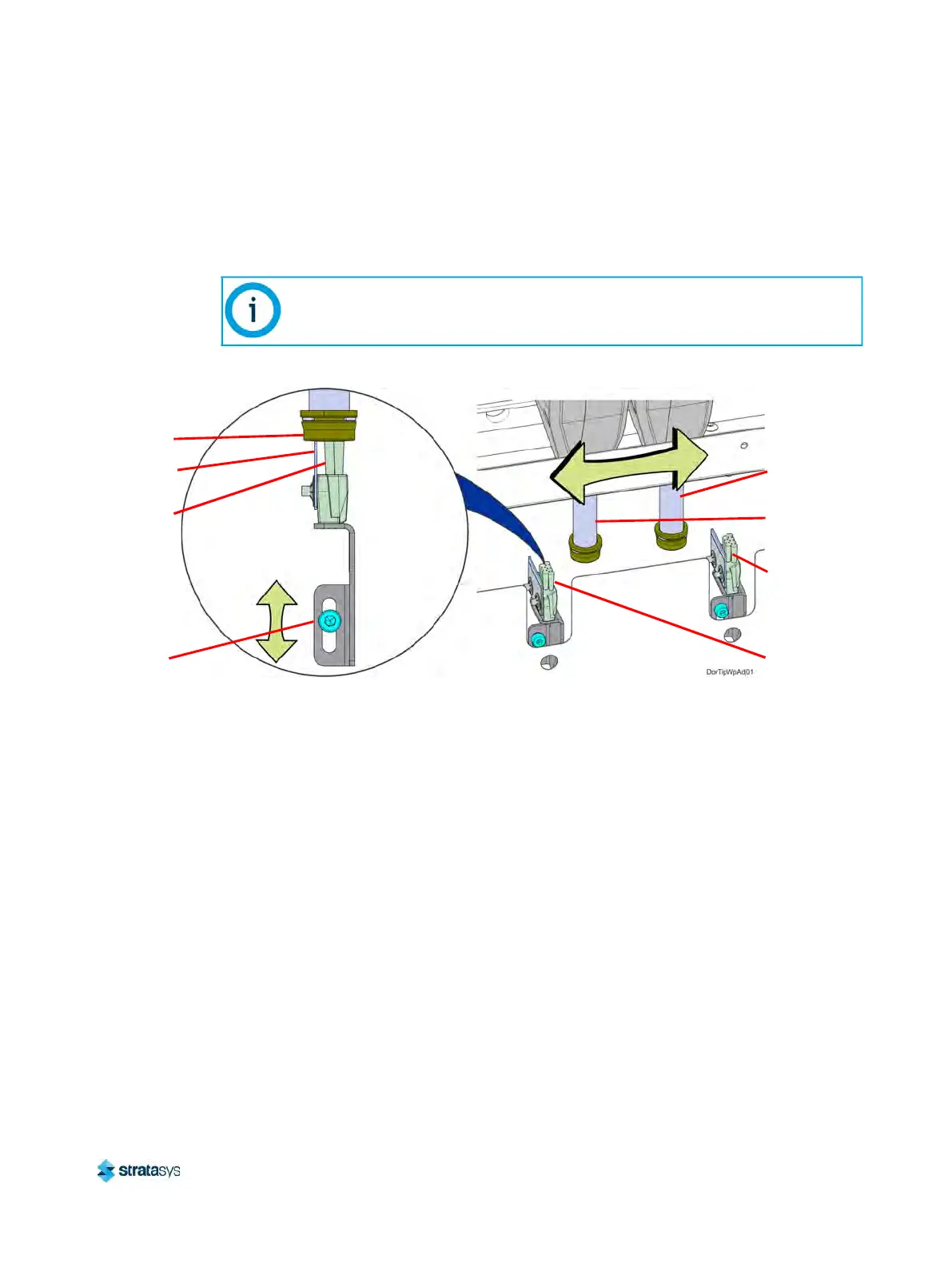

Figure 23: Tip Wipe Detail
Make sure that the toggle bar is in the lower position when verifying/adjusting the
height of the support tip wipe assembly.
Tip
Shield
Flicker
Brush
Adjustment
Screw
Model
Head
Support
Head
Model Tip
Wipe
Support
Tip Wipe
