Material Coil Box
The F120 printer uses a material coil box (Figure 11) to supply both model and support
material to the printer. The material coil box is external to the F120 printer and must be
ma
nually loaded to one of the printer filament ports (Figure 11). Each material coil box has a
filament key which interfaces with the system at the filament port. Within each filament port is a
fi
lament key reader chip which interfaces with the filament key to communicate each material
coil box’s material type and the quantity of material within the box. The F120 require two
material coil boxes: one for model material and one for support material.

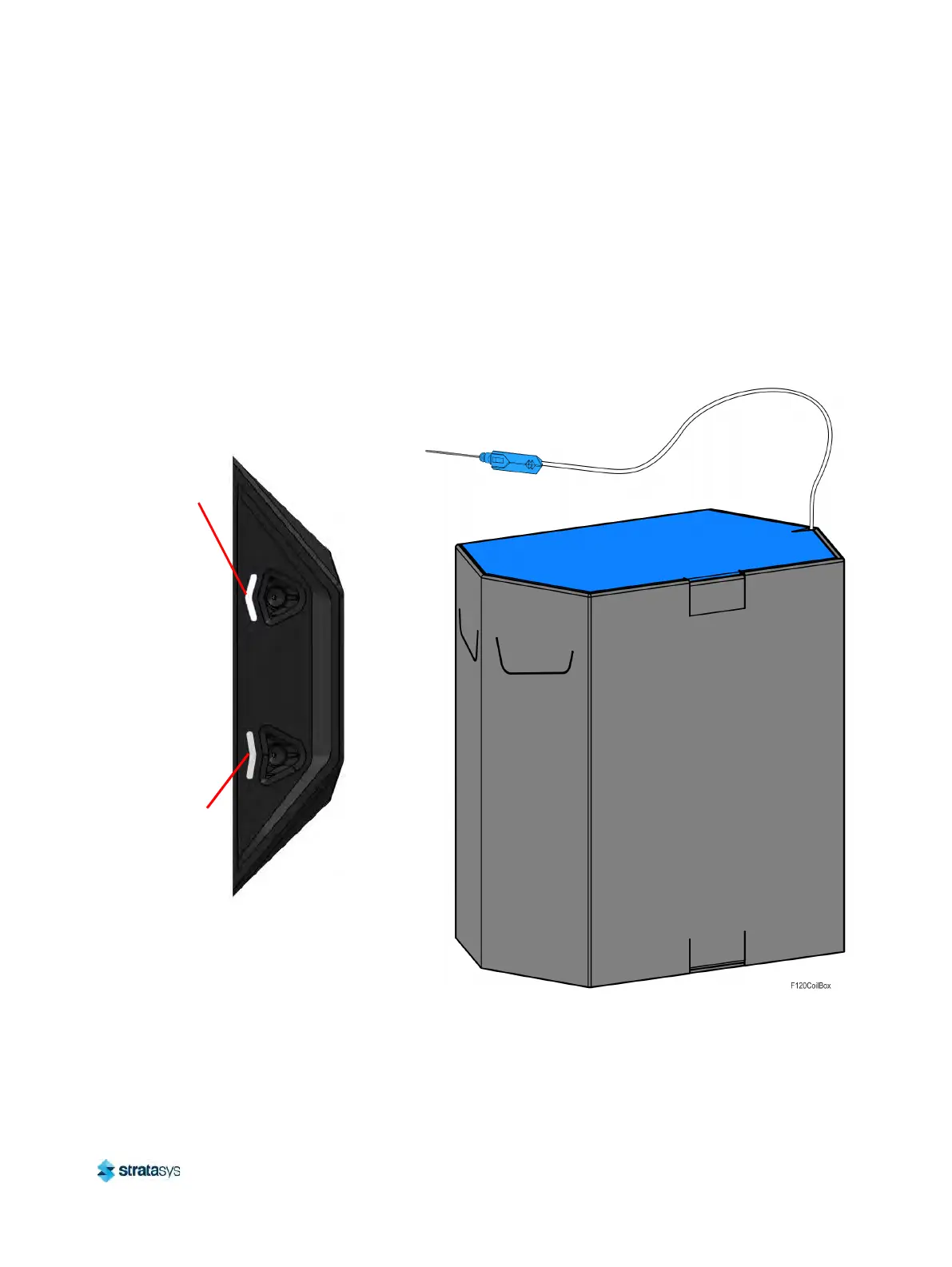

Figure 11: Material Coil Box and Material Port
Model Material
Port
Support
Material Port
