Viewing Material Details
To view additional details regarding a particular material, select the desired material by
touching its Material Status Icon on the screen. Doing so will open its Material Details page. If
the material coil box is in a warning or error state additional information pertaining to the
warning/error will be displayed within the page (see “Load/Unload Errors” (page 196) for
details).
The right portion of the screen displays detailed information about the material coil box
in
cluding:

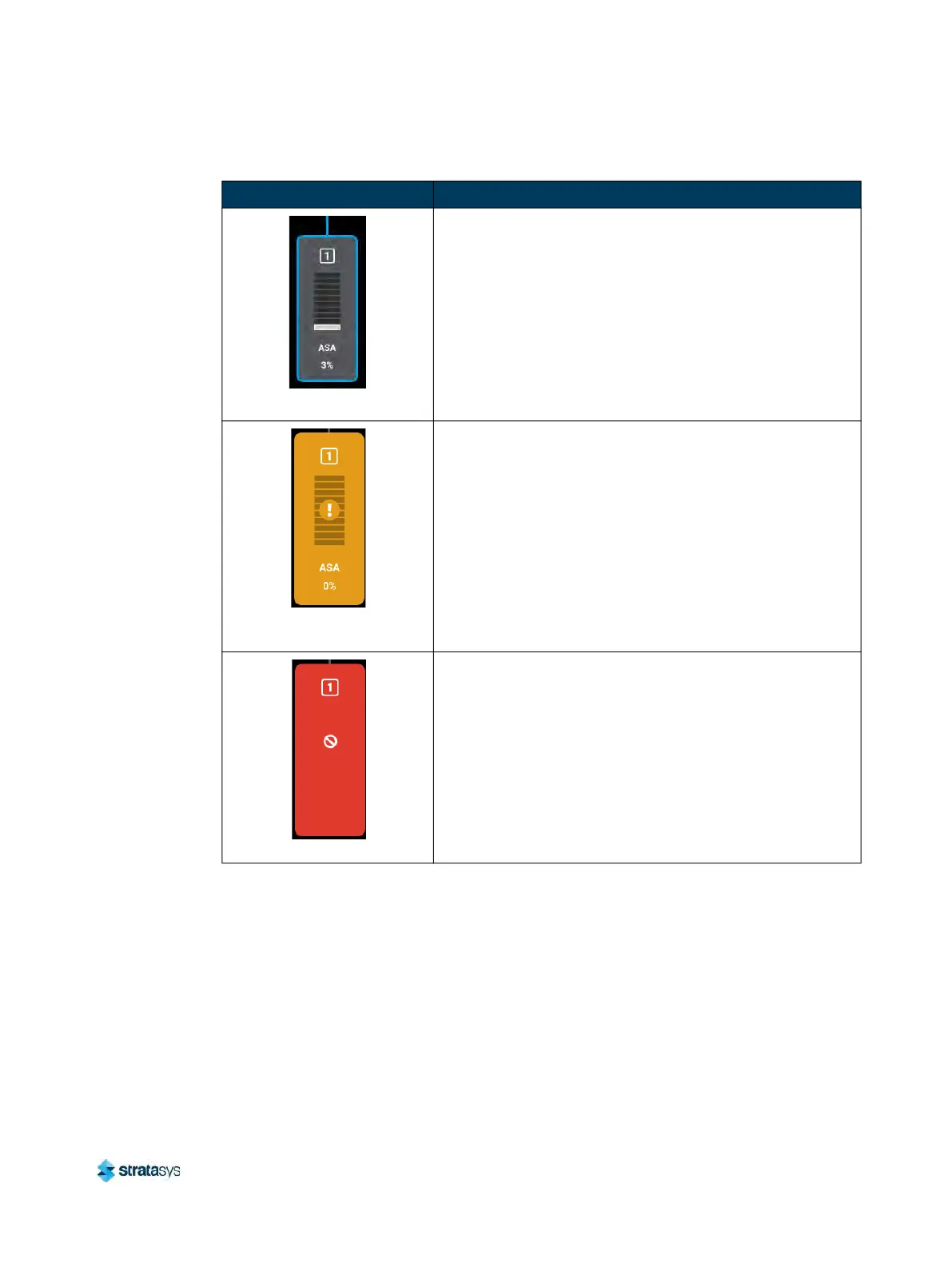

• State: load state.
L
oaded (blue border)
• Valid material coil box connected. Material name, color,
a
nd current volume displayed.
• Material from the material coil box is loaded to the head
a
nd is selected to be used for building.
• See “
Selecting a Job to Build” (page 112) for instructions
on starting a build. See “Unloading Material” (page 105)
for instructions on unloading material.
Empty Material Coil Box
(solid yellow)
• M
aterial coil box is empty - a volume of 0% is displayed.
•
User action required to replace the empty material coil
b
ox. See “Unloading Material” (page 105) for instructions.
Error (solid red)
• Indicates that communication with the material coil box is
n
ot possible. Please note that this state differs from the
unusable state as the icon is solid red in this state and the
bars within the center of the icon are not visible.
• Contact Customer Support or your regional Stratasys
o
ffice if you experience this icon state (see “Getting Help”
(page 192) for contact information).
Table 7: Material Status Icons - Icon States (Continued)
Icon State Description
