Oven Components
The oven consists of the oven door and everything that you see through the oven door window,
including the platen, tip wipe assemblies, purge chute, and oven heaters. The printer’s camera
is housed within the frame of the oven door.

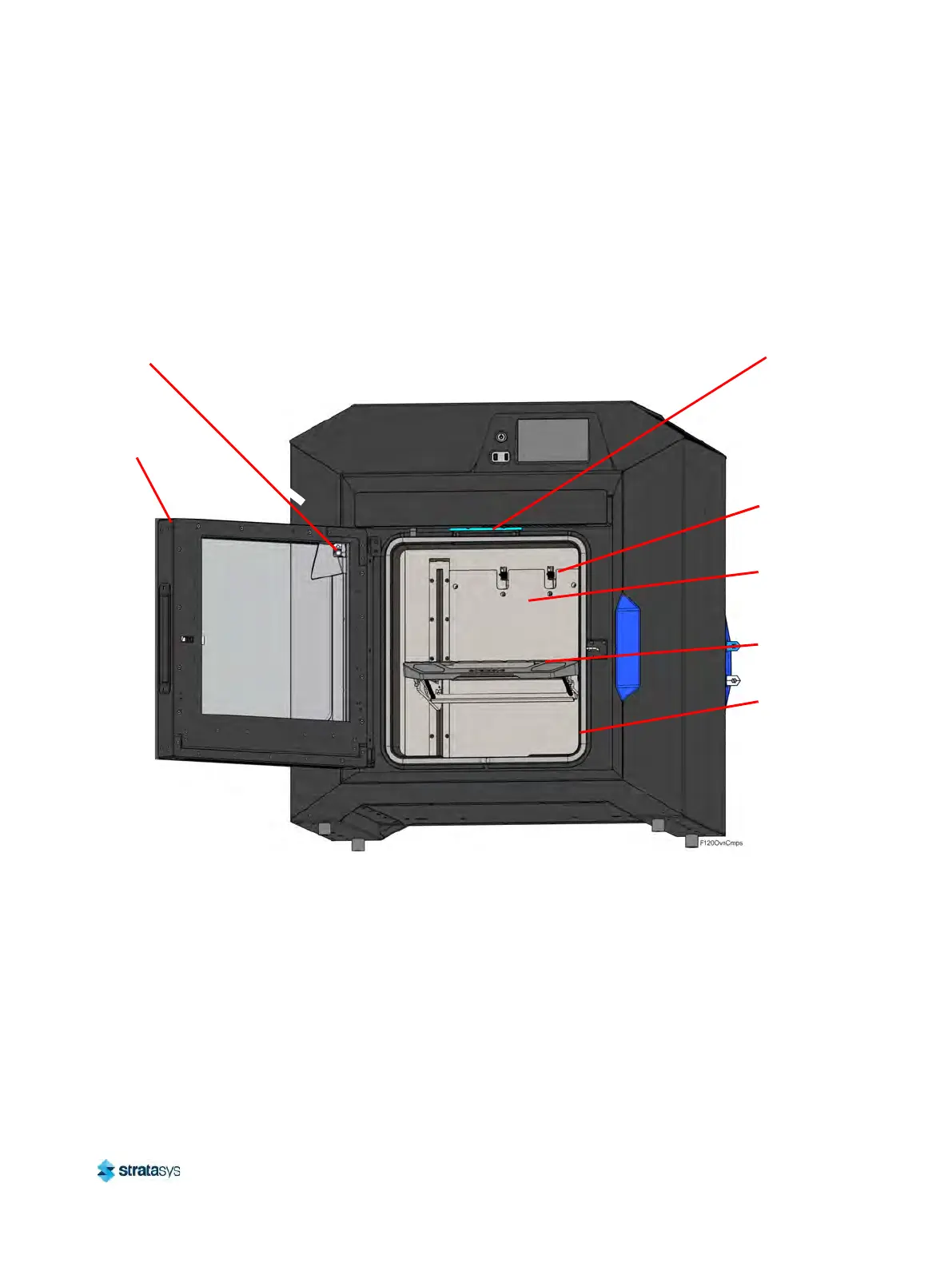

Figure 4: Oven Components
Oven Door
The oven door (see Figure 4) utilizes an electromagnetic lock along with optical sensors. The
oven door remains locked while the printer is building and automatically unlocks when it is safe
fo
r you to access the components of the oven. You cannot open the oven door when the printer
is building. The top cover will automatically unlock in conjunction with the oven door, allowing
you to manually open the top cover. The oven door must be open prior to opening the top
cover. The oven door gasket, which runs around the perimeter of the oven door frame, helps to
provide an airtight seal when the oven door is closed.
The oven door window is composed of 2 panes of tempered glass.
Tip Wipe
Assemblies
(model left,
support right)
Platen
Oven
Door
Camera
Oven
Light
Purge
Chute
Oven
Door
Gasket
