3 SYSTEM COMPONENTS
This chapter describes the components of the F120 printer. Information regarding the materials
and tips that can be used by the printer is also included in this chapter.
Printer Overview
Access Doors and Panels
This printer has been designed to allow easy access to the most frequently accessed areas on
the system. Doors and panels are highlighted in Figure 1 and Figure 2.

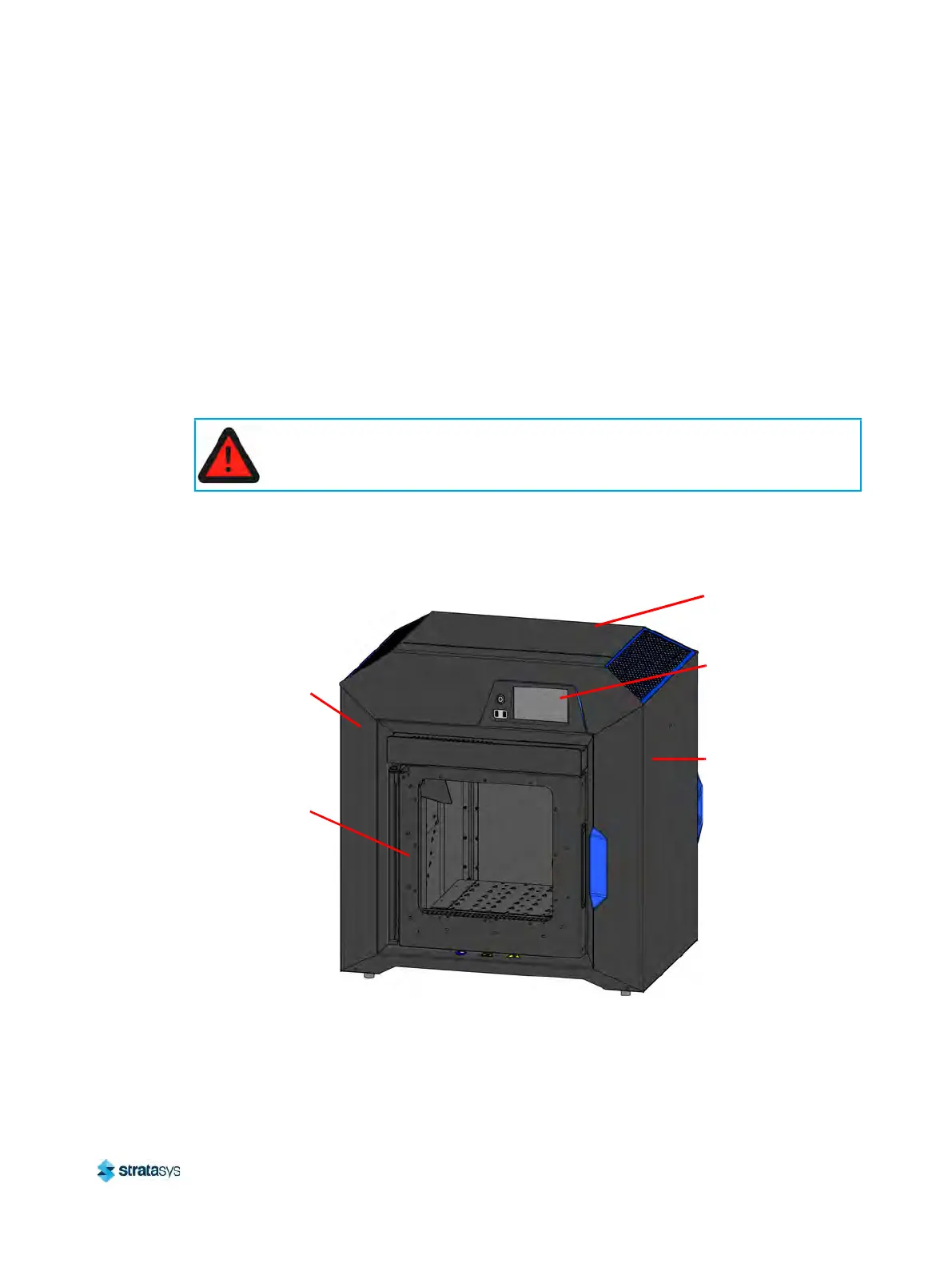

Figure 1: Access Doors and Panels - Front View
Do not energize when the rear panel is not secured in place.
Top Cover
Right Side
Panel
Interface
Panel
Oven
Door
Left Side
Panel
