Oven Components Oven Light
Page 23
© Copyright 2020 Stratasys. All rights reserved.
Oven Light
A single light pipe is mounted on the front upper edge of the oven and is used to illuminate the
oven chamber (Figure 6). The light pipe consists of nine high-temperature LEDs; each LED is
rated at 1-watt. The oven light is powered by 12 VDC.
The Light button within the Tools page indicates the current state of the oven light and allows
yo
u to manually turn the light ON of OFF (see “Light” (page 94)).

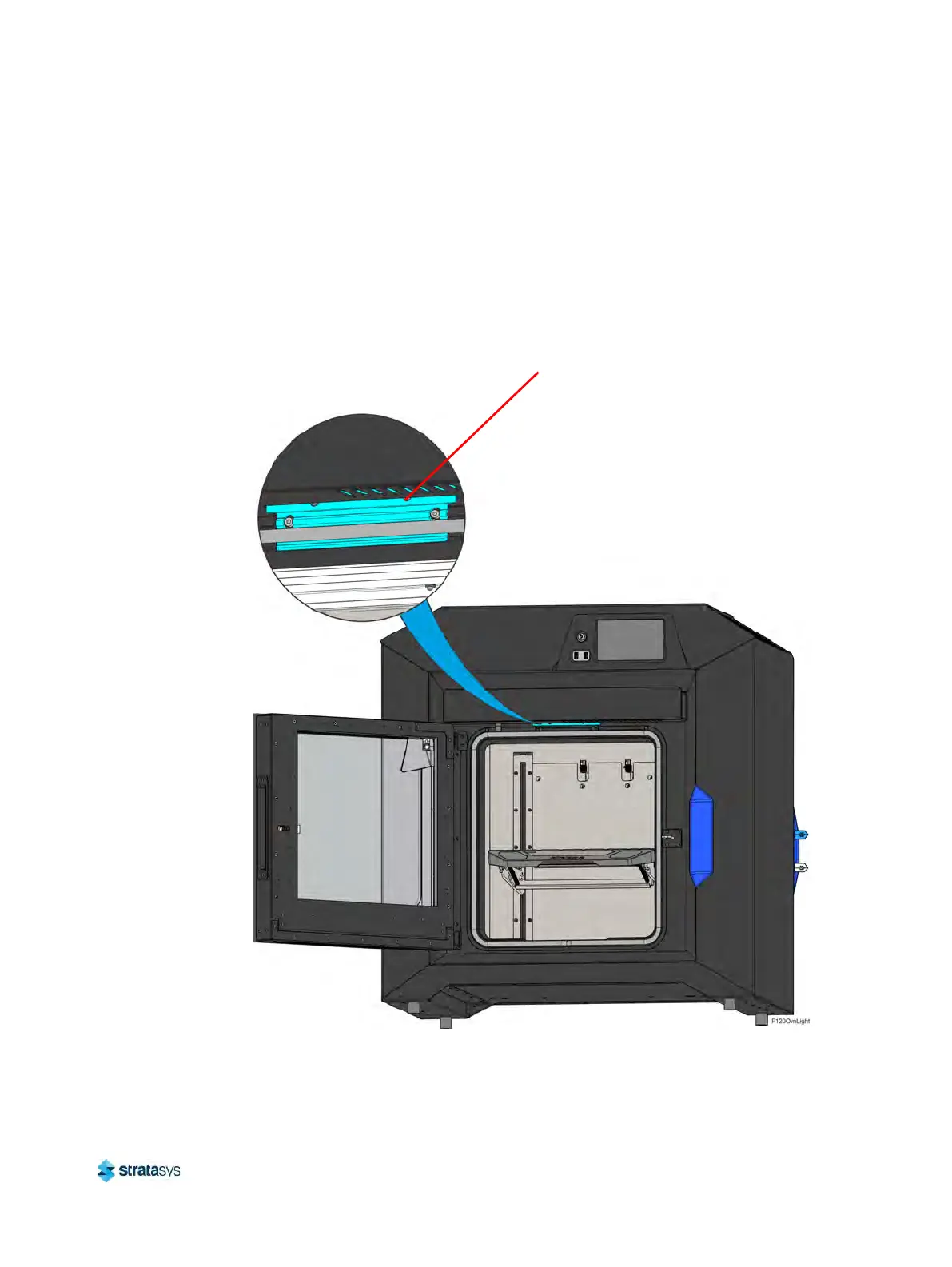

Figure 6: Oven Light Location
Oven Light
