Oven Components Tip Wipe Assemblies
Page 25
© Copyright 2020 Stratasys. All rights reserved.
Tip Wipe Assemblies
Two tip wipe assemblies are located in the rear of the oven, one for model and one for support.
Each assembly consists of a flicker and a brush. The tip wipe assemblies keep the printer’s tips
and tip shields free of purged material debris and material buildup.The tip wipe assemblies are
mounted behind the purge chute and extend through the purge chute via two slots cut into the
chute’s exterior.
After material is purged from a tip, the tip passes across the tip wipe assembly. The flicker cuts
th
e purged material from the end of the tip and knocks it into the purge chute. The brush cleans
the tip and tip shield. Purged material debris is guided down from the tip wipe assemblies to the
bottom of the oven chamber via the purge chute.

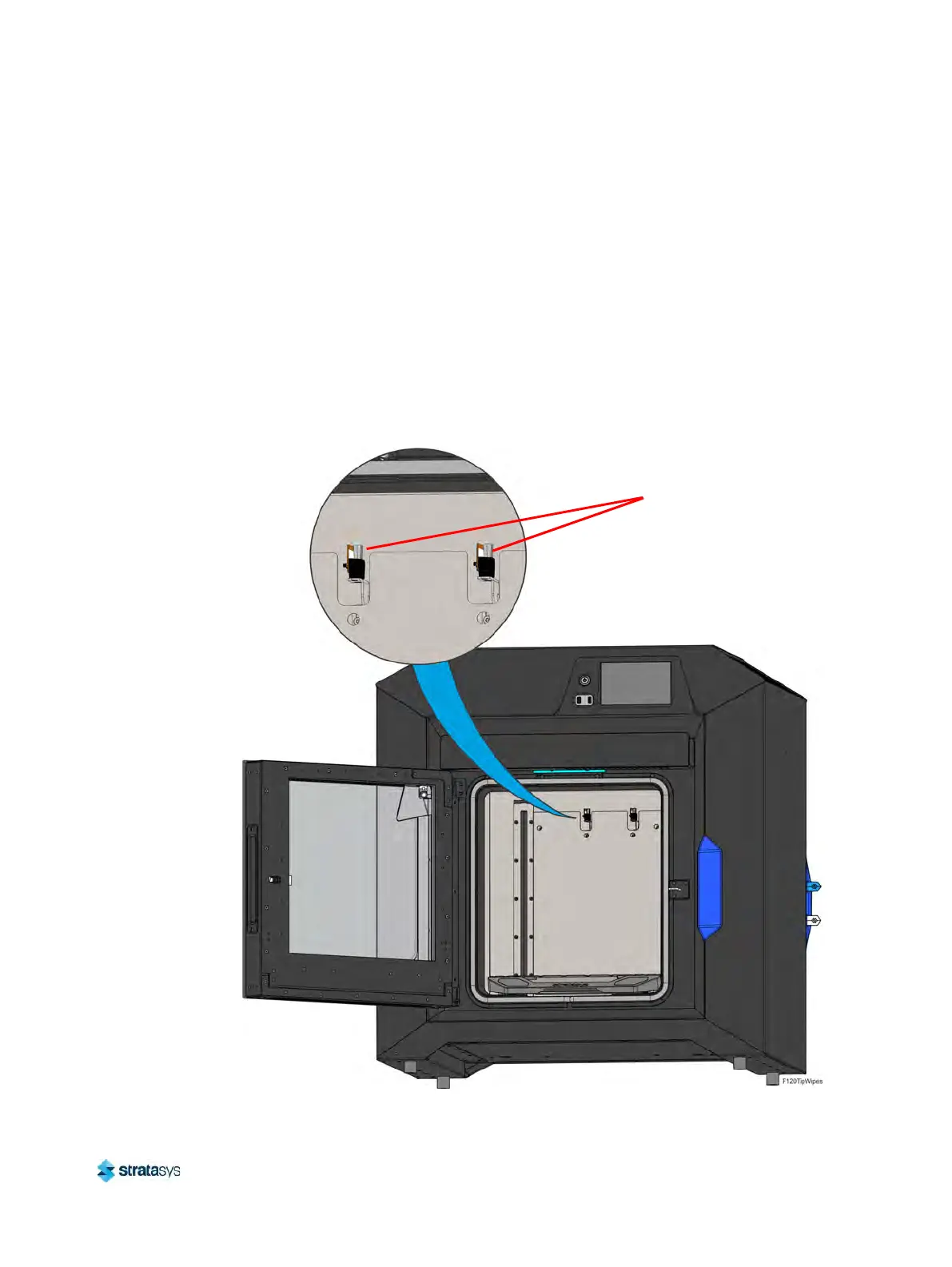

Figure 8: Tip Wipe Assemblies
Tip Wipe Assembly:
Model = left
Support = right
