Oven Components Purge Chute
Page 26
© Copyright 2020 Stratasys. All rights reserved.
Purge Chute
The purge chute is located in the back of the oven. Purged material debris is guided down from
the tip wipe assemblies to the bottom of the oven chamber via the purge chute. Material debris
exits the purge chute via an opening at the bottom of the chute and then accumulates in the
bottom of the oven chamber. Accumulated material debris should always be cleaned on a
weekly basis, or as needed if excessive accumulation occurs, see “Cleaning the Oven
Chamber” (page 154) for instructions.

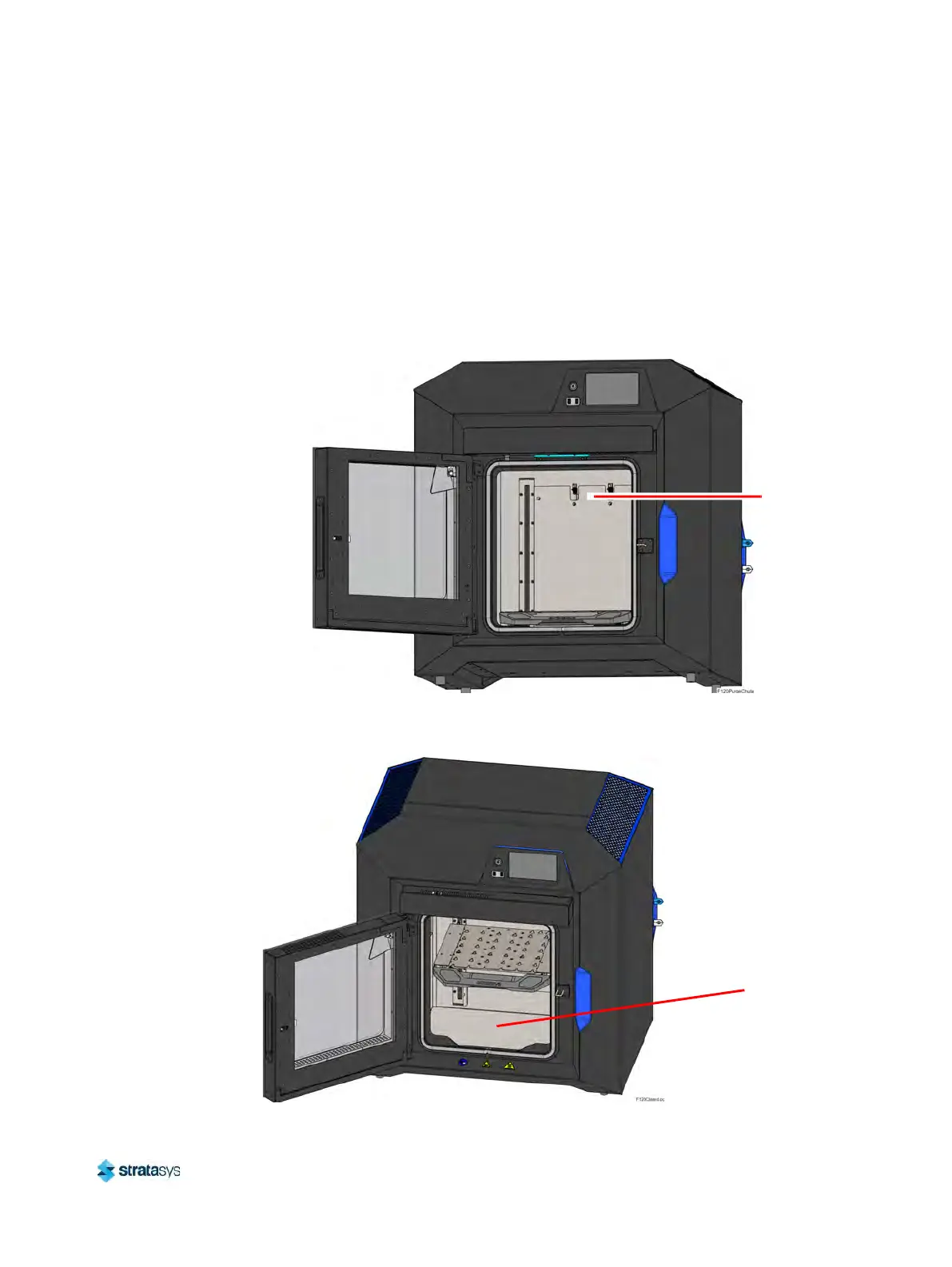

Figure 9: Purge Chute Location
Figure 10: Oven Chamber Cleaning Location
Purge
Chute
Purged
material
debris will
accumulate
here
