Platen
The steel platen provides the level surface on which parts are built. A substrate is securely
affixed to the platen using the substrate ejection handle. After placing a substrate on the platen
lifting up on the handle will lock the substrate into its build position; pressing down on the
handle will release the substrate from the platen for removal.
The tip offset calibration targets are located on the rear center portion of the platen. These
ta
rgets are used when determining the X and Y offset between model and support tips after
either head has been replaced (during an automatic Tip Offset Calibration).

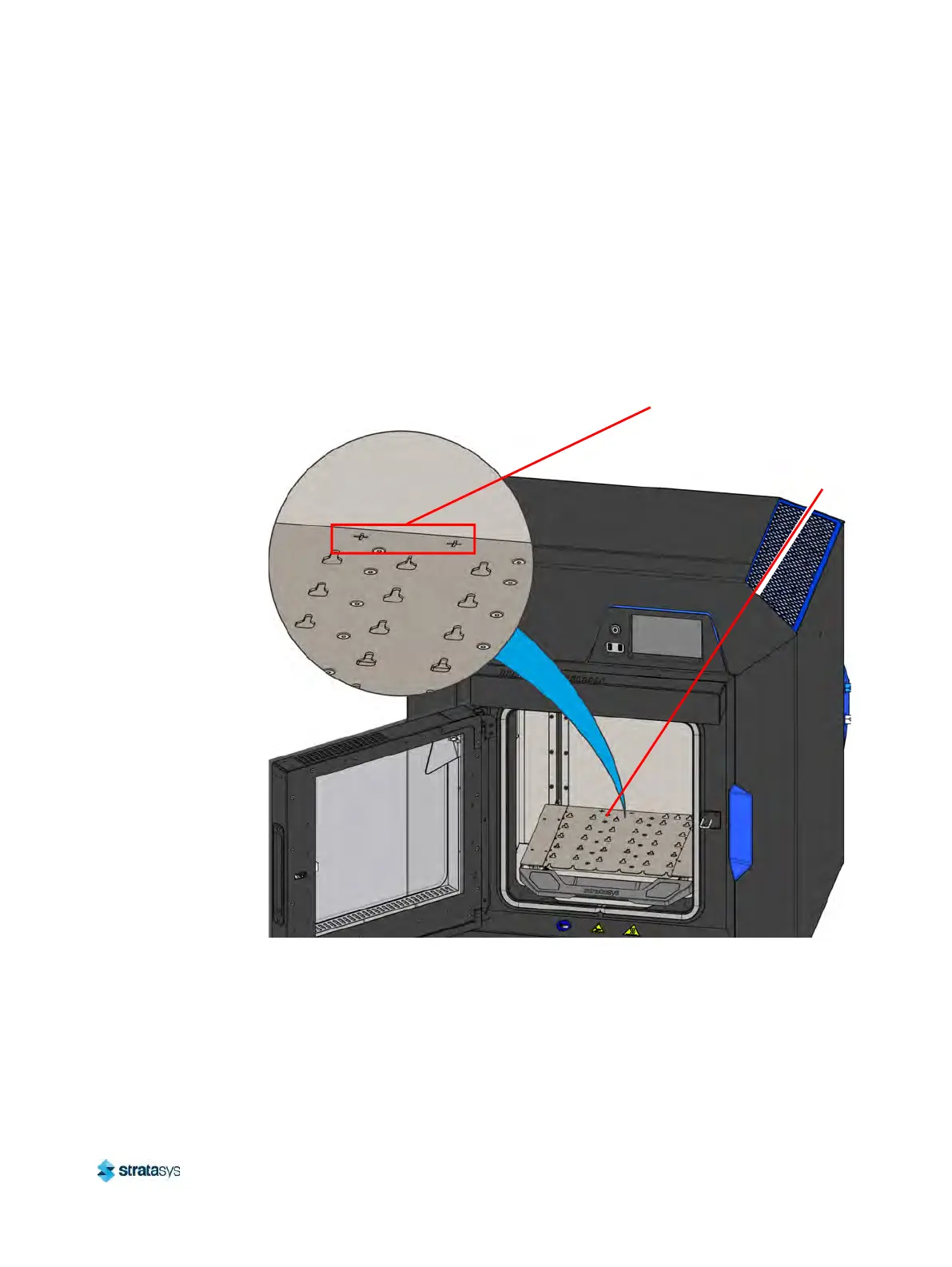

Figure 7: Platen Components
Platen
Tip Offset Calibration Targets
