Printer Overview Access Doors and Panels
Page 19
© Copyright 2020 Stratasys. All rights reserved.

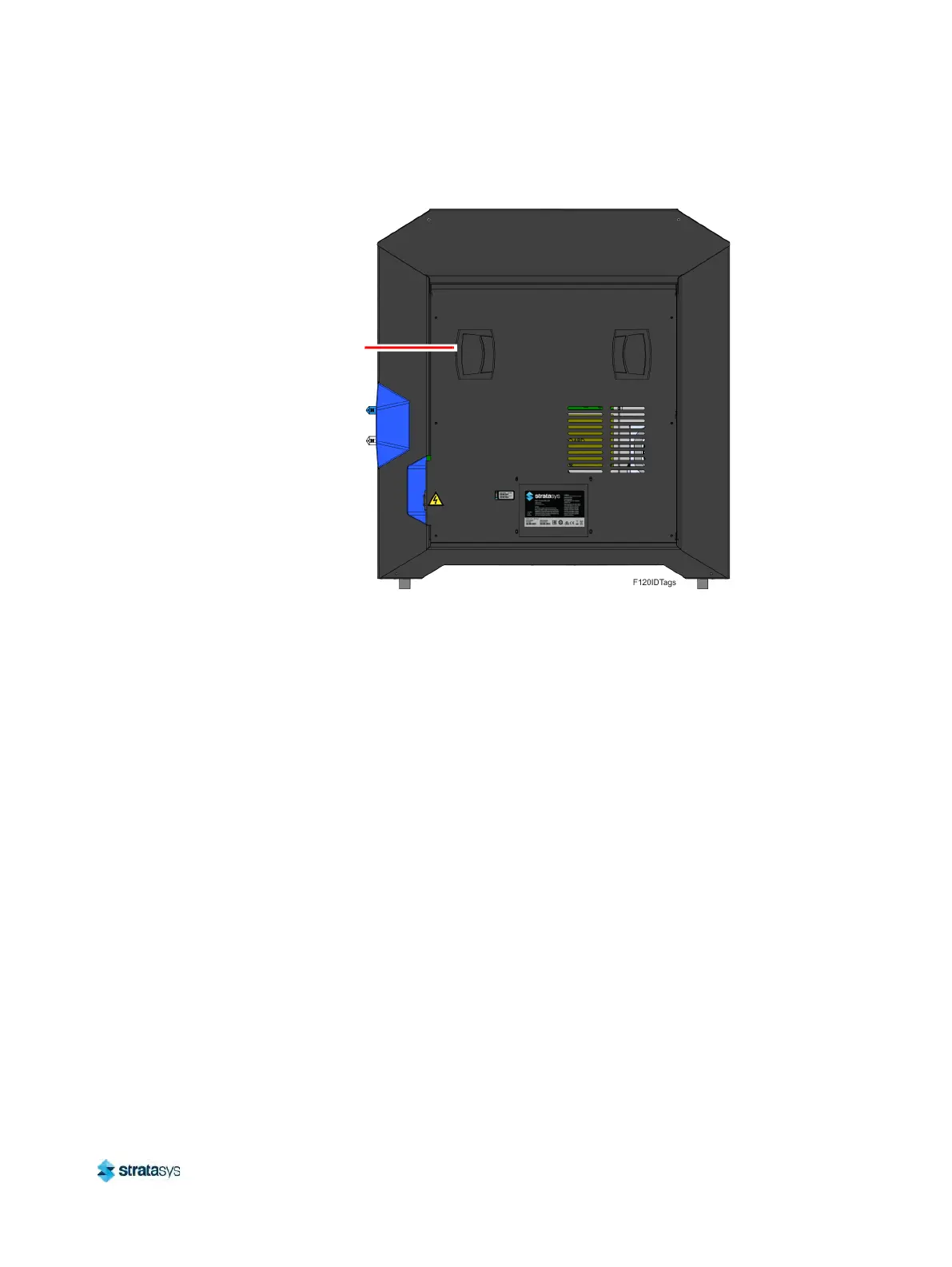

Figure 2: Access Doors and Panels - Rear View
Top Cover
Allows access to the gantry and head assemblies.
Oven Door
Allows access to the platen, tip wipe assemblies, purge area, and completed parts for removal.
The printer’s camera is also housed within the oven door.
Right & Left Side Panels
The right and left side panels provide access to the oven chamber fans.
Rear Panel
The rear panel provides access to the electronics bay.
Rear
Panel
