• Type: the type of material in the material coil box. If applicable, material color is also
indicated (material color is also indicated within the center of the Material Status Icon within
the left portion of the screen).
• Current Volume: current volume of material in the material coil box in cubic inches. This is
a
lso indicated via the percentage displayed within the Material Status Icon within the left
portion of the screen.
• Total volume: total volume of material available, in cubic inches, when the material coil box
w
as initially installed.
The buttons directly below this information allow you to load or unload material as needed or
ca
ncel a load/unload in process (see “Material Load Controls” (page 64) for details). Please
note that the functionality and visibility of these buttons will depend on the material load status.
The left portion of the screen displays the same Materials Status Icon as is displayed on the
Ma
terials page (see Figure 25 (page 54)). The number displayed within the top of the icon
indicates which material port the material is loaded into. The colored bars (displayed within the
ce
nter of the icon) and percentage (displayed at the bottom the icon) indicate the current
volume and color of the material in the material coil box. As material is used to build a part, the
number of colored bars and the percentage will decrease to indicate the amount of material
consumed. The name of the type of material in the box is displayed at the bottom of the icon.
To close this page and return to the main Materials page, press the Ba
ck button within the
header of the page.

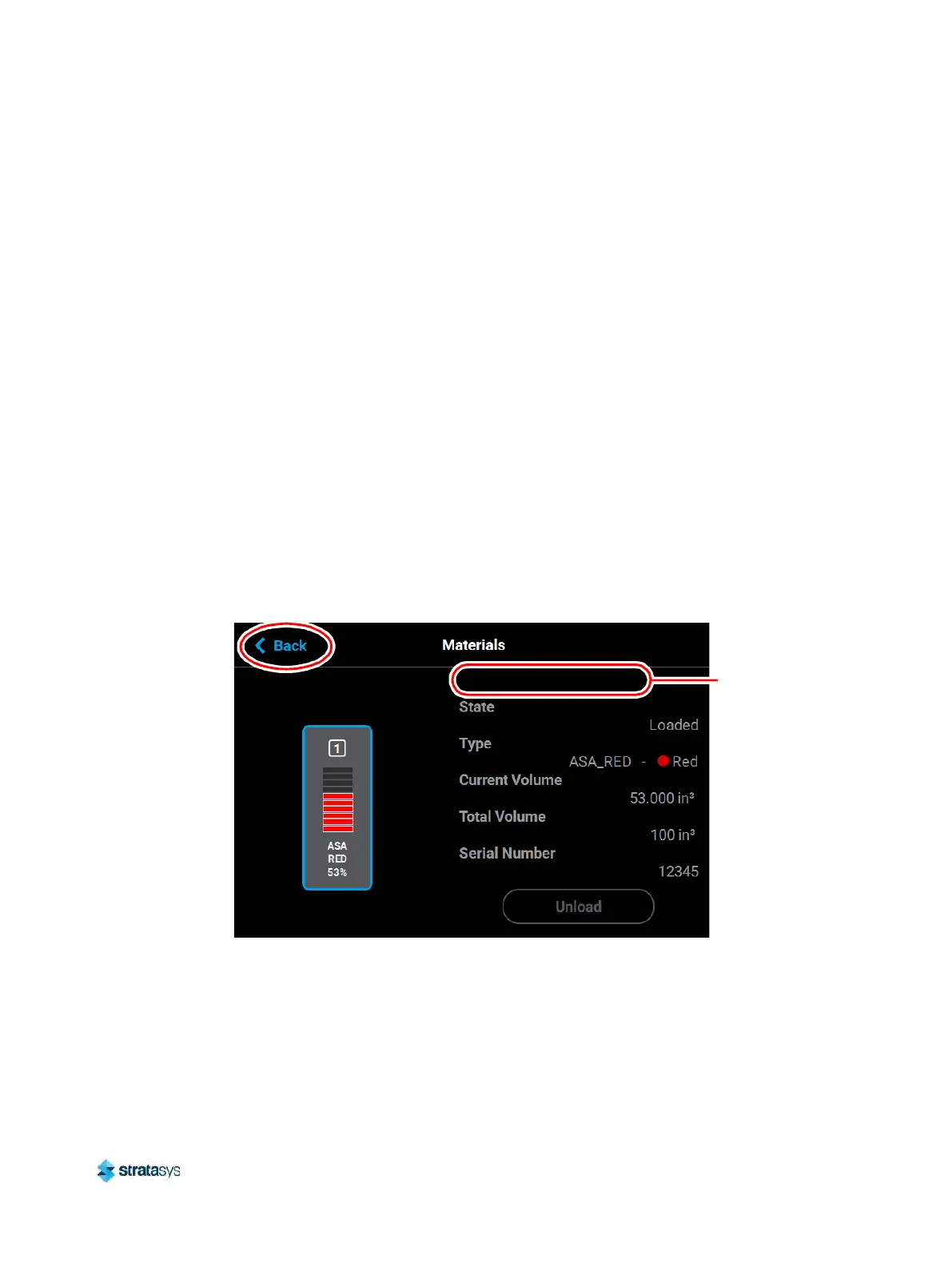

Figure 29: View Material Details
Warning/error
information
displayed here
