Objet1000 Plus User Guide 6 Operating and Maintaining the Objet1000 Plus 3DPrinter
DOC-06810 Rev.B 6-35

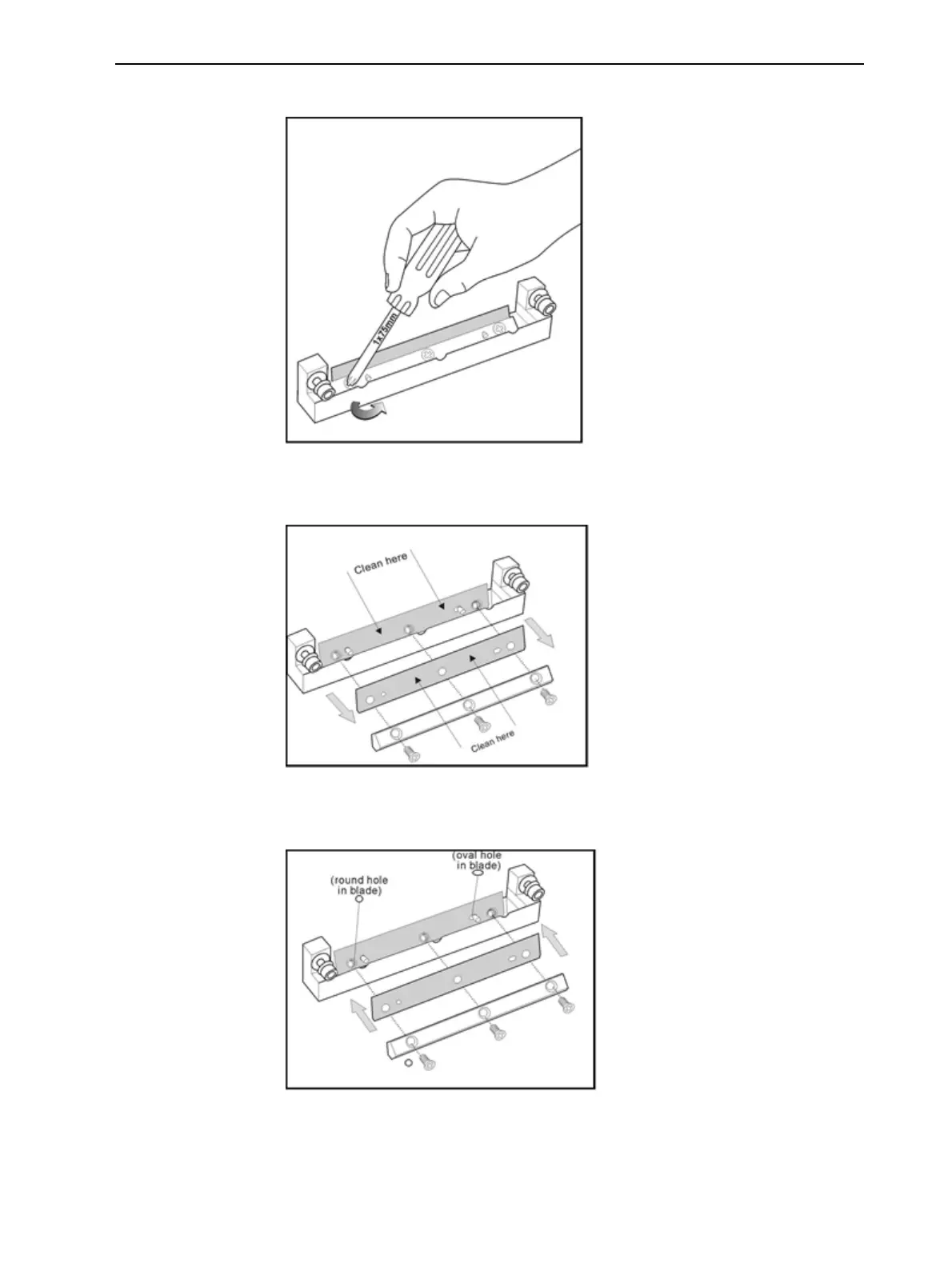

4. Removethescrewsthatsecuretherollerscraperassembly.
Figure6-39Removingtherollerscraperscrews
5. Removethescraperbladeanddiscardit.
Figure6-40Removingtheoldrollerscraperblade
6. Placethenewscraperbladeontothepinsintheholder,asshown.
Figure6-41Insertingthenewrollerscraperblade
