Objet1000 Plus User Guide 6 Operating and Maintaining the Objet1000 Plus 3DPrinter
DOC-06810 Rev.B 6-63

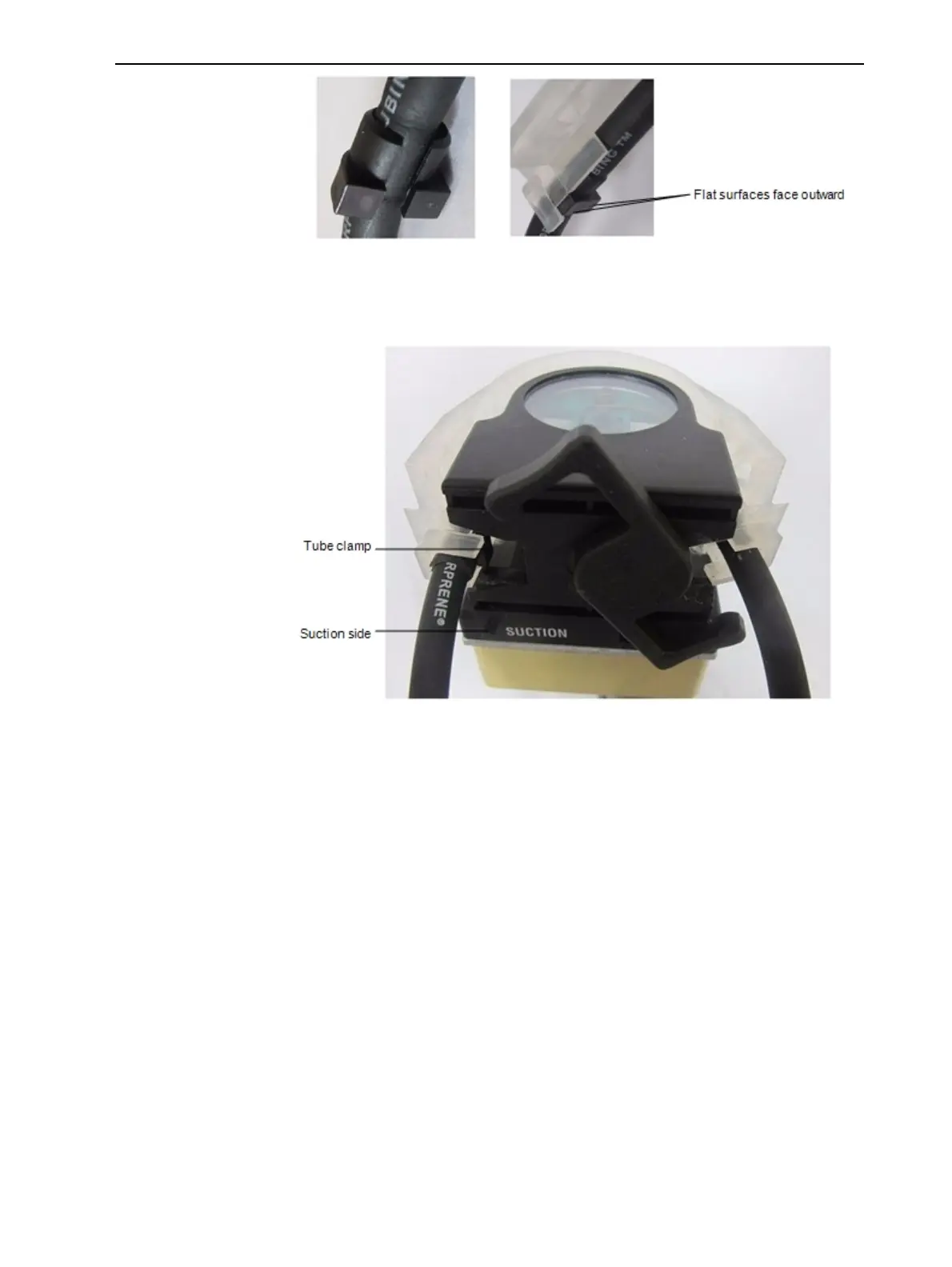

Figure6-96Left: Tubeclamps; Right:Tubeinsertedintotubeholders
12.Insertthetubeholderintothepumpassembly,makingsurethattheside
withtheclampisonthesideofthepumpmarkedSUCTION.
Figure6-97TubeclamponSUCTIONsideofpump
13.Closethetubelatch.
