5. Releasethetubelatch,asshown.

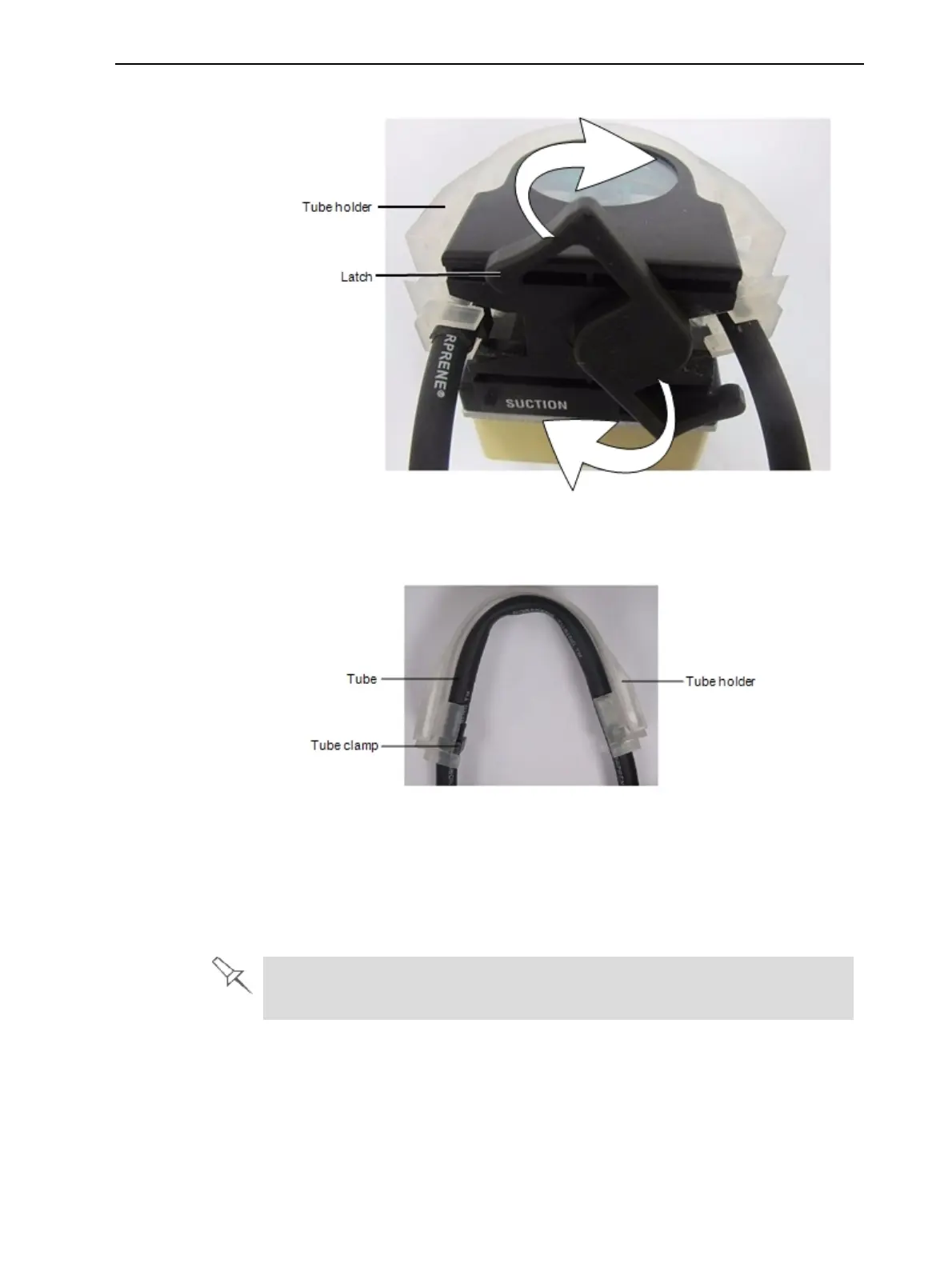

Figure6-94Releasingthetubelatch
6. Separatethetubeholderfromthepumpassembly.
Figure6-95Tubeholderremovedfrompumpassembly
7. Removethetubefromthetubeholderandsavethetwopartsoftheclamp
forre-assembly.
8. Carefullydetachthetubeatbothends.Usethecleaningclothstoprevent
materialleakingfromthetubes.
9. Discardtheoldtubeandthecleaningcloths.
Theseitemscontainuncuredprintingmaterial.Disposeofthemin
accordancewithenvironmentalandsafetyrequirements.
10.Attachtheendsofthenewtube.
11.Placethetubeclampontothetubeasbefore,andinsertthetubeintothe
tubeholder,makingsurethattheflatsurfaceoftheclampfacesoutward.
