Objet1000 Plus User Guide 5 Using Objet Studio
DOC-06810 Rev.B 5-15
Iftheobjectisoveracertainsize,theLoading Placed Elementsdialogbox
appears.


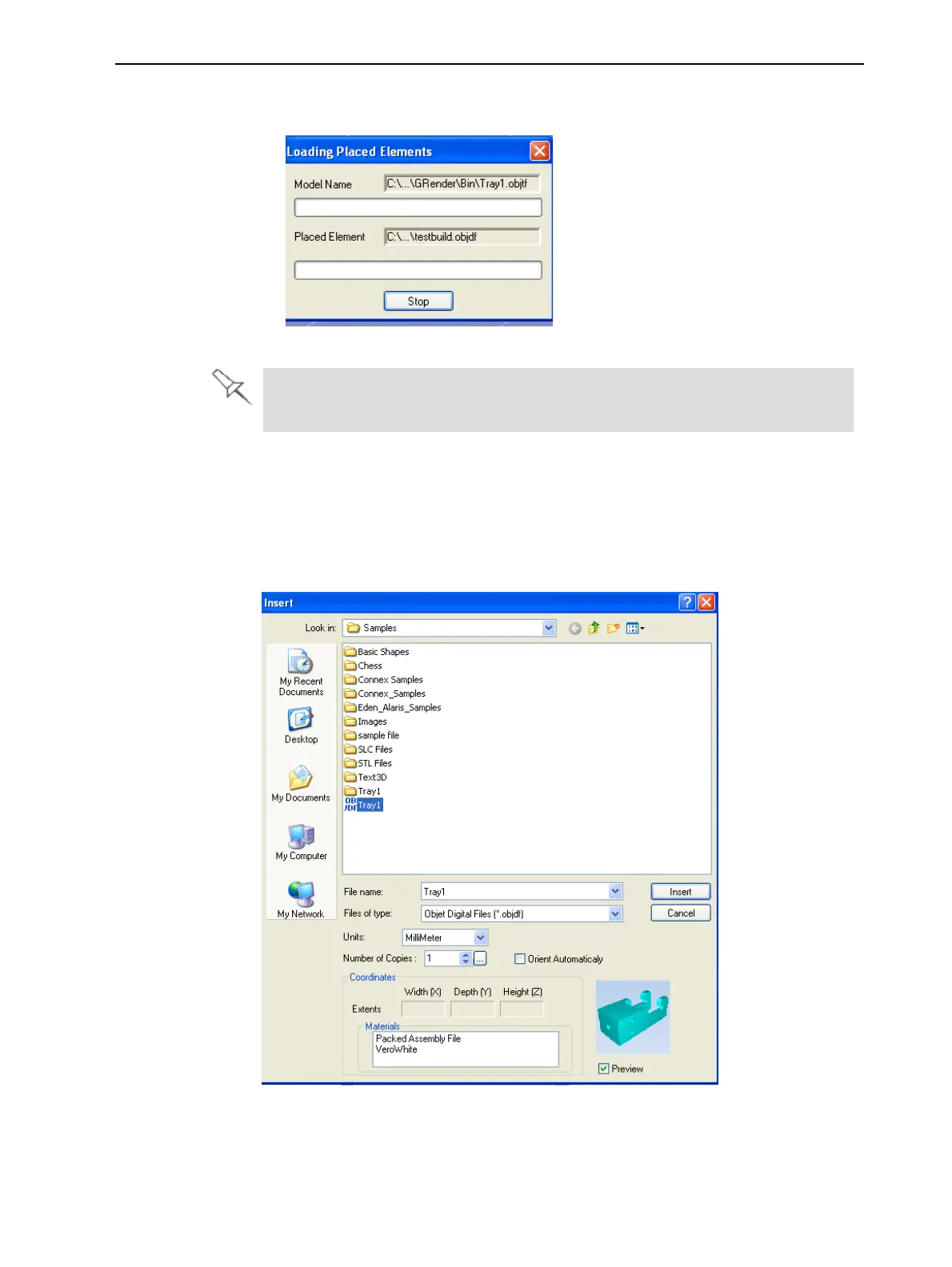

Figure5-14Loading Placed Elementsdialogbox
YoucanspeeduptheopeningoflargefilesbychangingtheLarge Files
settings—see"LoadingLargeFiles"onpage5-47.
OpeningobjdfFiles
Beforeplacingobjdffilesonthebuildtray,ObjetStudiomustextractthe
componentstlfilestogetherwithinformationabouttheirrelativeposition
andmodelmaterials.Todothis,ObjetStudiocreatesafolderwiththesame
nameastheobjdf file,inthesamelocation.
Figure5-15Insertdialogbox(objdffile)
