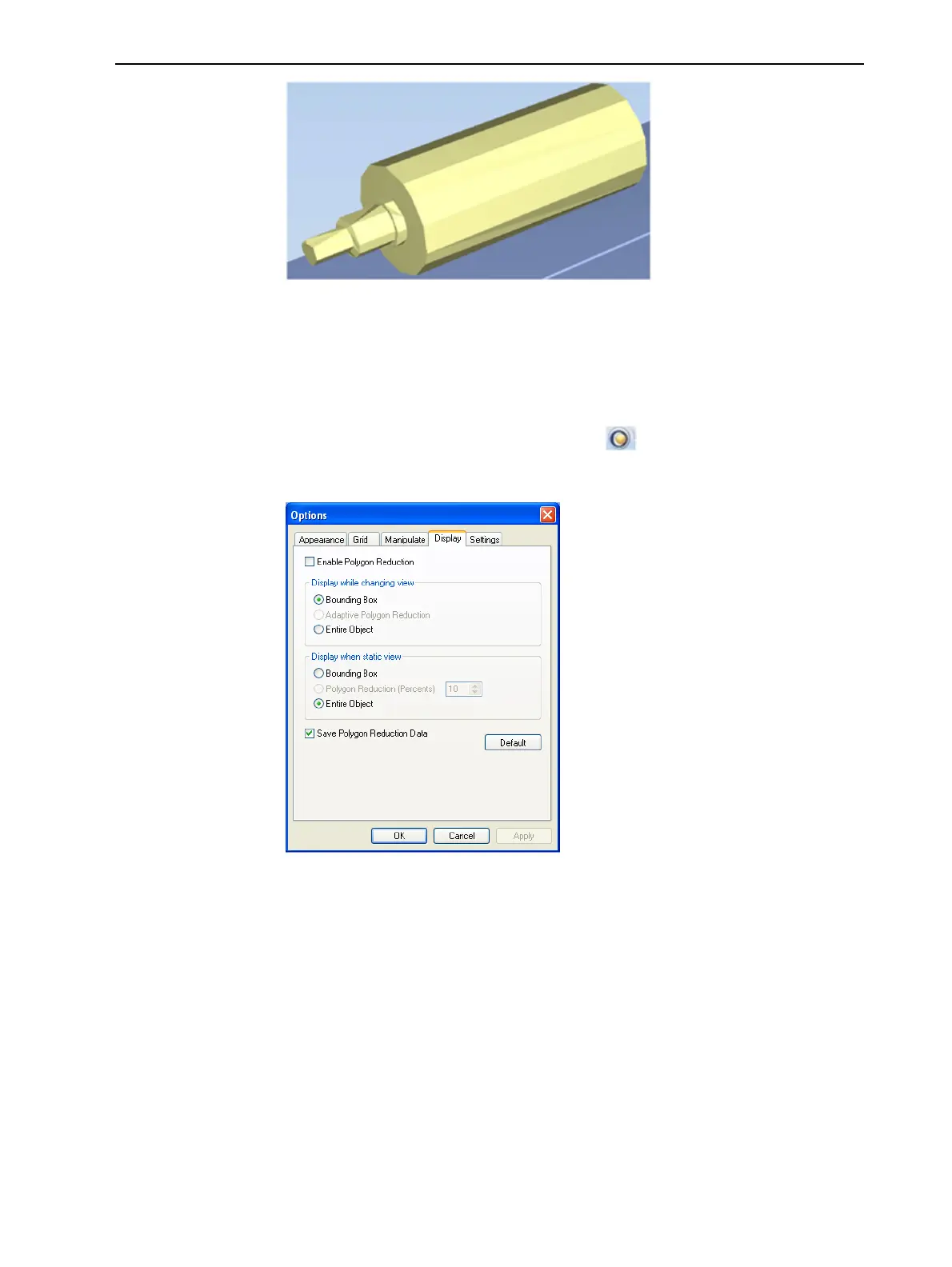

Figure5-63Objectdisplayedwithonlyfivepercentofitspolygons
showing
Tousepolygonreduction:
1. FromtheToolsmenu,selectOptions.
or—
FromtheObjetStudioCommandsmenu ,clickOptions.
2. IntheOptionsdialogbox,displaytheDisplaytab.
Figure5-64Optionsdialogbox,Display tab
3. SelectEnablePolygonReduction.
4. SelectPolygonReduction(Percent).
5. Enterthepercentageoftotalpolygonstodisplay.
WhenyouclickApply,thedisplaychanges.
Note: Thesettingaffectsthestaticdisplay(whentheobjectisnotbeing
moved).
6. Setdisplayoptionswhentheobjectisbeingmoved(Display while
changing view):
❒ Bounding Box—Aboxrepresentingtheobject’smaximumdimensions
isdisplayed.
