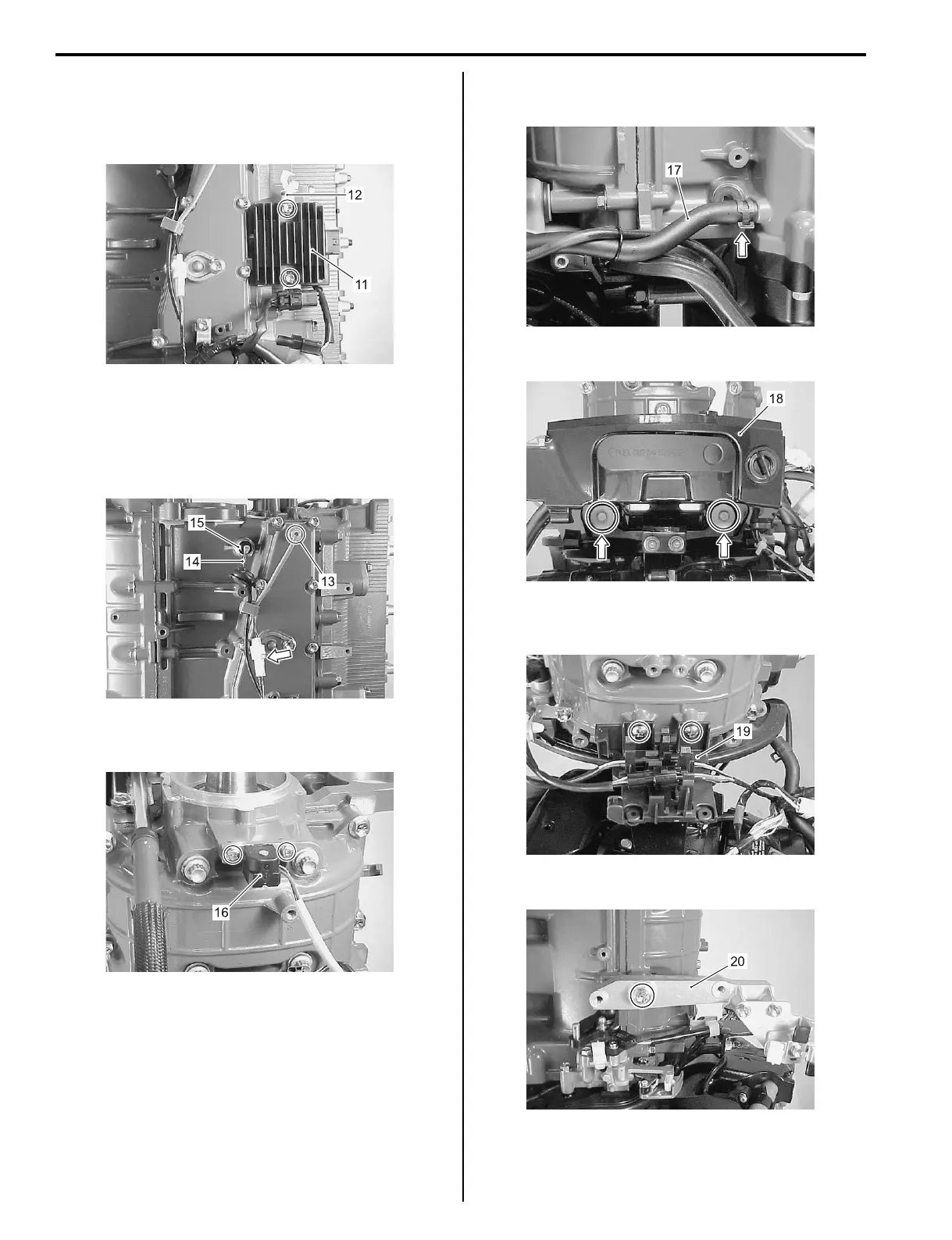

1D-13 Power Unit Mechanical:
13) Remove the bolts and rectifier/regulator (11).
Remove the bolt securing lead wire clamp plate (12).
Refer to “Rectifier/Regulator Removal and
Installation” in Section 1K (Page 1K-7).
14) Disconnect EX. manifold temperature sensor lead
wire connector.
Remove EX. manifold temperature sensor (13).
15) Loosen screw and disconnect blue lead wire (14)
from oil pressure switch (15).
16) Remove screws and CKP sensor (16).
Disconnect CKP sensor lead wire connector.
17) Disconnect water flush hose (17) from cylinder
block.
18) Remove the two bolts securing front panel (18).
19) Remove the screws securing the hose and harness
holder (19).
20) Remove the bolt and throttle lever holder (20).
