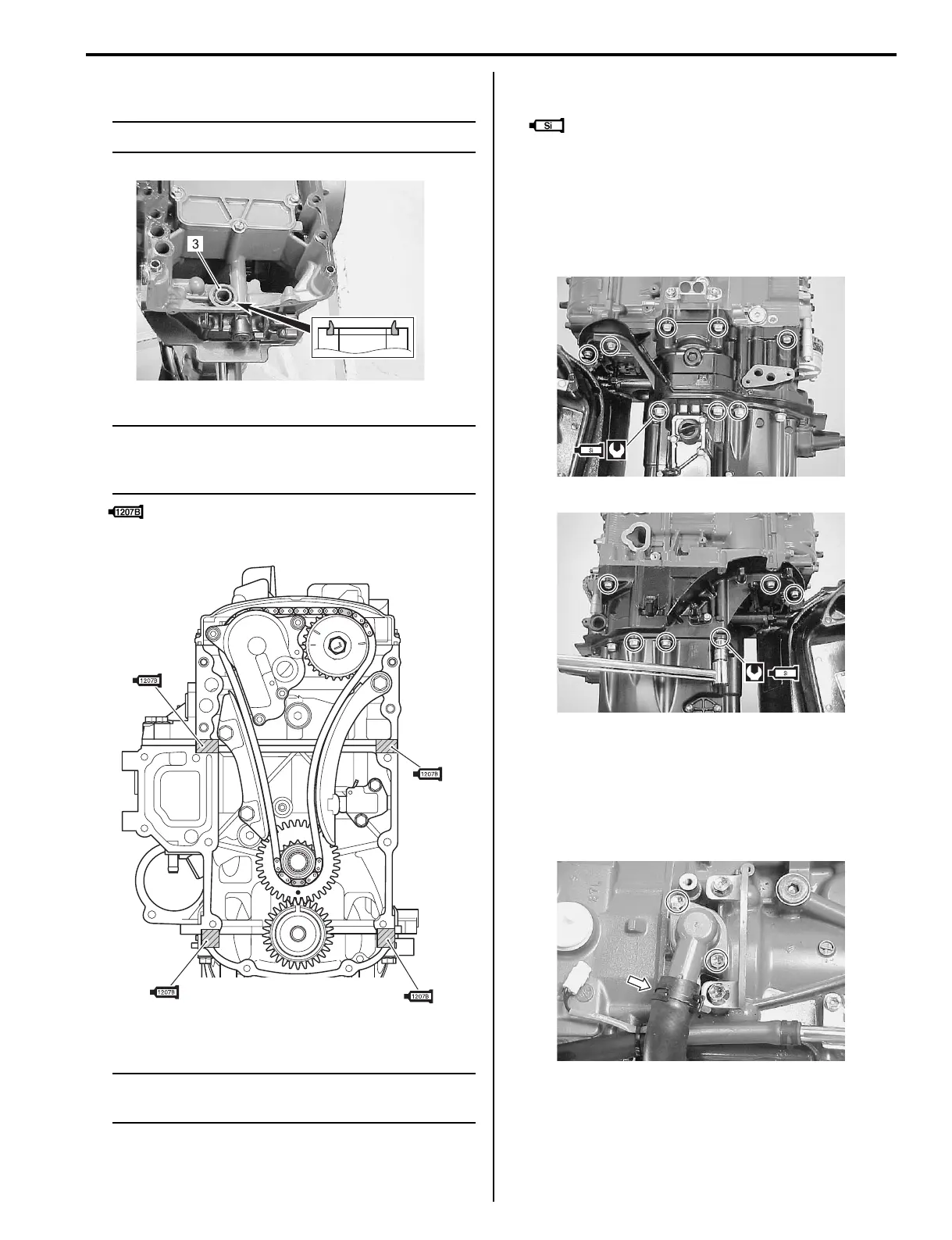

Power Unit Mechanical: 1D-16
• Install the engine holder seal (3).
NOTE
Install seal (3) with lip facing upward.
NOTE
Before installing power unit, apply sealant to
the four hatched areas shown in the
illustration at below.
: Sealant 99000–31140 (SUZUKI Bond
1207B (100 g))
• Lower the power unit onto engine holder.
NOTE
Rotate crankshaft to aid alignment of
driveshaft and counter shaft splines.
• Apply suzuki silicone seal to power unit mounting
bolts and tighten bolts to specified torque.
: Sealant 99000–31120 (SUZUKI Silicone
Seal (50 g))
Tightening torque
Power unit mounting bolt (8 mm): 23 N·m (2.3
kgf-m, 16.5 lbf-ft)
Power unit mounting bolt (10 mm): 50 N·m (5.0
kgf-m, 36.0 lbf-ft)
Thermostat
• Assemble thermostat, seal and thermostat cover to
cylinder block and secure with bolts.
Refer to “Thermostat Removal and Installation” in
Section 1F (Page 1F-3).
I9J011140155-01
I9J011140022-02
I9J011140156-03
I9J011140157-03
I9J011140158-01
To Next Page
