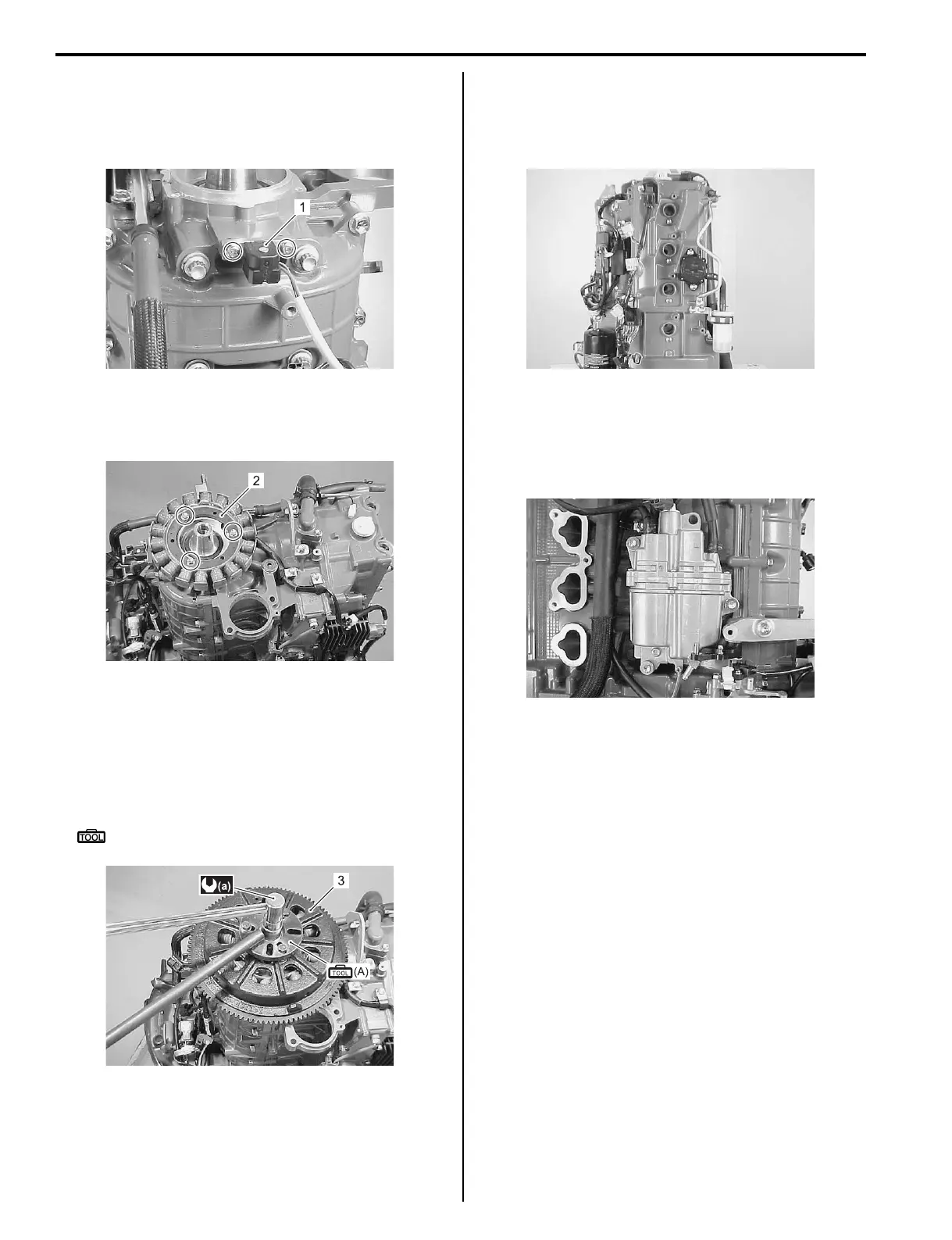

1D-17 Power Unit Mechanical:
Flywheel
• Install CKP sensor (1).
Refer to “CKP Sensor Removal and Installation” in
Section 1C (Page 1C-10).
• Install battery charge coil (2).
Refer to “Battery Charge Coil Removal and
Installation” in Section 1K (Page 1K-6).
• Install flywheel (3) and tighten flywheel bolts to
specified torque.
Refer to “Flywheel Removal and Installation” in
Section 1K (Page 1K-5).
Tightening torque
Flywheel bolt (a): 196 N·m (19.7 kgf-m, 142 lbf-ft)
Special tool
(A): 09930–48720 (Flywheel holder)
Cylinder head cover
• Install cylinder head cover.
Refer to “Cylinder Head Cover Removal and
Installation” (Page 1D-2).
Vapor separator
• Install vapor separator.
Refer to “Fuel Vapor Separator Removal and
Installation” in Section 1G (Page 1G-17).
I9J011140159-01
I9J011140160-01
I9J011140161-01
I9J011140162-02
I9J011140163-01
