097-93100-01 Revision C – February, 2010 TimeCreator 1000 User’s Guide 275
Appendix C Installing the Two-Way GPS Antenna
Making GPS Connections
Making GPS Connections
To connect the GPS antenna signal, you must install a GPS antenna using the
procedure in this document.
Installing the GPS Antenna
These installation procedures are to be used in support of local company
procedures and the Installation Job Specification.
Prior to installing the antenna, the site, antenna location, lightning suppressor
location, cable route, and all other details should be planned. Use Figure C-1 as a
guide to locating the antenna.

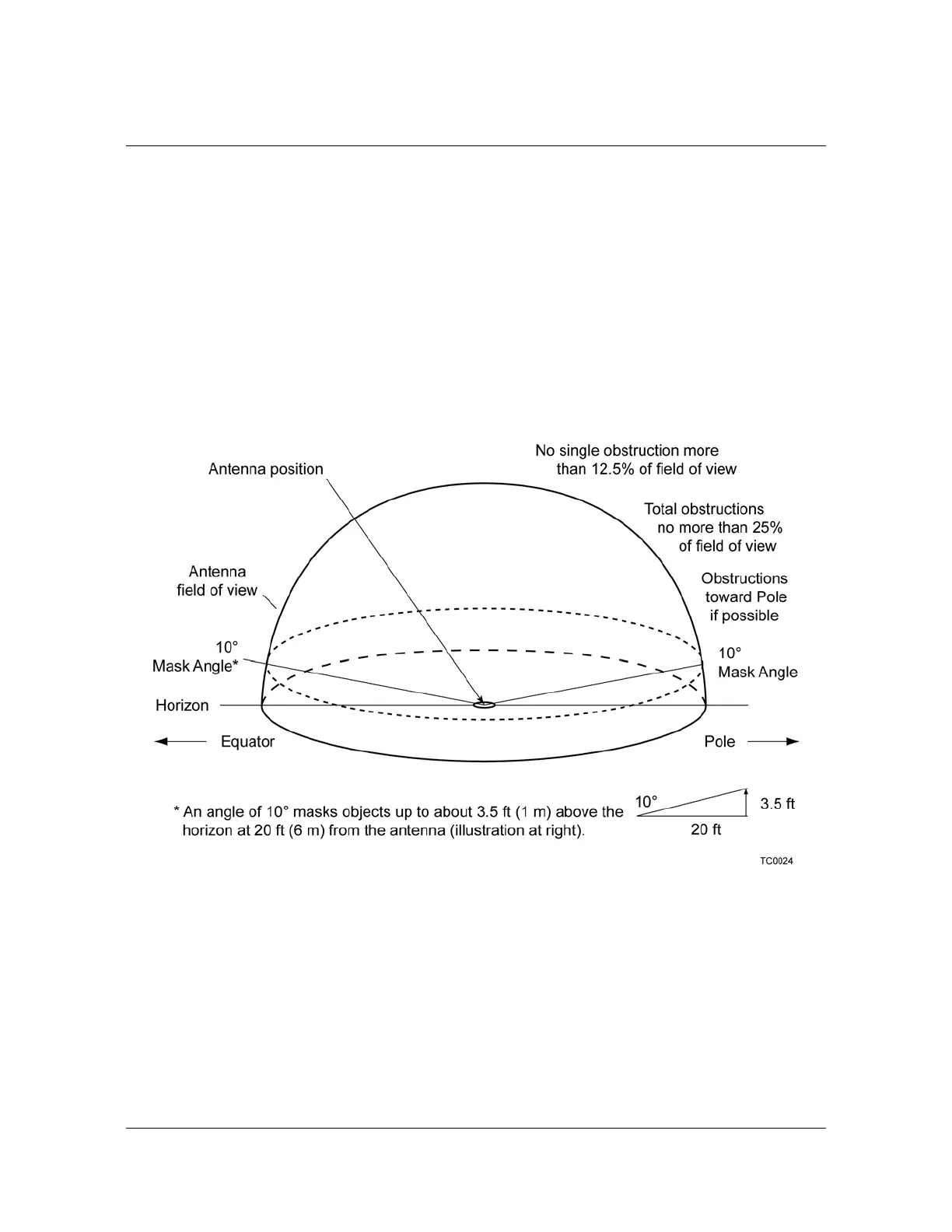

Figure C-1. Locating the GPS Antenna
To install the antenna, refer to Figure C-2, and perform the procedure in this section.
Ensure all user-supplied materials are available. The maximum distance between
the antenna and the device is approximately 985 feet (300 m). The minimum cable
length is 6.6 feet (2 m). The GPS Antenna should always be as close to the
TimeCreator 1000 as practical.
