278 TimeCreator 1000 User’s Guide 097-93100-01 Revision C – February, 2010
Appendix C Installing the Two-Way GPS Antenna
Making GPS Connections

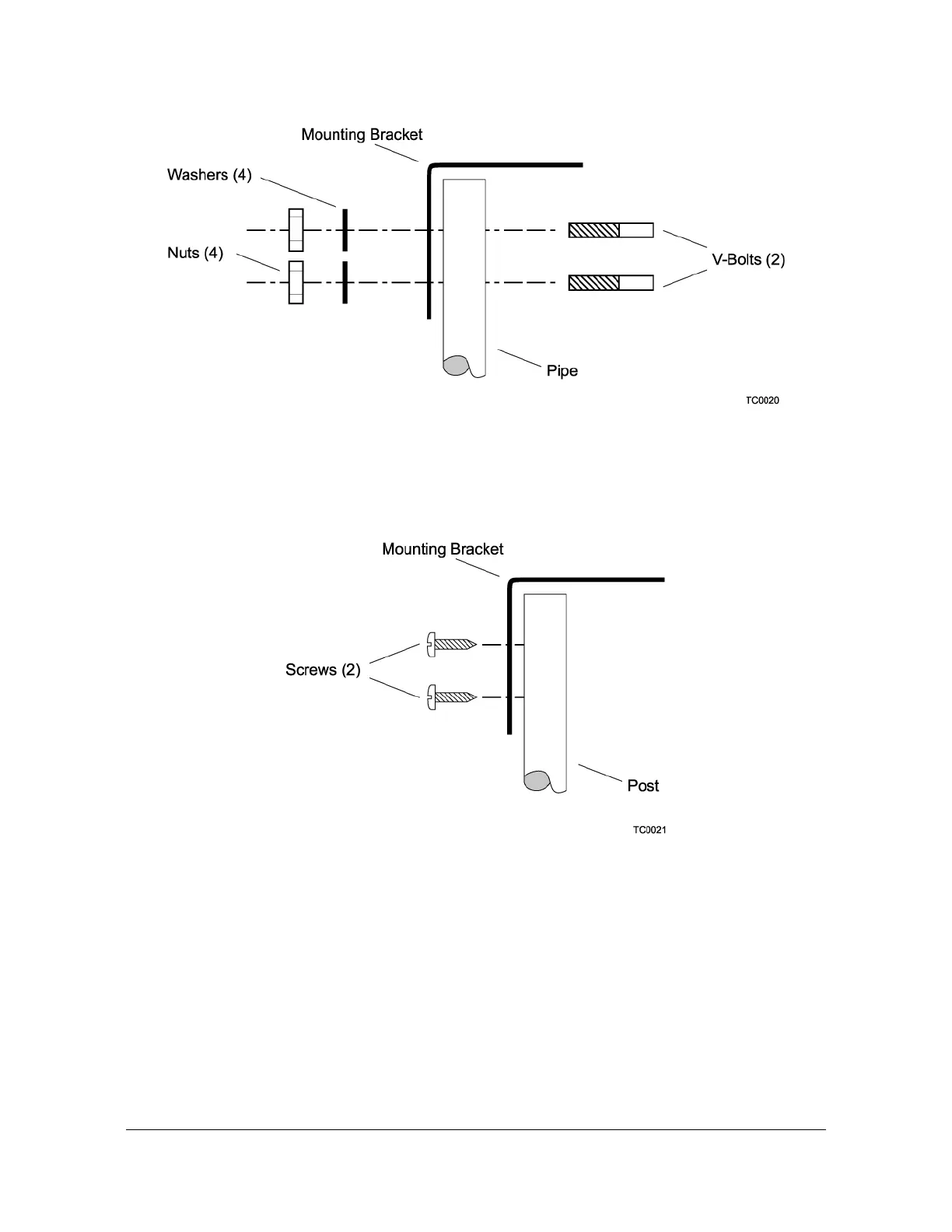

Figure C-3. Installing the Antenna Bracket on a Pipe
If you are mounting the bracket to a wood post, assemble as shown in
Figure C-4. Install the provided two self-tapping screws in two diagonally
positioned mounting bracket slots, and attach to the post.
Figure C-4. Installing the Antenna Bracket on a Post
2. Mount the antenna and mast assembly to the “L” bracket.
3. Connect the mast to the flange using PVC glue.
4.
Feed an RG58 (060-58545-xx) cable through the bottom of the mast as
illustrated.
See Table C-1 for specific cable lengths.
5. Connect the cable to the antenna “pigtail” and pull the cable back through the
mast.
