Appendix C Installing the Two-Way GPS Antenna
Making GPS Connections
6. Mount the antenna and mast assembly to the “L” bracket using the supplied nuts,
bolts, and washers, as shown in Figure C-5.

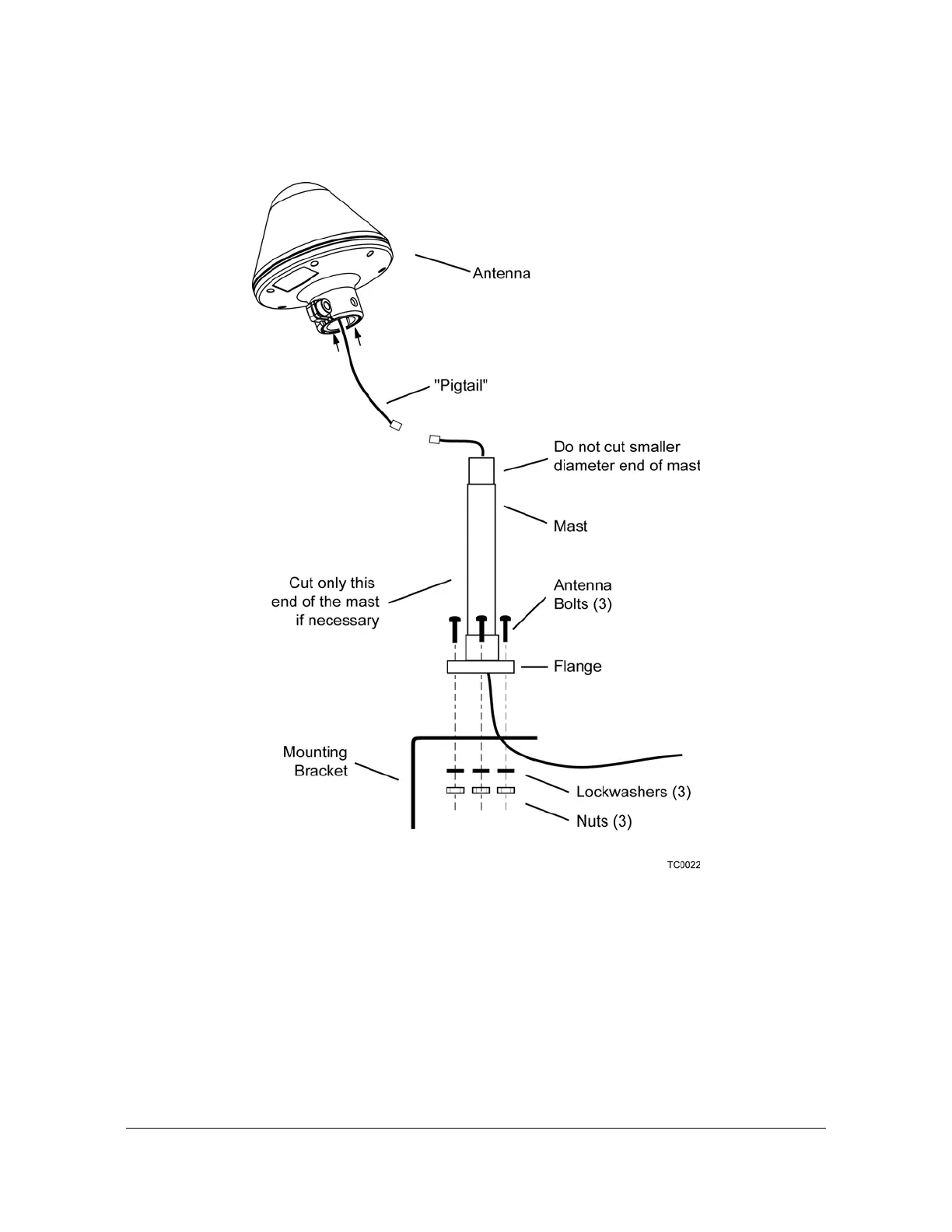

Figure C-5. Attaching the Antenna to the Bracket
7. Using a plumb line or bubble level, ensure the antenna is within 5° of vertical
(perpendicular to the horizon), and tighten the mounting bracket bolts.
8. Bolt the lightning suppressor mounting plate to a flange that is attached to a valid
earth ground. The roof ring ground system, a grounding plate, and building
structural steel are examples of valid earth ground points. If the mounting plate
cannot be bolted to a valid earth ground, bolt the mounting plate to a point within
15 feet (4.6 m) of the chosen valid earth ground. A minimum 30-foot (9 m) bend
radius is required when installing the ground wire. If the mounting plate is to be
