Appendix C Installing the Two-Way GPS Antenna
Making GPS Connections

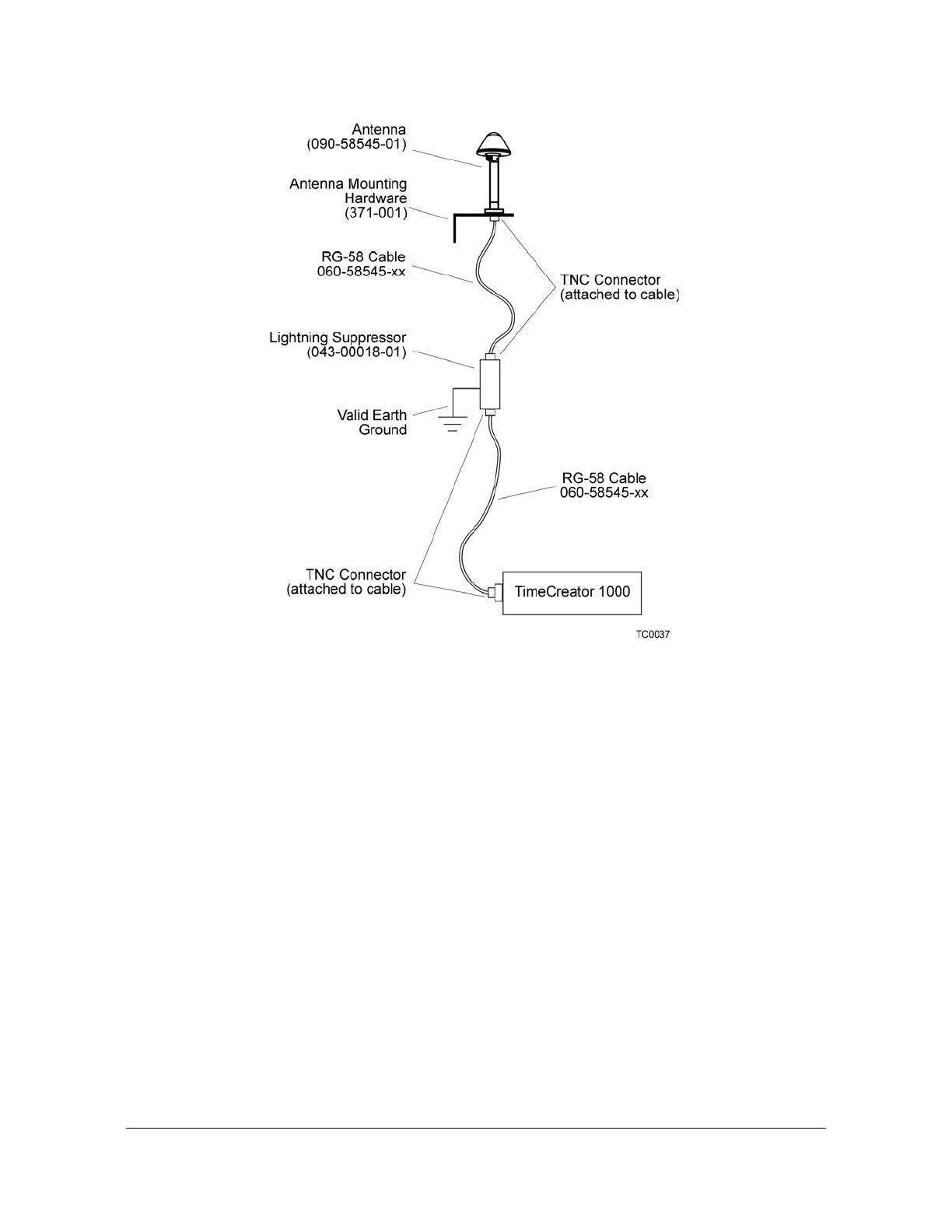

Figure C-2. Antenna-to-Device Cabling
To install the antenna:
1. Attach the antenna mounting bracket to a 1-inch (2.5 cm) diameter pipe or wood
post.
– If you are mounting the bracket to a pipe, assemble as shown in
Figure C-3. Slide the two V-bolts over the pipe, and through the mounting
bracket slots; then place the provided four washers and four nuts over the
V-bolts, against the mounting bracket. Leave the V-bolts loose enough to
allow for final adjustments.
