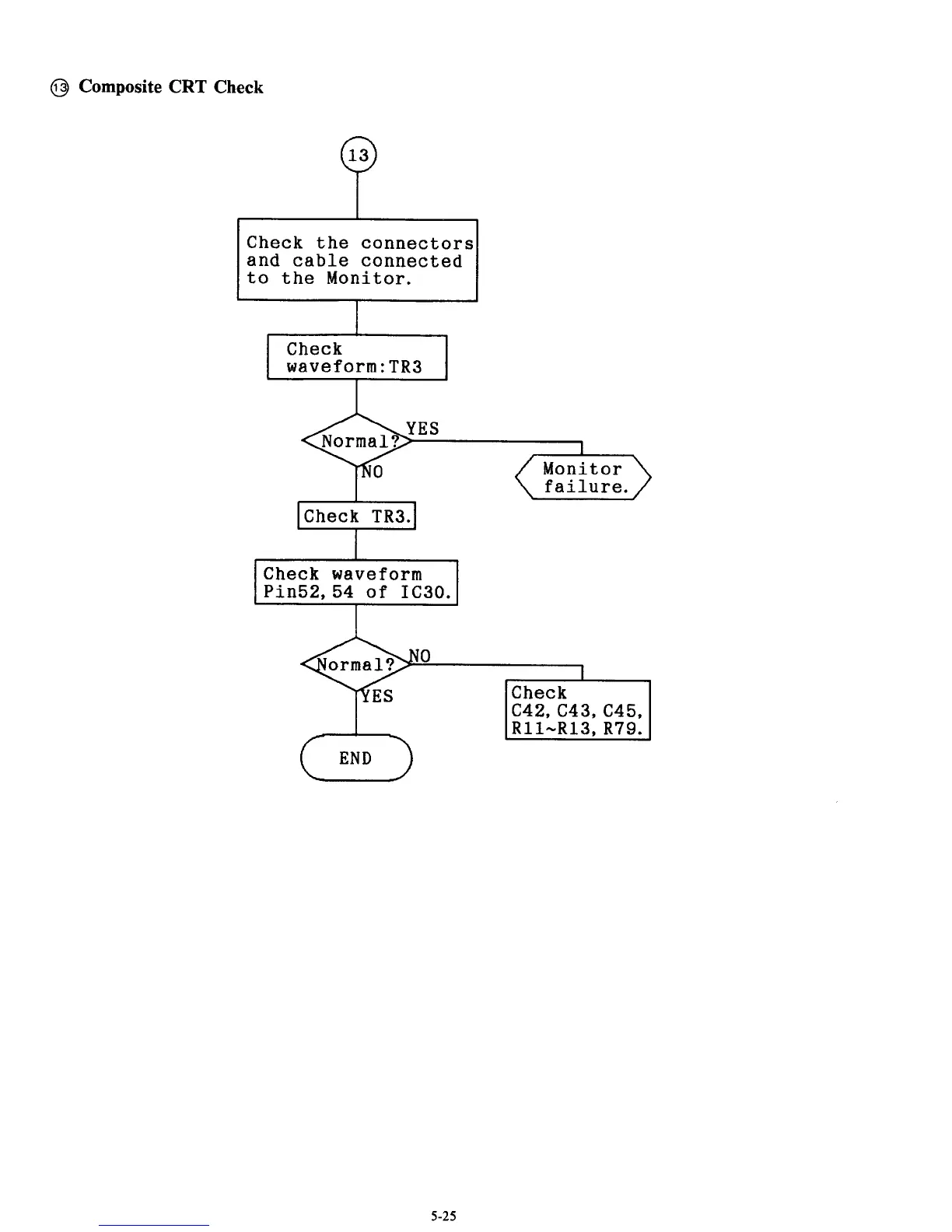

Tandy 1400LT - Composite CRT Check

To Next Page

To Previous Page

Composite

CRT

Check

C42, C43, C45,

Rll-R13,

R79.

Check the connectors

and cable connected

to the Monitor.

Monitor

failure.

Check

TR3.

Check waveform

IPin52,54 of

5-25
