Tandy 1400LT - Fdd; Power Switch Cord Removal; FDD Removal

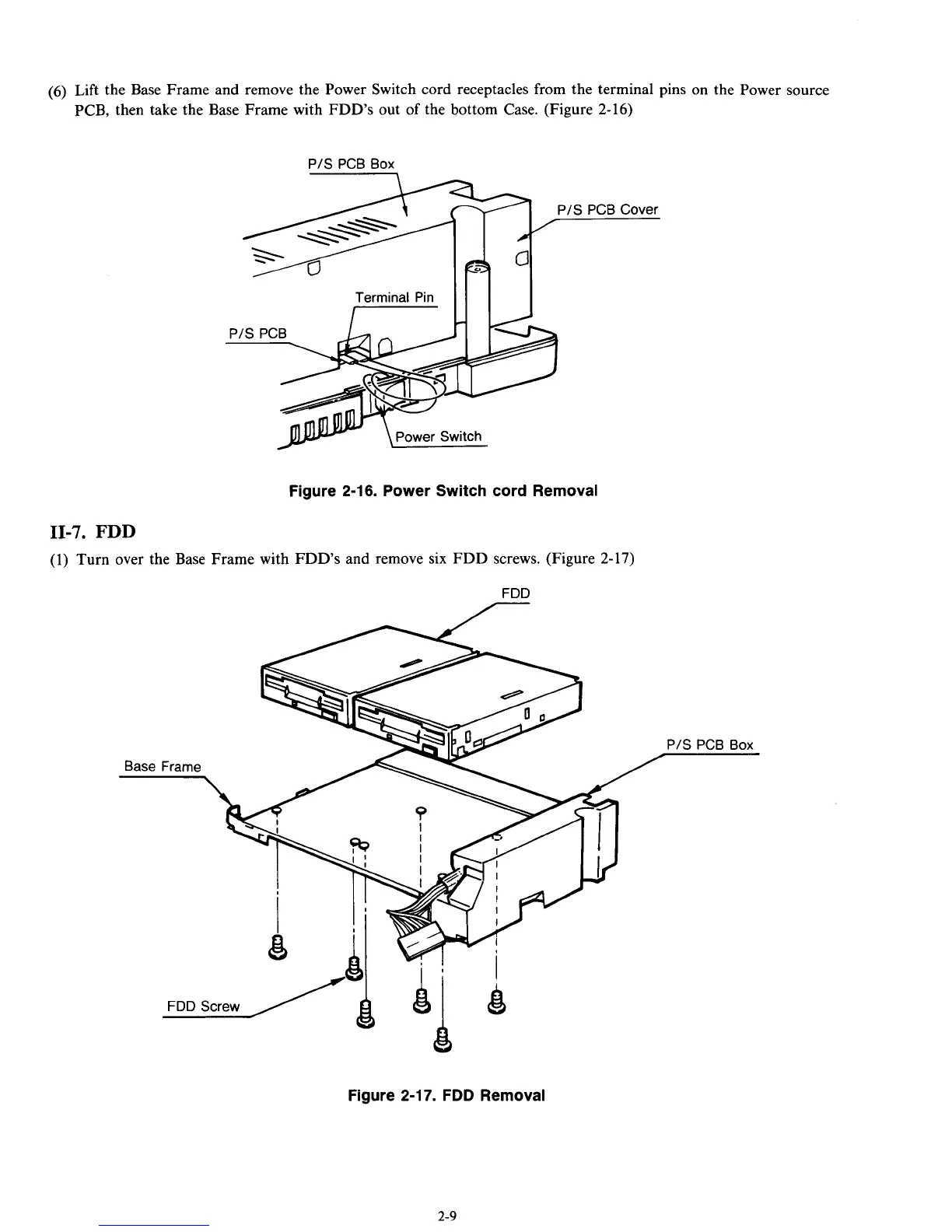

(6) Lift the Base Frame and remove the Power Switch cord receptacles from the terminal pins on the Power source
PCB, then take the Base Frame with FDD’s out of the bottom Case. (Figure 2-16)
PIS PCB Box
%- PIS PCB Cover
Ill I
Terminal Pin
Figure 2-16. Power Switch cord Removal
11-7. FDD
(1) Turn over the Base Frame with FDD’s and remove six FDD screws. (Figure 2- 17)
FDD
Figure 2-17. FDD Removal
