Tandy 1400LT - Top Cover Removal

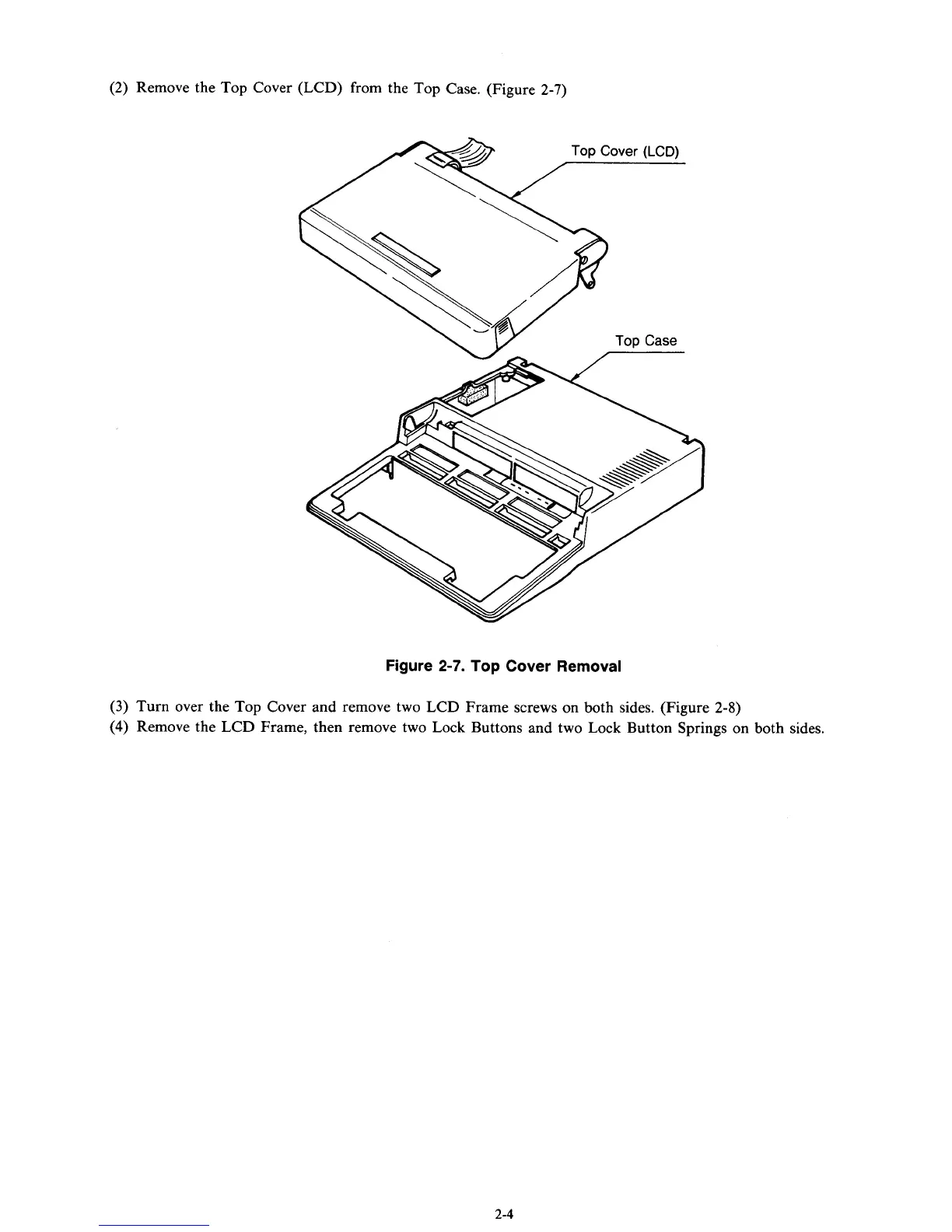

(2) Remove the Top Cover (LCD) from the Top Case. (Figure 2-7)
Top Cover (LCD)
Figure 2-7. Top Cover Removal
(3) Turn over the Top Cover and remove two LCD Frame screws on both sides. (Figure 2-8)
(4) Remove the LCD Frame, then remove two Lock Buttons and two Lock Button Springs on both sides.
2-4
