3. Physical Interface
CABLE CONNECTIONS
The electrical interface between the FDD and the host system is via two connectors. The first connector, CN-1,
provides the signal interface, and the second connector, CN-2, provides the DC power. Figure C-14 shows the
diagram
of cable connections.
Signal Cable
-T---- I
+z+
Drive 0
I
PI
CN I
Last Drive
CN 2
P2
I
I
Power Cable

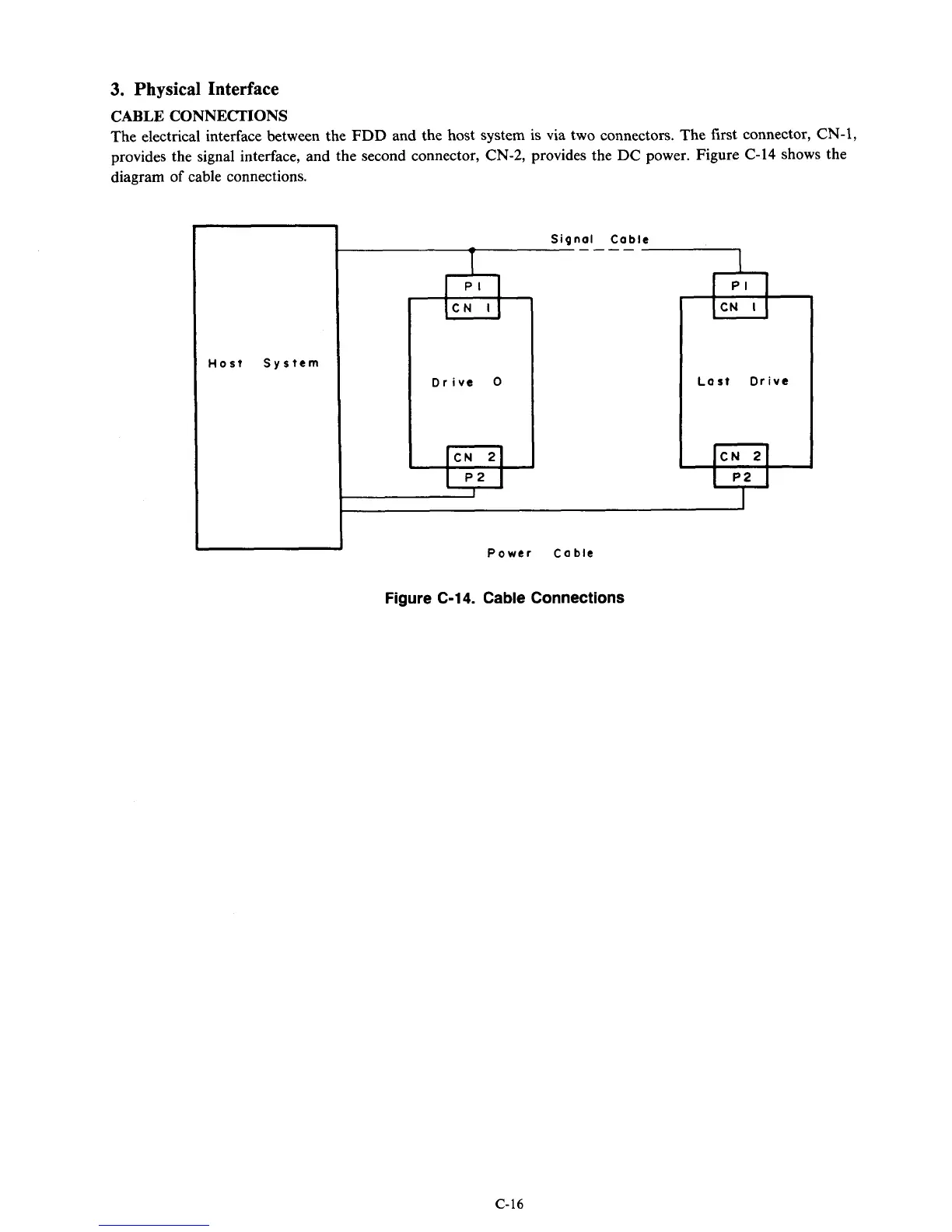

Figure C-14. Cable Connections
C-16
