REMARK:
Replacement
of
the Battery Pack
(1)
Remove the Battery Cover by sliding
it
outward and take the Battery Pack out
of
the unit.
(2)
Remove the connector and replace the Battery Pack. Stuff the cords between the Battery Pack and the Rear
Panel
so
that they do not ride on the Battery Pack.
Battery
Pack
Unit

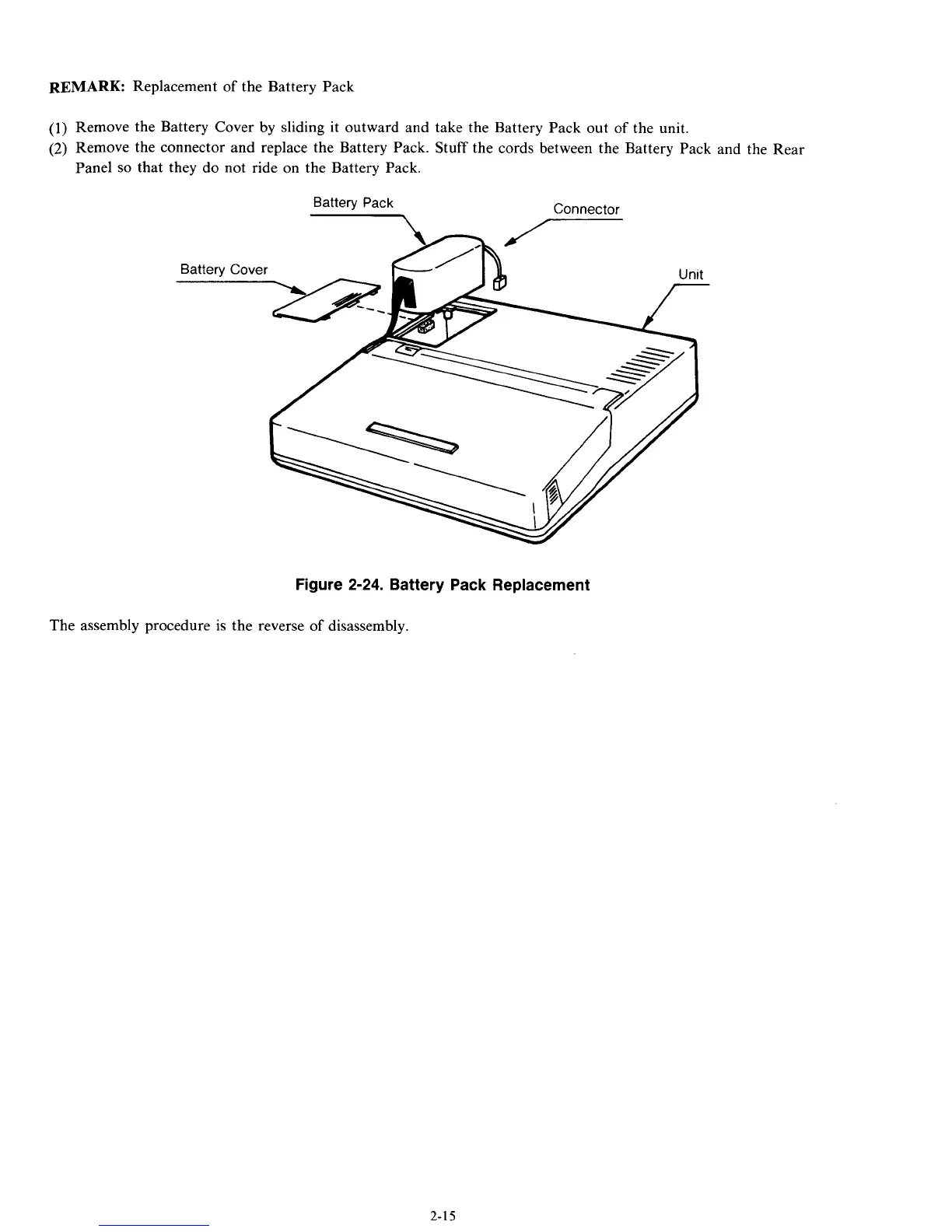

Figure 2-24. Battery Pack Replacement
The assembly procedure is the reverse
of
disassembly.
2-15
